Stop Lamp Switch

  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.
    STOP LAMP SWITCH CONTINUITY

    Condition Continuity
    Brake pedal: Fully released Should exist.
    Brake pedal: Slightly depressed Should not exist.

    If NG, adjust stop lamp switch installation, refer to "BRAKE PEDAL ", and perform step  3 again.

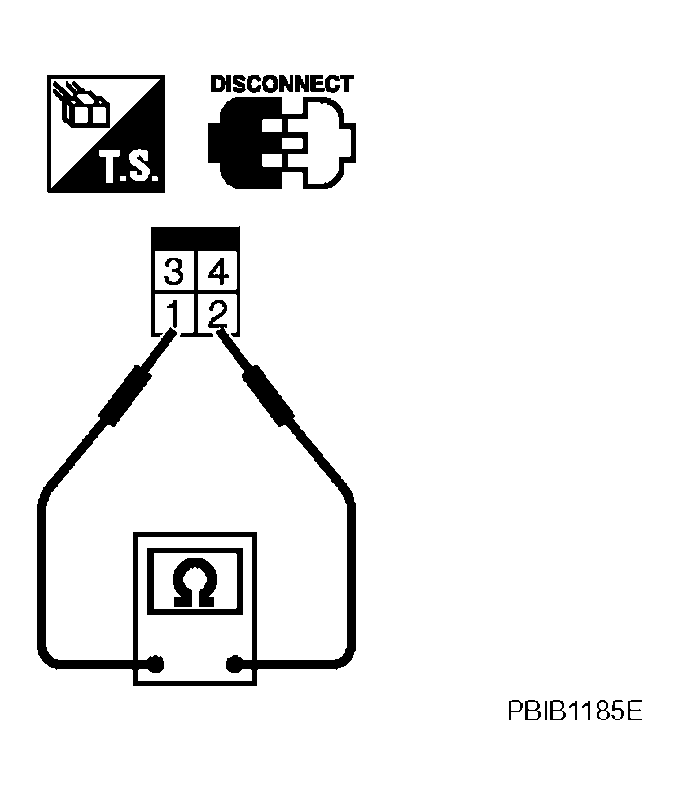

    Fig 1: Identifying Stop Lamp Switch Continuity
    G04074392Courtesy of NISSAN MOTOR CO., U.S.A.
