Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number (Kent-Moore No.) Tool name		Description

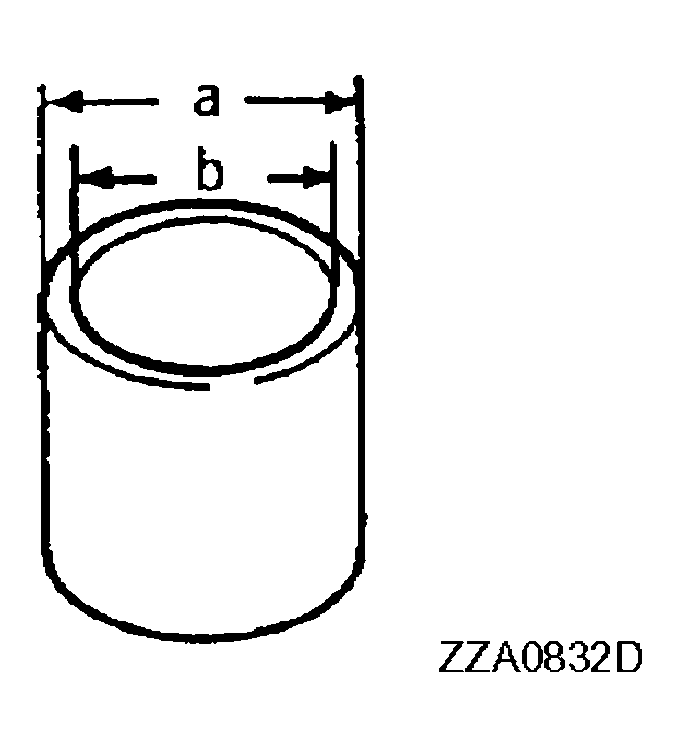

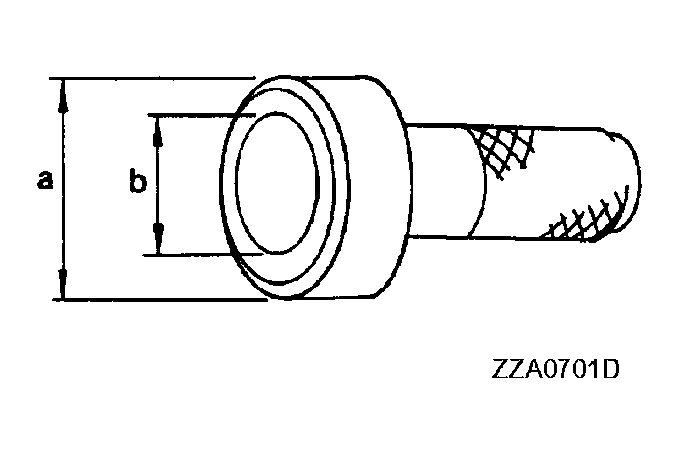

ST30720000 (J 25405) Drift a: 77 mm (3.03 in) dia. b: 55.5 mm (2.19 in) dia.		Installing rear sensor rotor
ST27863000 ( - ) Drift a: 74.5 mm (2.93 in) dia. b: 62.5 mm (2.46 in) dia.
KV40104710 ( - ) Drift a: 76.3 mm (3.00 in) dia. b: 67.9 mm (2.67 in) dia.
