Component Inspection: Condenser

  1. Turn ignition switch OFF.
  2. Disconnect condenser harness connector.
  3. Check resistance between condenser terminals 1 and 2.

    Resistance: Above 1 MΩ [at 25°C (77°F)]

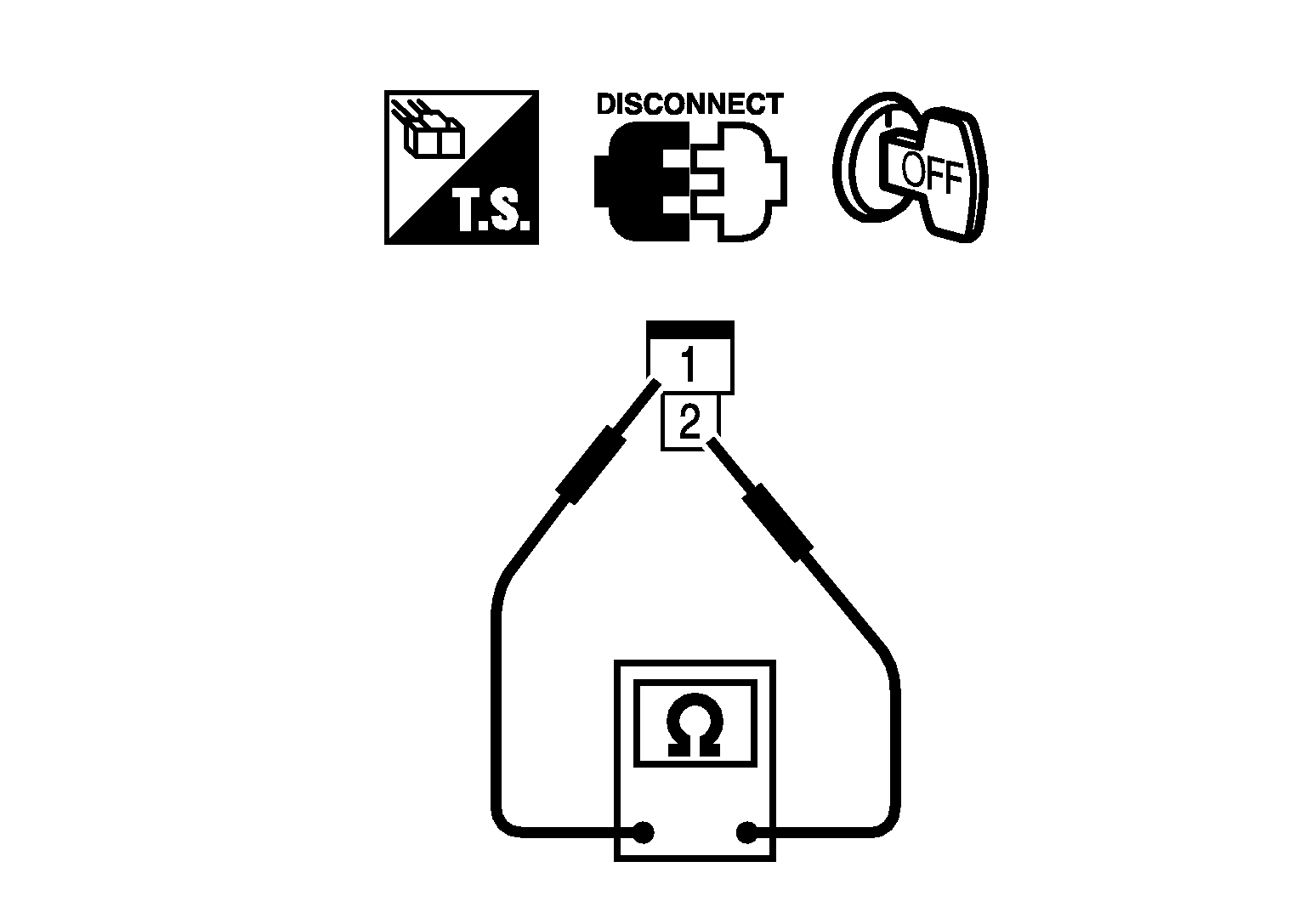

    Fig 1: Identifying Resistance Between Connector Terminals
    G04075318Courtesy of NISSAN MOTOR CO., U.S.A.
