Method B

  1. Remove ignition coil No. 6.
  2. Connect ignition coil No. 6 (1) and spark plug No. 6 with suitable high-tension wire A as shown, and attach timing light clamp B to this wire.

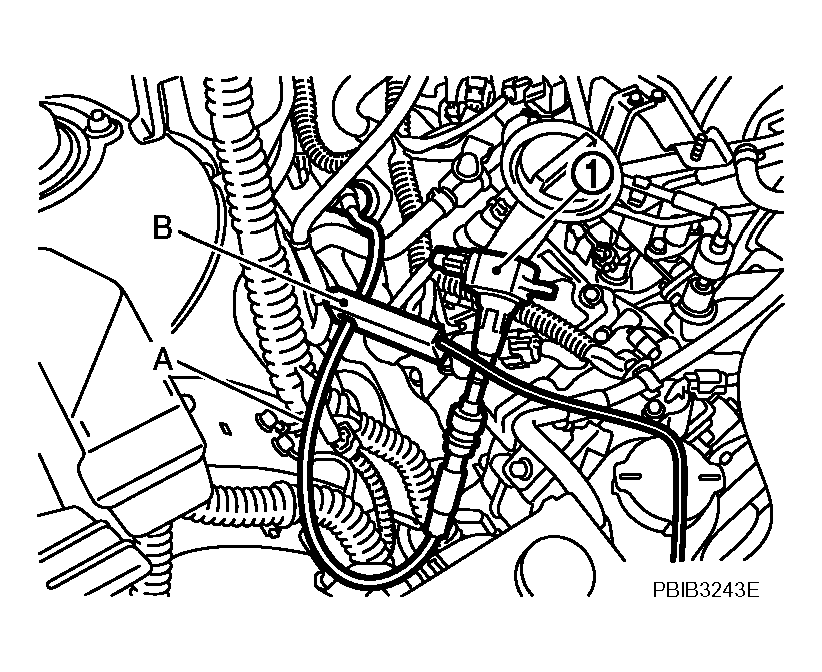

    Fig 1: Attaching Timing Light Clamp To Wire
    G04074545Courtesy of NISSAN MOTOR CO., U.S.A.

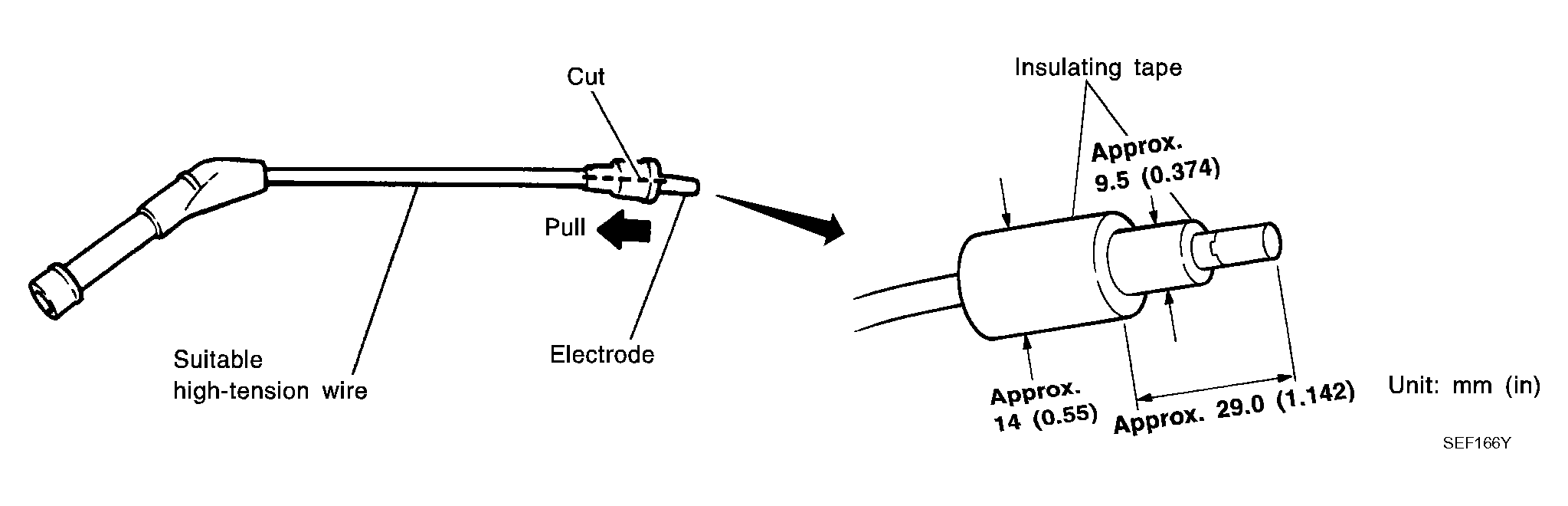

    Fig 2: Identifying Timing Light
    G04074546Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

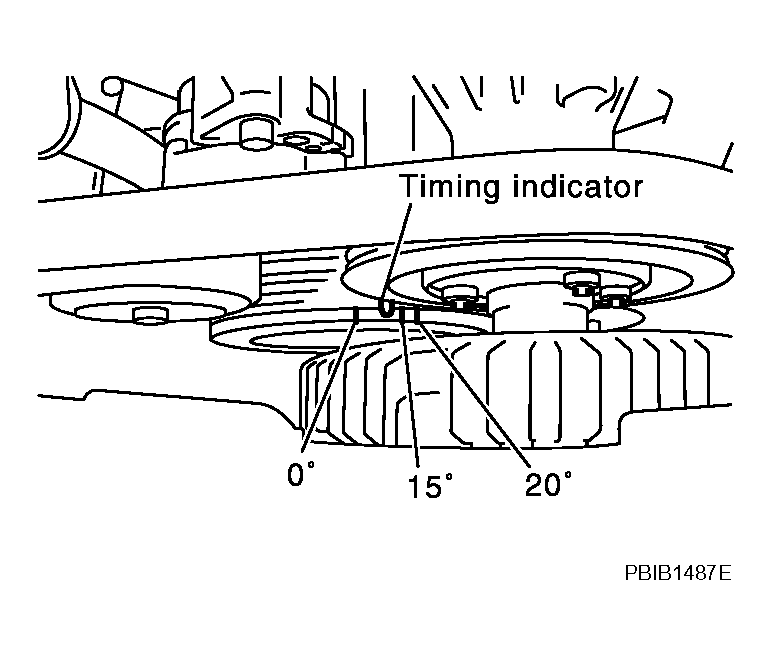

    Fig 3: Identifying Ignition Timing
    G04074547Courtesy of NISSAN MOTOR CO., U.S.A.
