Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number (Kent-Moore No.) Tool name	Description
EG17650301 (J-33984-A) Radiator cap tester adapter Courtesy of NISSAN MOTOR CO., U.S.A.	Adapting radiator cap tester to radiator cap and radiator filler neck a: 28 (1.10) dia.  b: 31.4 (1.236) dia.  c: 41.3 (1.626) dia.  Unit: mm (in)

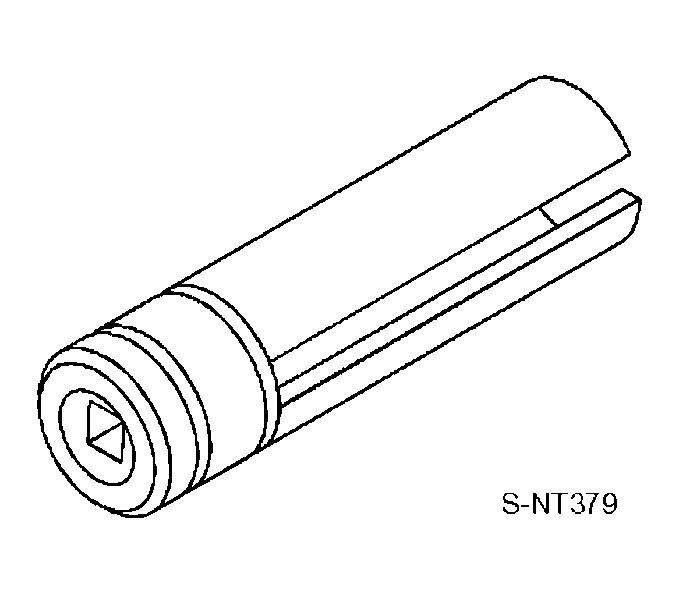

KV10117100 (J-36471-A) Heated oxygen sensor wrench Courtesy of NISSAN MOTOR CO., U.S.A.	Loosening or tightening heated oxygen sensor 2 with 22 mm (0.87 in) hexagon nut
KV10114400 (J-38365) Heated oxygen sensor wrench Courtesy of NISSAN MOTOR CO., U.S.A.	Loosening or tightening air fuel ratio sensor 1 a: 22 mm (0.87 in)

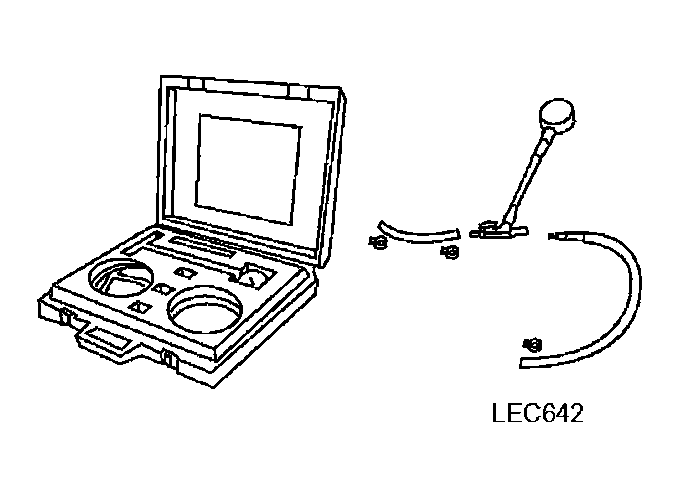

(J-44321) Fuel pressure gauge kit Courtesy of NISSAN MOTOR CO., U.S.A.	Checking fuel pressure

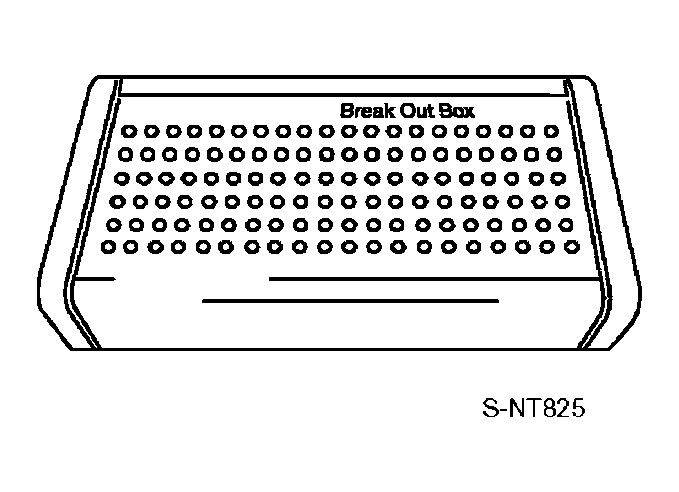

KV109E0010 (J-46209) Break-out box Courtesy of NISSAN MOTOR CO., U.S.A.	Measuring the ECM signals with a circuit tester

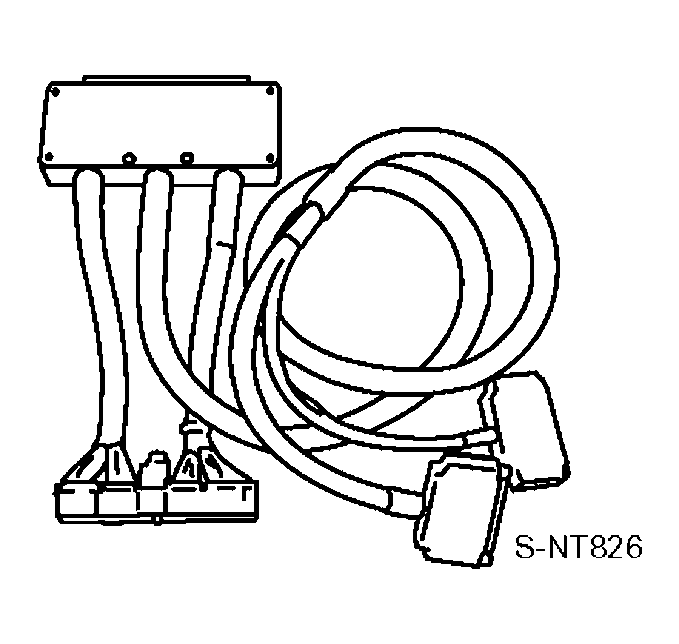

KV109E0080 (J-45819) Y-cable adapter Courtesy of NISSAN MOTOR CO., U.S.A.	Measuring the ECM signals with a circuit tester
