Engine Control Component Parts Location

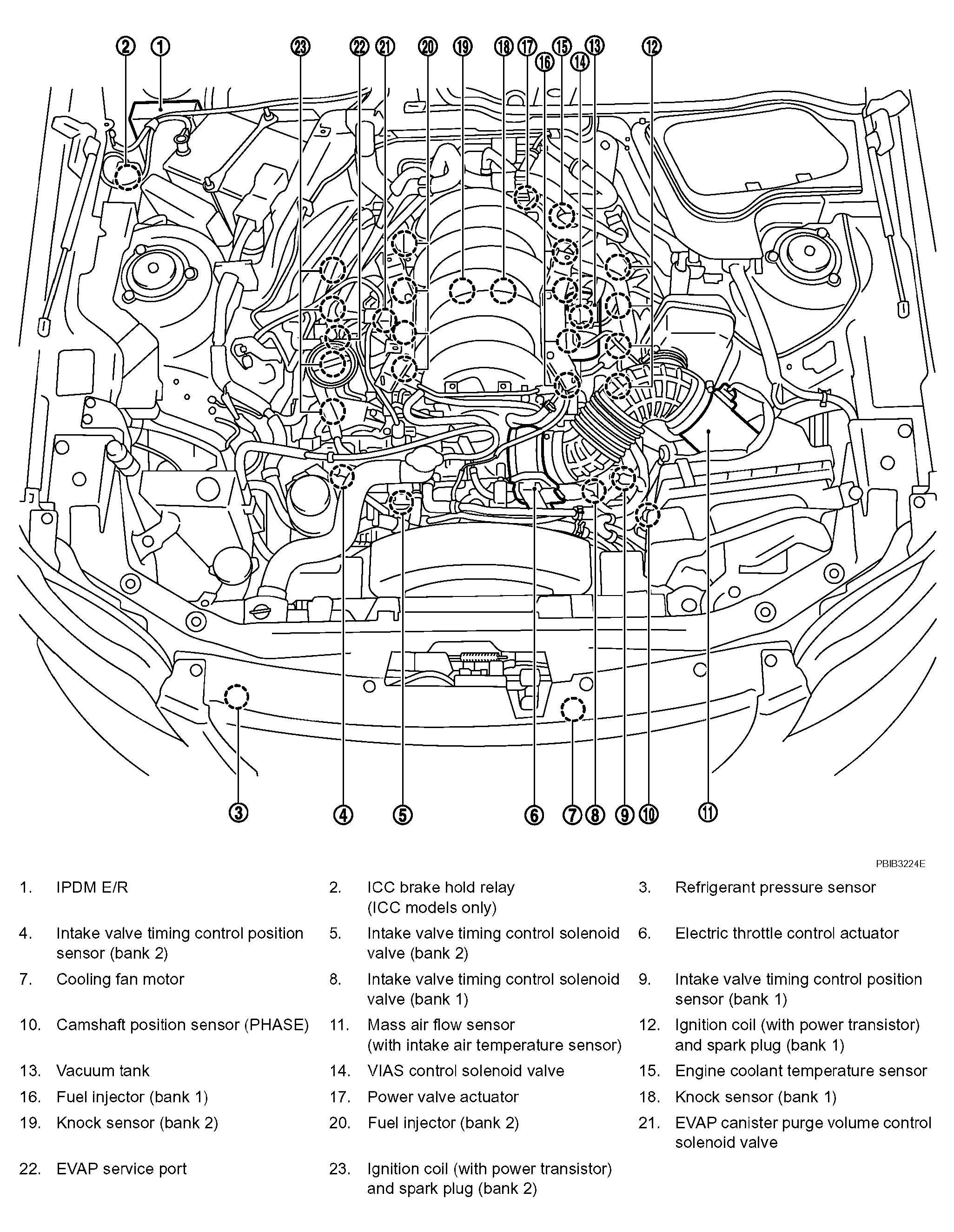

Fig 1: Identifying Engine Control Component Parts Location (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

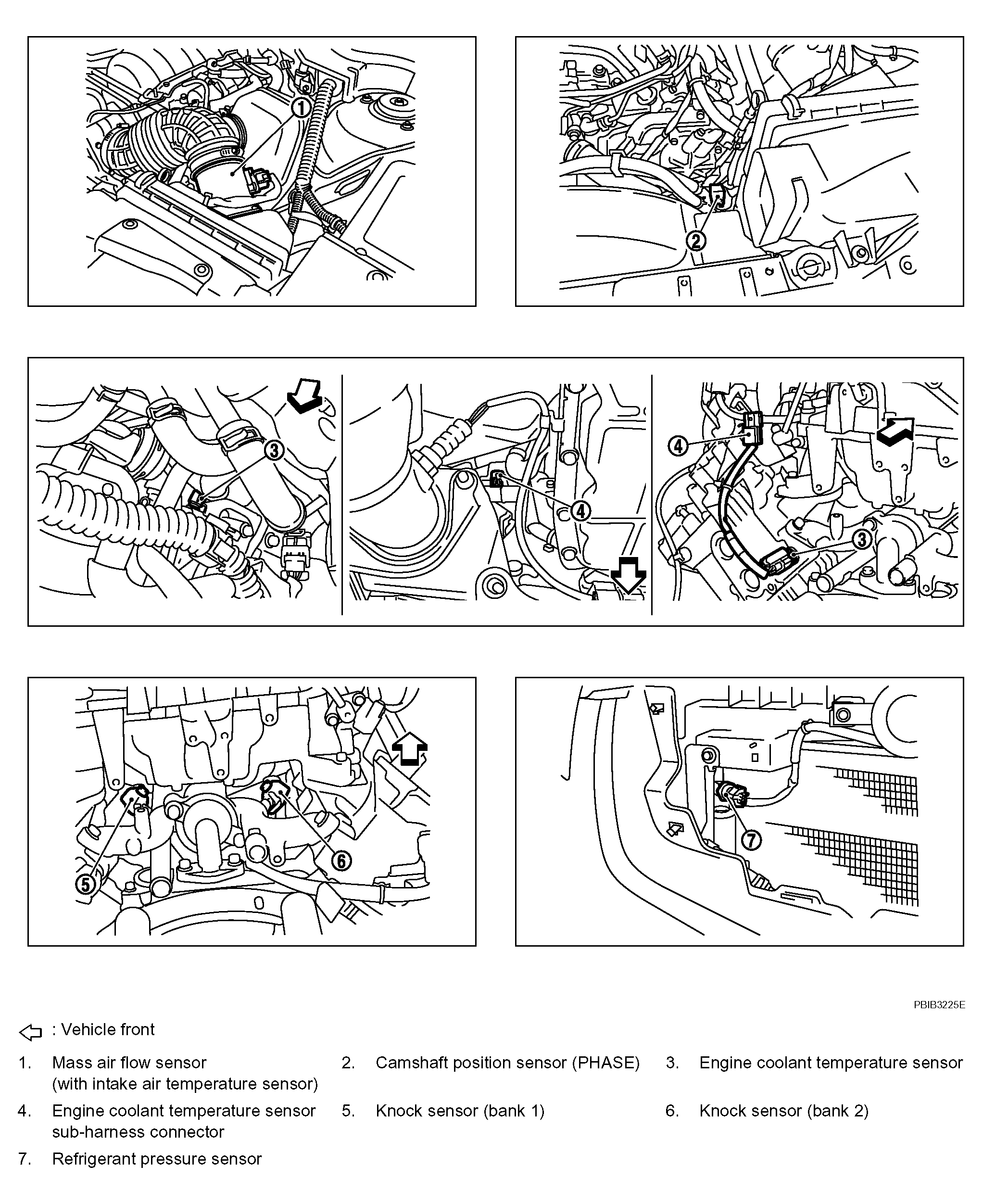

Fig 2: Identifying Engine Control Component Parts Location (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

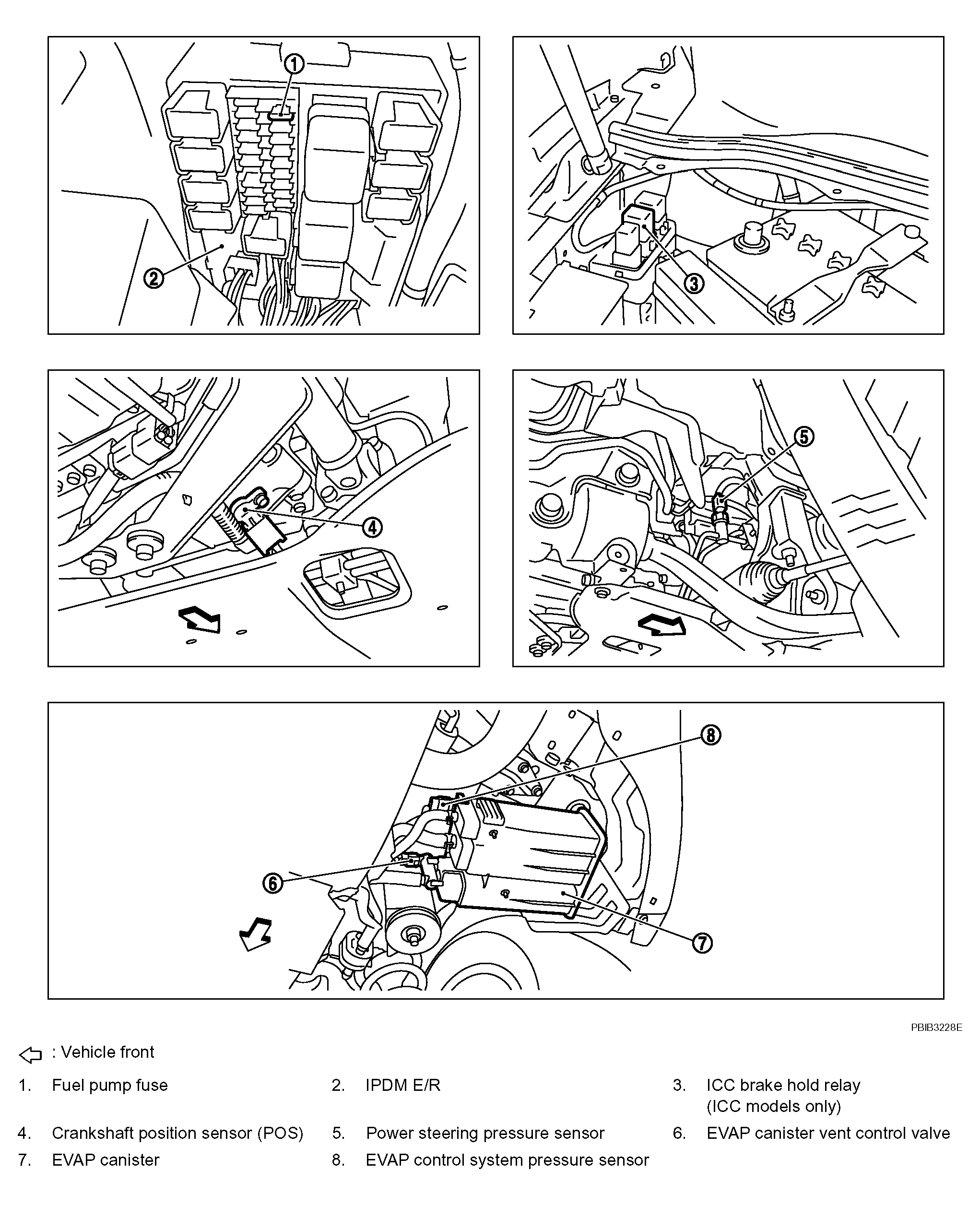

Fig 3: Identifying Engine Control Component Parts Location (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

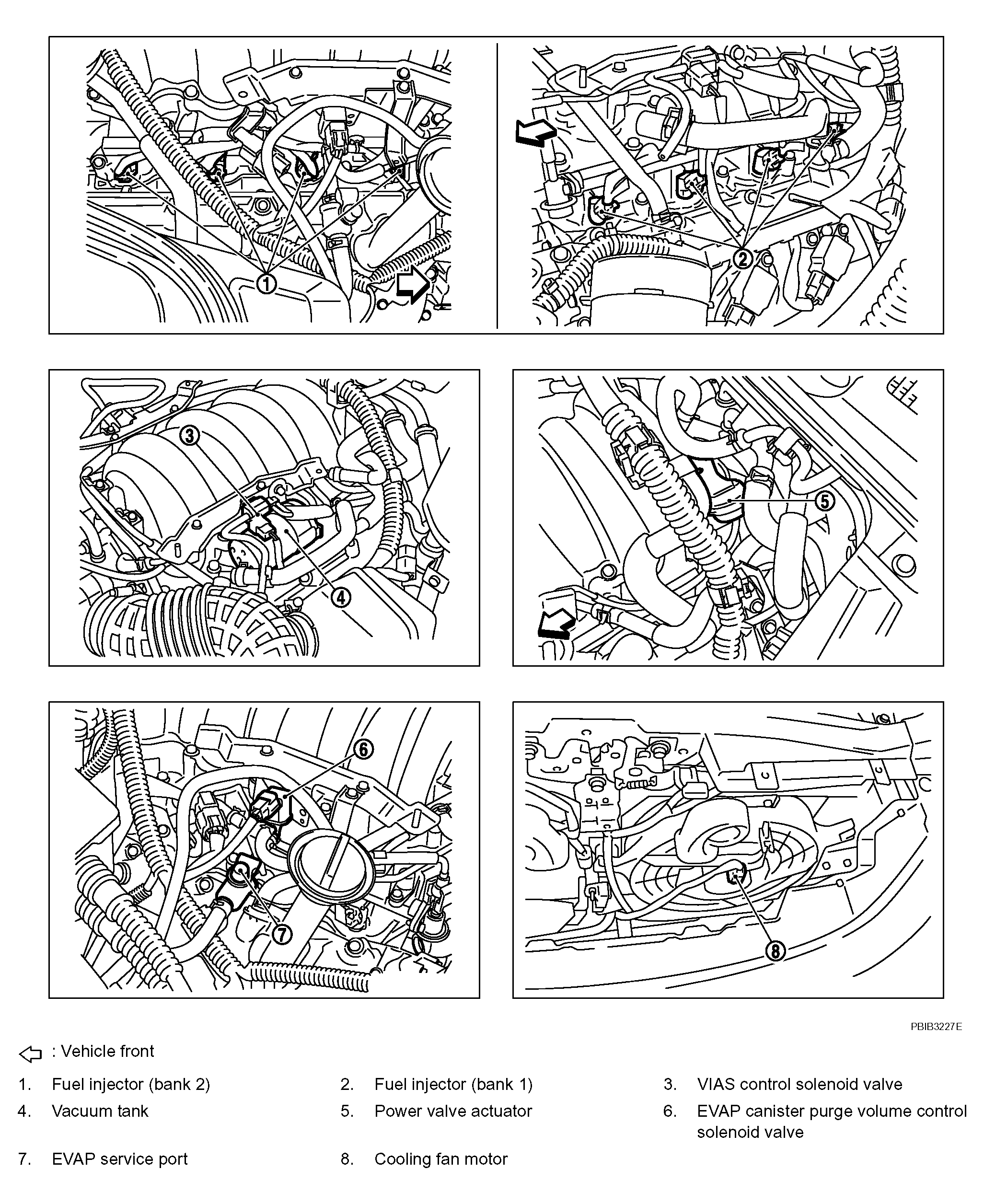

Fig 4: Identifying Engine Control Component Parts Location (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

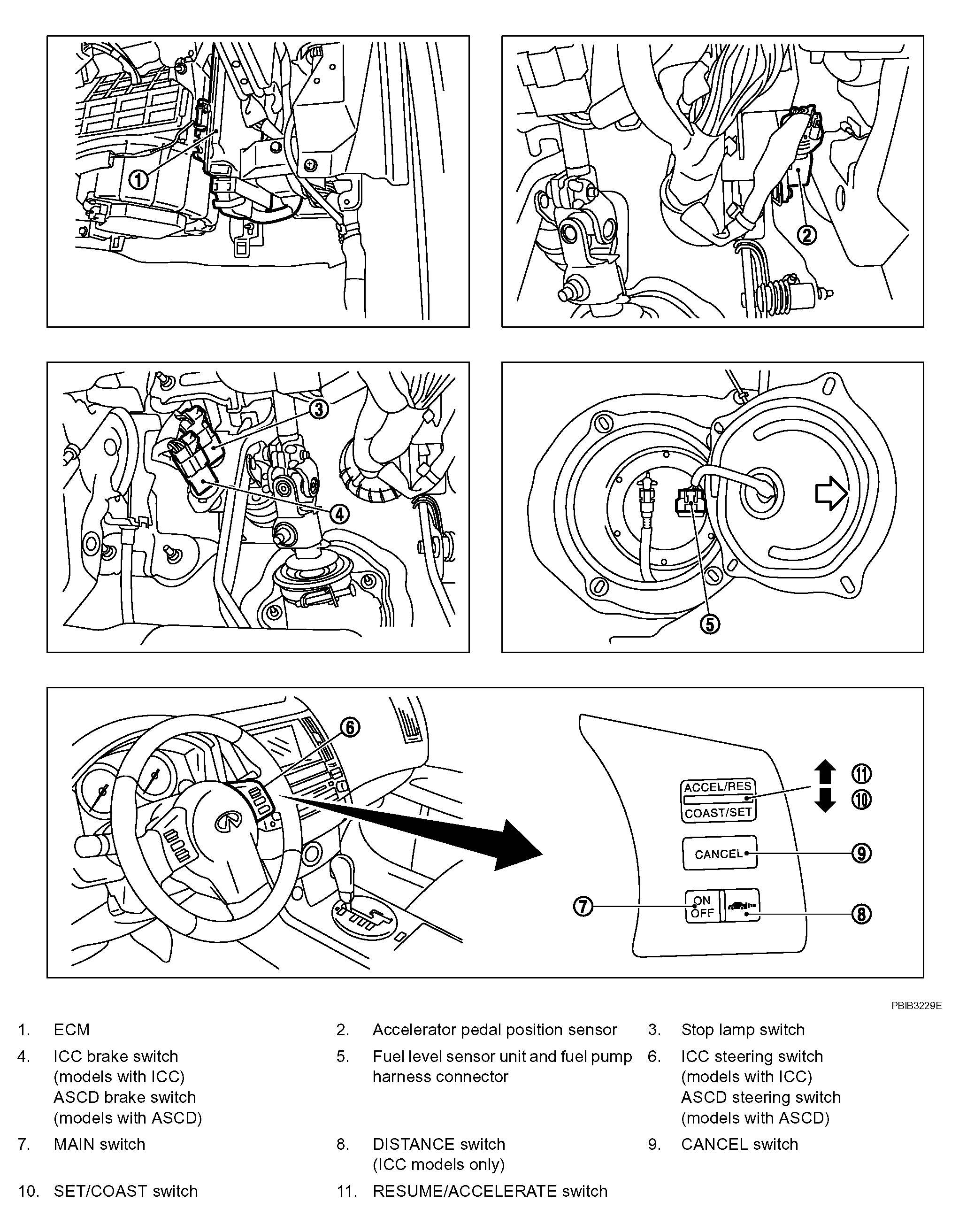

Fig 5: Identifying Engine Control Component Parts Location (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

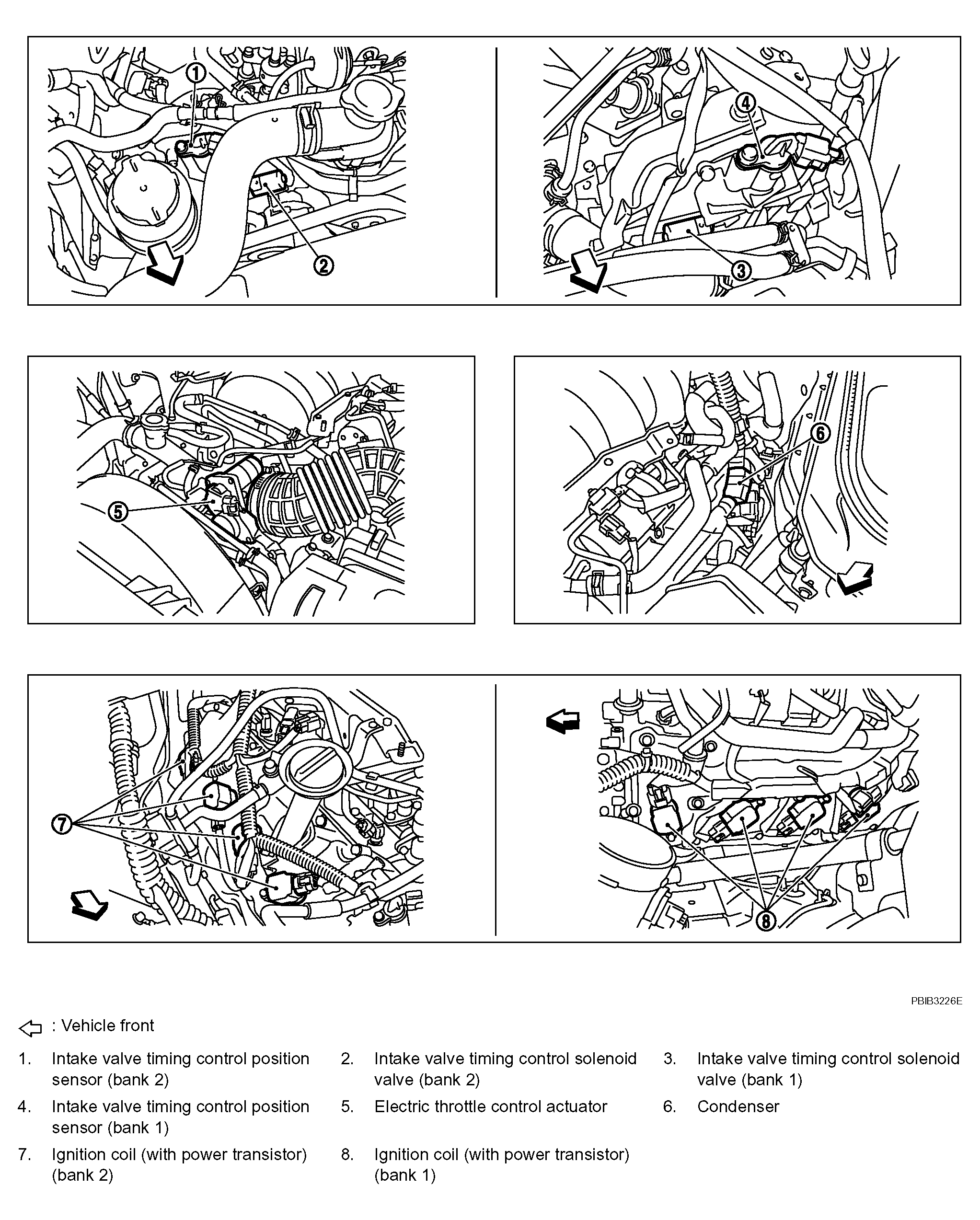

Fig 6: Identifying Engine Control System

Courtesy of NISSAN MOTOR CO., U.S.A.

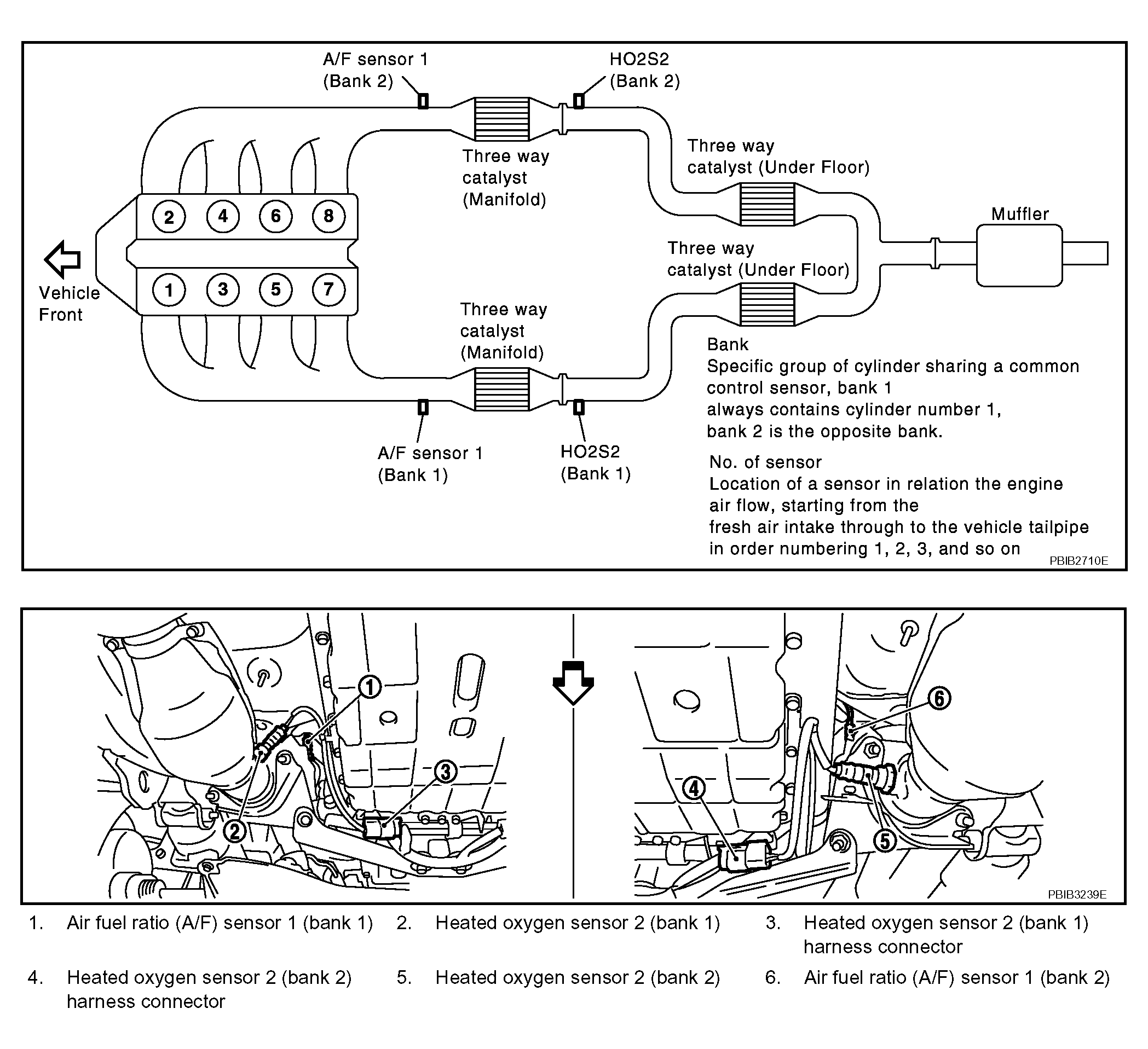

Fig 7: Identifying Heated Oxygen Sensor And Air Fuel Ratio (A/F) Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
