Snow Mode Switch: Wiring Diagram

For PG, go to SYSTEM WIRING DIAGRAMS .

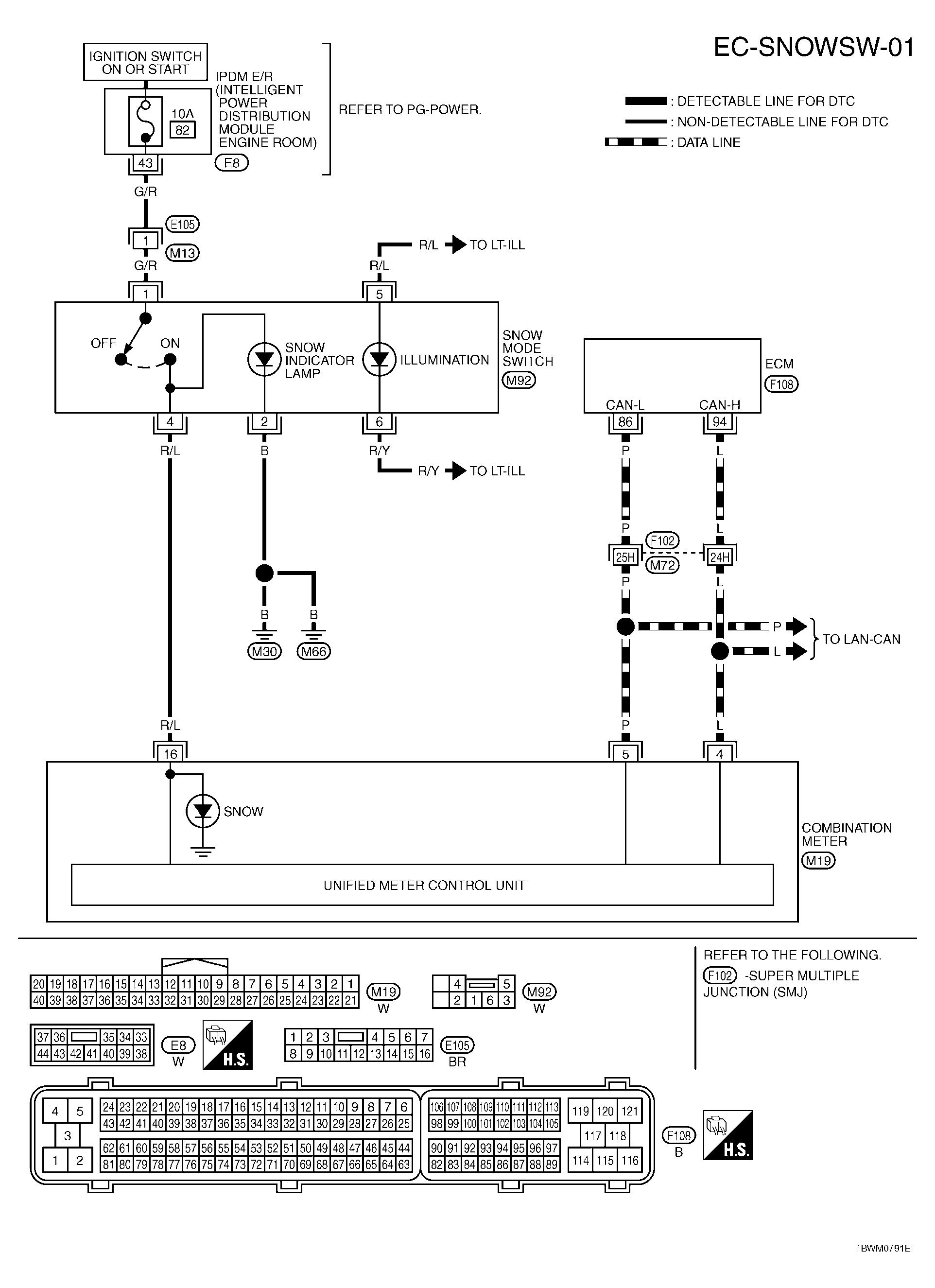

Fig 1: EC-SNOW/SW-01 - Wiring Diagram
G04120340Courtesy of NISSAN MOTOR CO., U.S.A.
