Commercial Service Tools

COMMERCIAL SERVICE TOOLS DESCRIPTIONS

Tool name (Kent-Moore No.)		Description

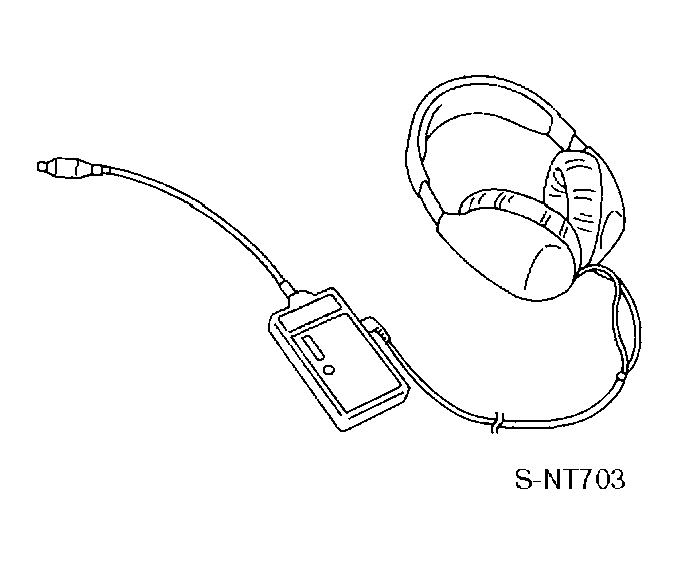

Leak detector i.e.: (J-41416)	Courtesy of NISSAN MOTOR CO., U.S.A.	Locating the EVAP leak

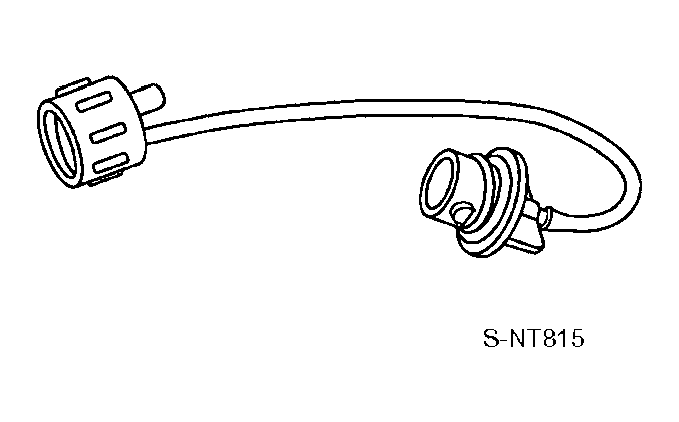

EVAP service port adapter i.e.: (J-41413-OBD)	Courtesy of NISSAN MOTOR CO., U.S.A.	Applying positive pressure through EVAP service port

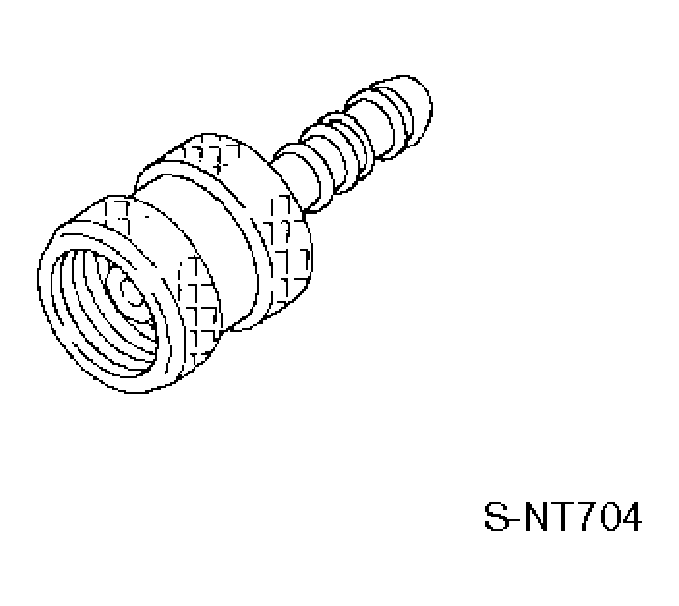

Fuel filler cap adapter i.e.: (MLR-8382)	Courtesy of NISSAN MOTOR CO., U.S.A.	Checking fuel tank vacuum relief valve opening pressure

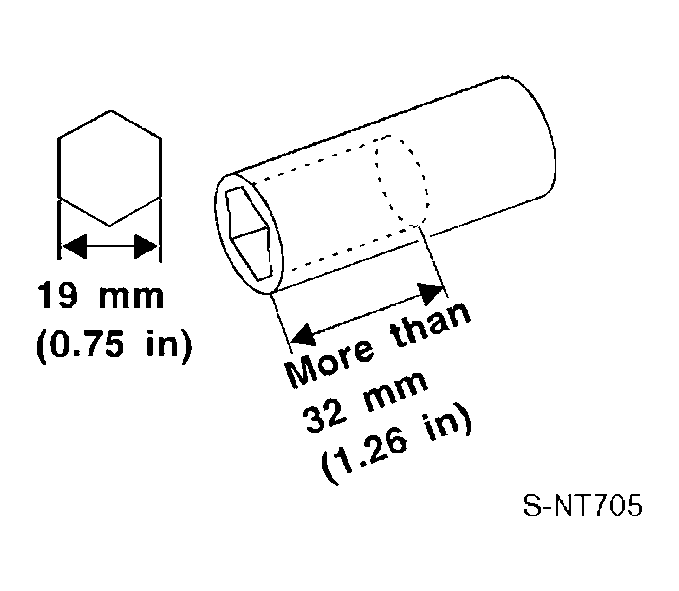

Socket wrench	Courtesy of NISSAN MOTOR CO., U.S.A.	Removing and installing engine coolant temperature sensor
Oxygen sensor thread cleaner i.e.: (J-43897-18) (J-43897-12)	Courtesy of NISSAN MOTOR CO., U.S.A.	Reconditioning the exhaust system threads before installing a new oxygen sensor. Use with anti-seize lubricant shown below. a: 18 mm diameter with pitch 1.5 mm for Zirconia Oxygen Sensor b: 12 mm diameter with pitch 1.25 mm for Titania Oxygen Sensor

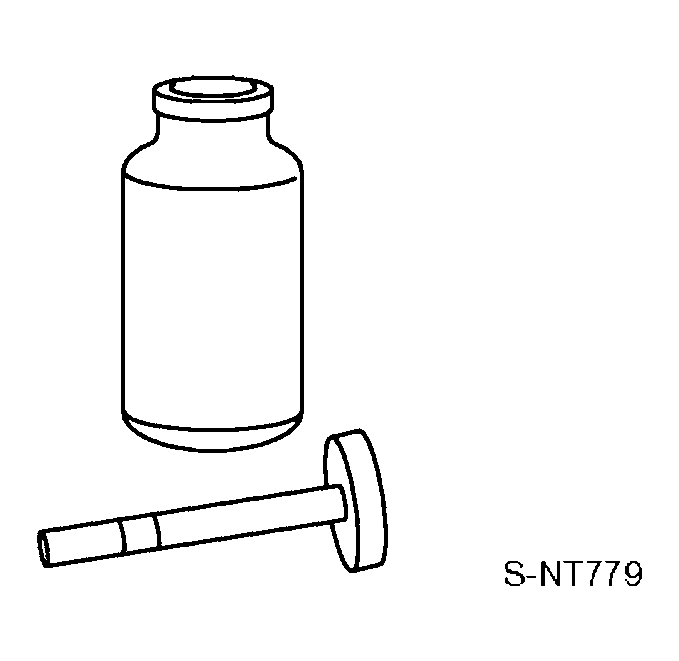

Anti-seize lubricant i.e.: (Permatex™ 133AR or equivalent meeting MIL specification MIL-A-907)	Courtesy of NISSAN MOTOR CO., U.S.A.	Lubricating oxygen sensor thread cleaning tool when reconditioning exhaust system threads.
