Method A

Attach timing light to loop wire as shown.

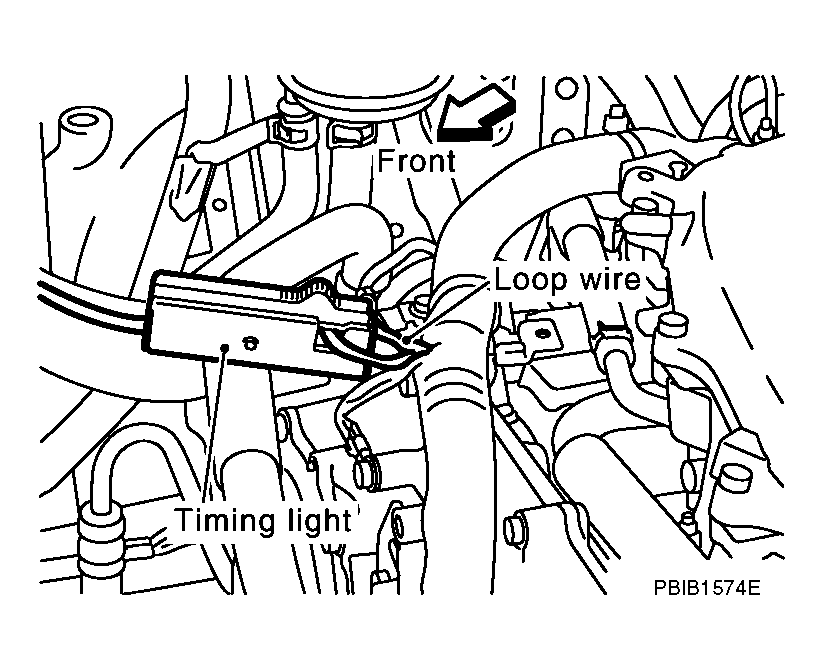

Fig 1: Attaching Timing Light To Loop Wire
Courtesy of NISSAN MOTOR CO., U.S.A.
Check ignition timing.

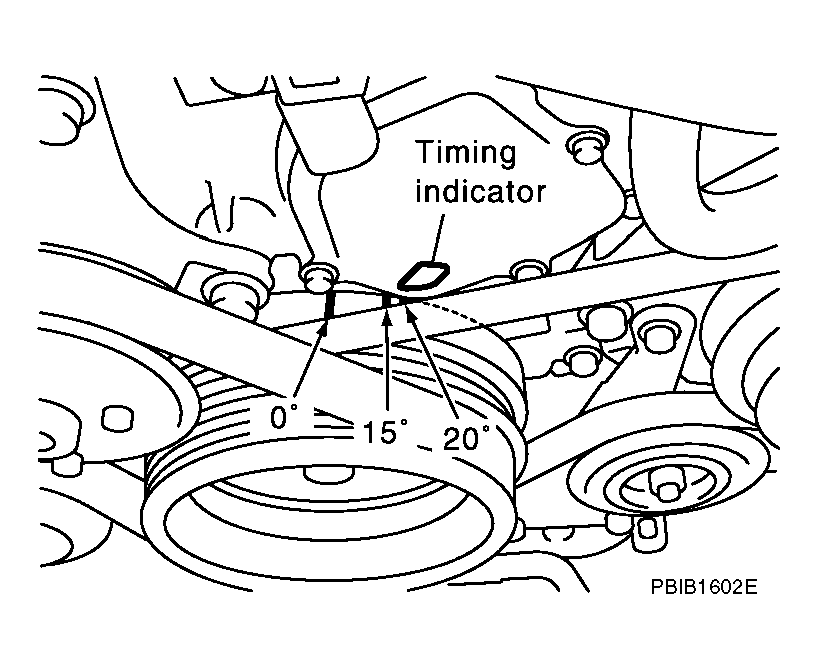

Fig 2: Identifying Ignition Timing
Courtesy of NISSAN MOTOR CO., U.S.A.
