Method B

  1. Remove No. 1 ignition coil.

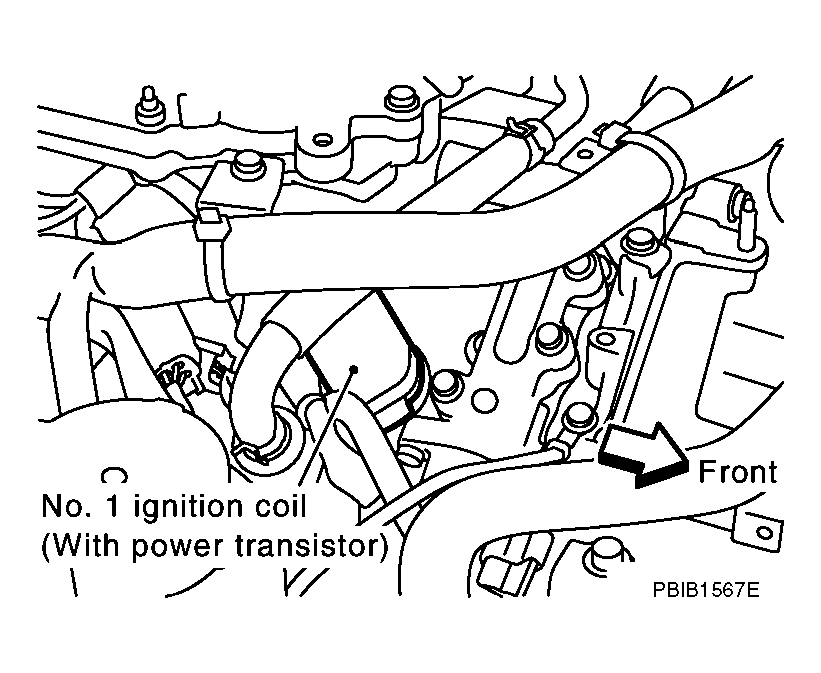

    Fig 1: Identifying No. 1 Ignition Coil
    G04138207Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

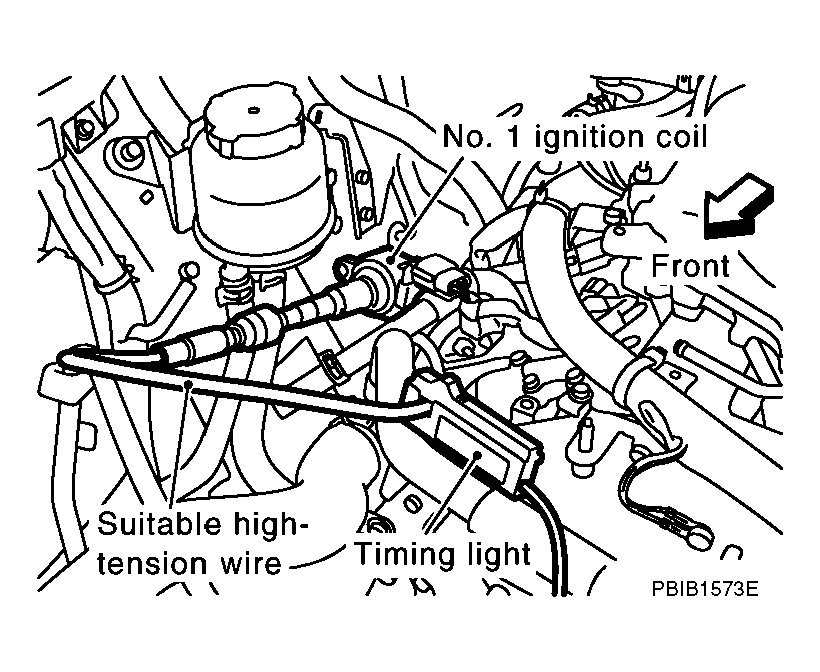

    Fig 2: Connecting No. 1 Ignition Coil And No. 1 Spark Plug With Suitable High-Tension Wire
    G04138208Courtesy of NISSAN MOTOR CO., U.S.A.

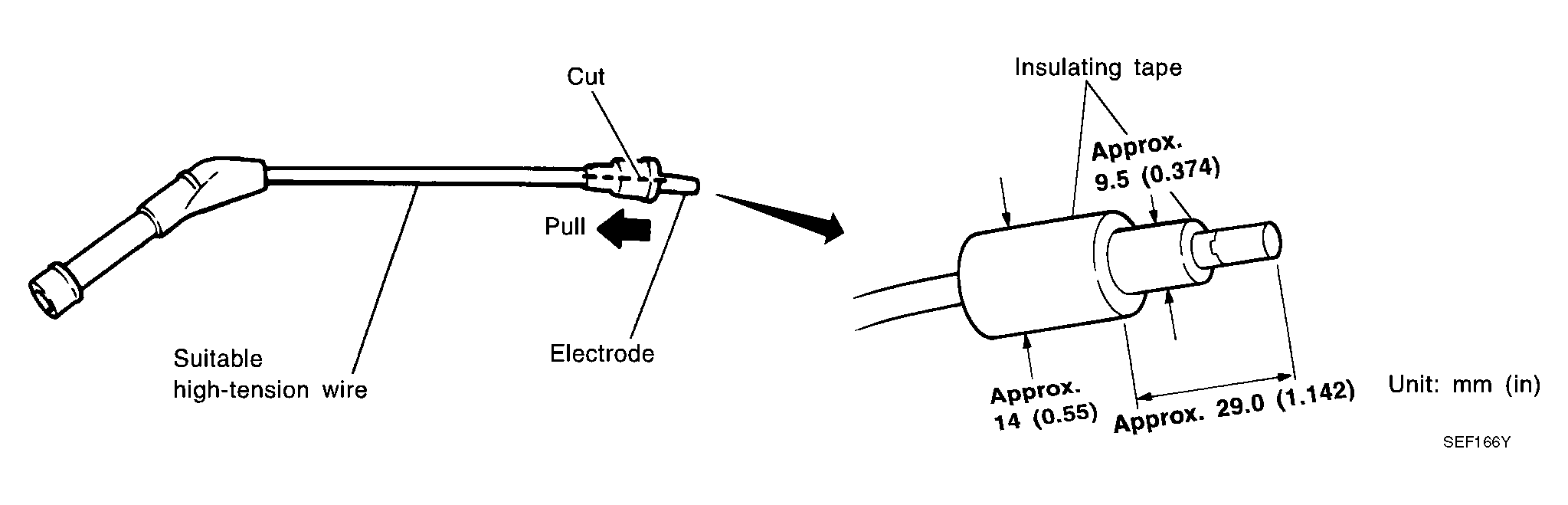

    Fig 3: Identifying Tension Wire
    G04138209Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

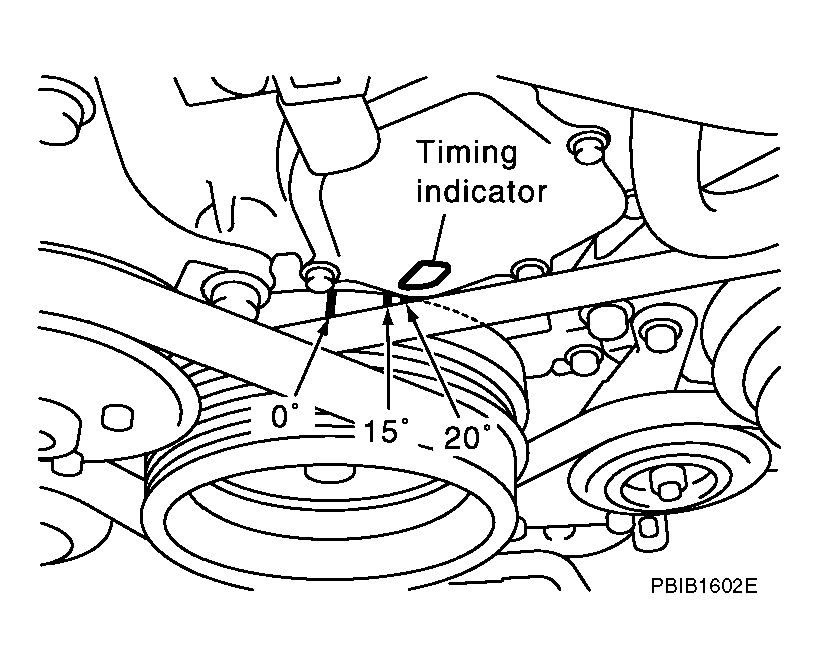

    Fig 4: Identifying Ignition Timing
    G04138210Courtesy of NISSAN MOTOR CO., U.S.A.
