Fuel Injector: Wiring Diagram

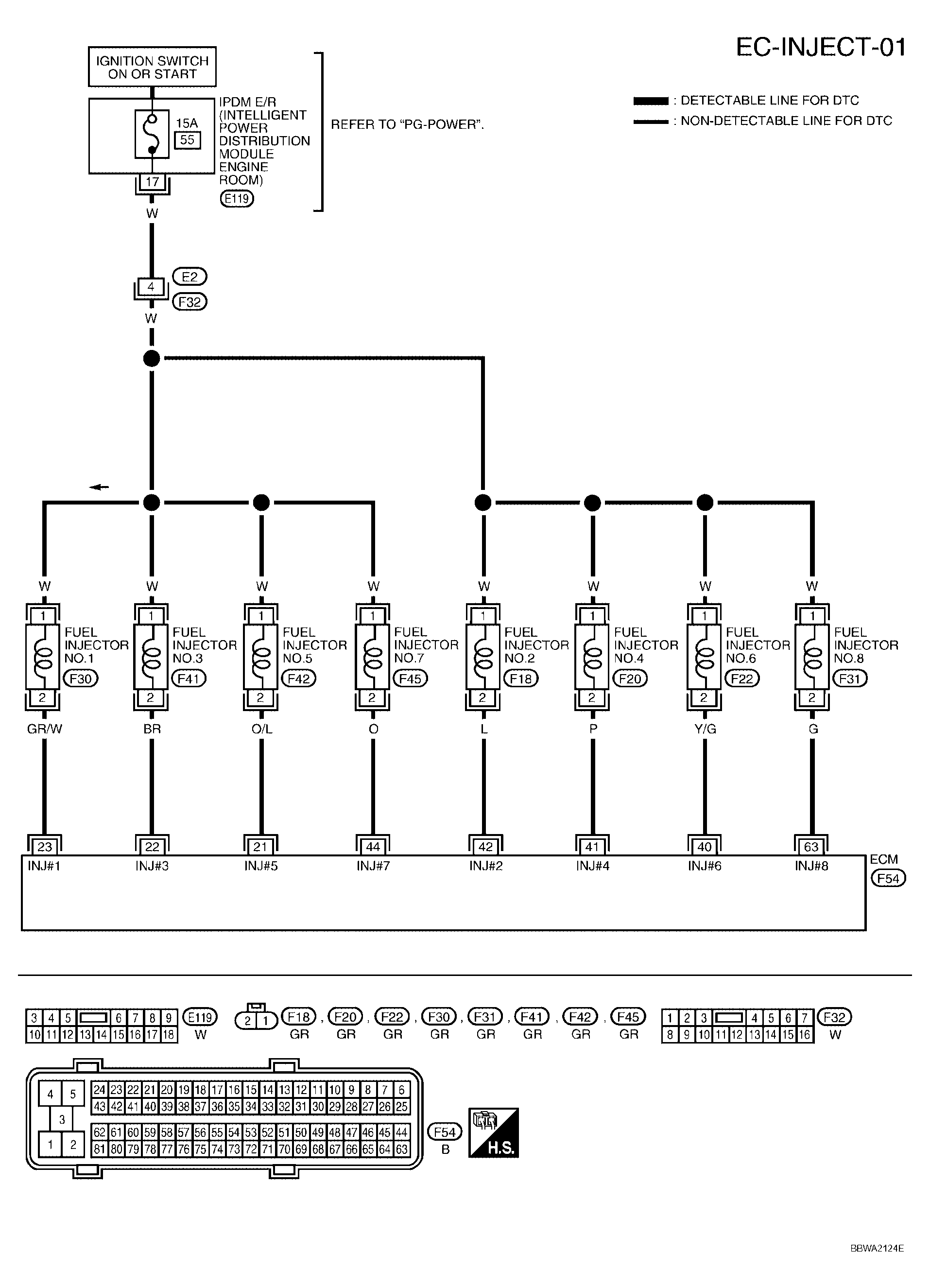

Fig 1: EC-INJECT-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

ECM SPECIFICATION DATA AND REFERENCE VALUE

TERMINAL NO.

WIRE COLOR

ITEM

CONDITION

DATA (DC Voltage)

21
22
23
40
41
42
44
63

O/L
BR
GR/W
Y/G
P
L
O
G

Fuel injector No. 5
Fuel injector No. 3
Fuel injector No. 1
Fuel injector No. 6
Fuel injector No. 4
Fuel injector No. 2
Fuel injector No. 7
Fuel injector No. 8

[Engine is running]

Warm-up condition

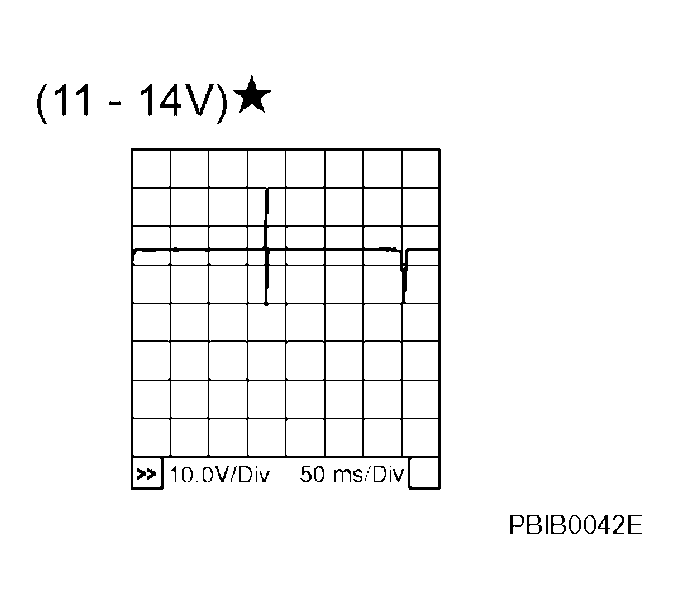

Idle speed
NOTE: The pulse cycle changes depending on rpm at idle.

BATTERY VOLTAGE (11 - 14V)⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

[Engine is running]

Warm-up condition

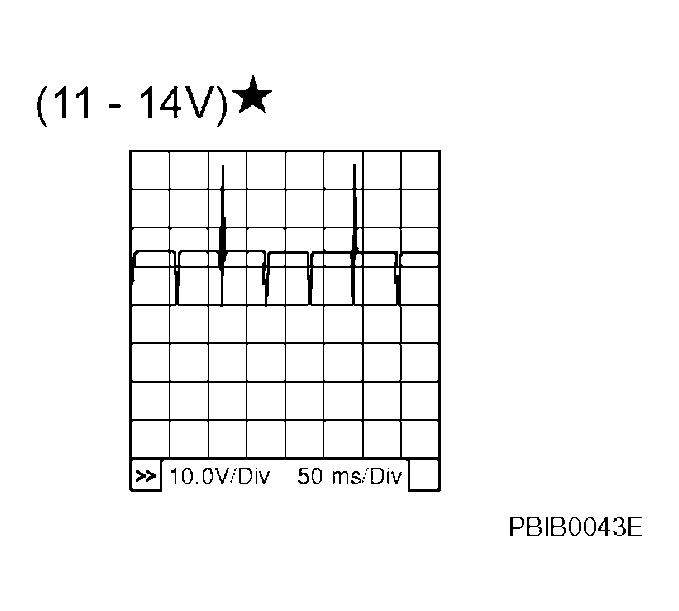

Engine speed: 2, 000 rpm

BATTERY VOLTAGE (11 - 14V)⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

⁽¹⁾	Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
