Engine Control Component Parts Location

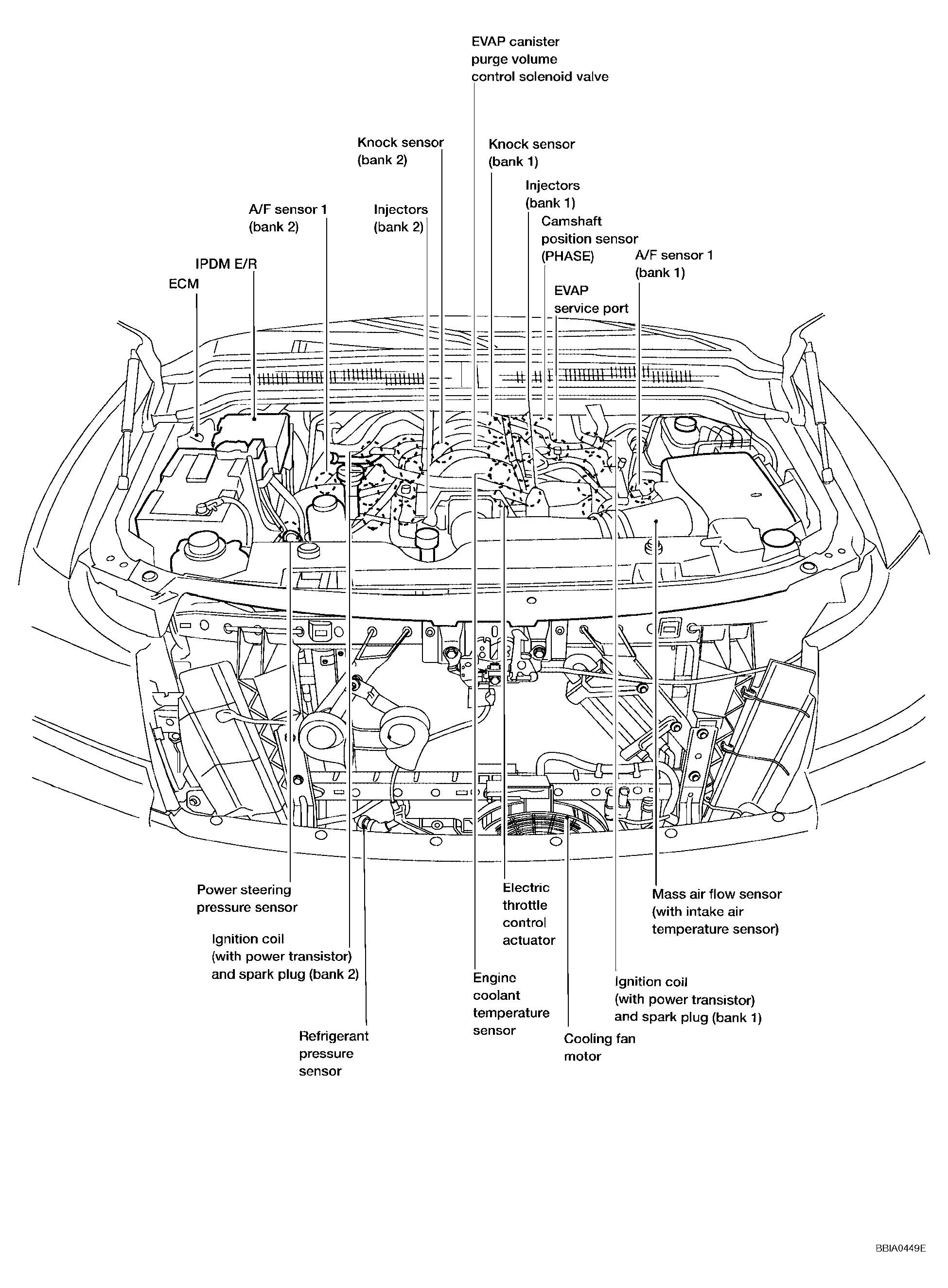

Fig 1: Identifying Engine Component Location (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Engine Component Location (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Engine Component Location (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Engine Component Location (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Engine Component Location (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Engine Component Location (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
