System - Basic Engine Control System

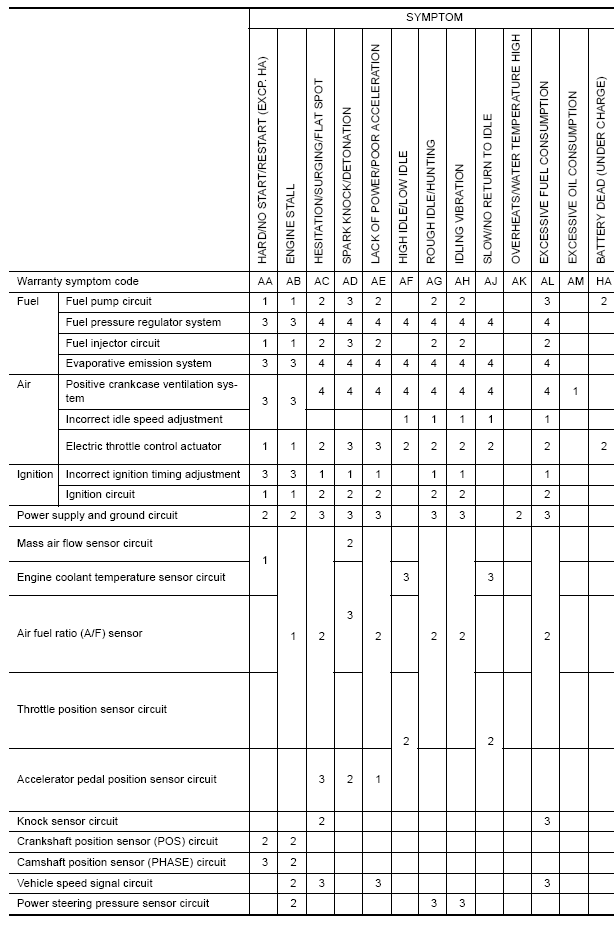

Fig 1: Symptom Matrix Chart - Basic Engine Control System (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

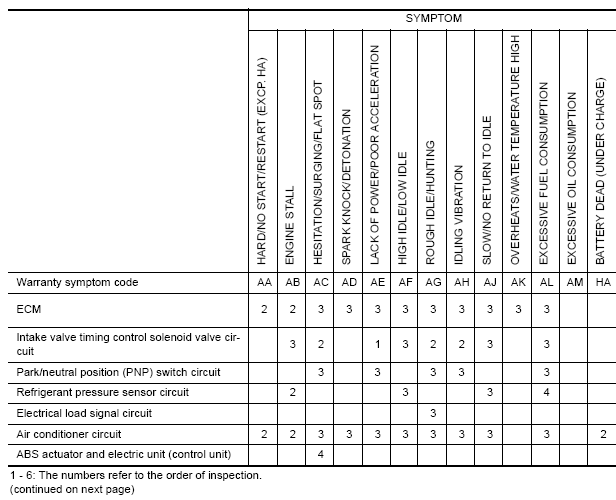

Fig 2: Symptom Matrix Chart - Basic Engine Control System (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
