Snow Mode Switch

1. Check continuity between snow mode switch terminals 1 and 4 under the following conditions.
   CONTINUITY REFERENCE



   CONDITION	CONTINUITY
   Snow mode switch: ON	Should exist.
   Snow mode switch: OFF	Should not exist.

   If NG, replace snow mode switch.

   If OK, go to following step.

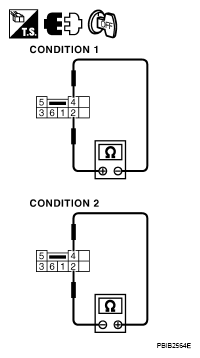

   Fig 1: Checking Continuity Between Snow Mode Switch Terminals 1 And 4

   Courtesy of NISSAN NORTH AMERICA, INC.
2. Check continuity between snow mode switch terminals 2 and 4 under the following conditions.

If NG, replace snow mode switch.

Fig 2: Checking Continuity Between Snow Mode Switch Terminals 2 And 4

Courtesy of NISSAN NORTH AMERICA, INC.
