Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Dash & Center Console

G00422319

Courtesy of NISSAN MOTOR CO., U.S.A.

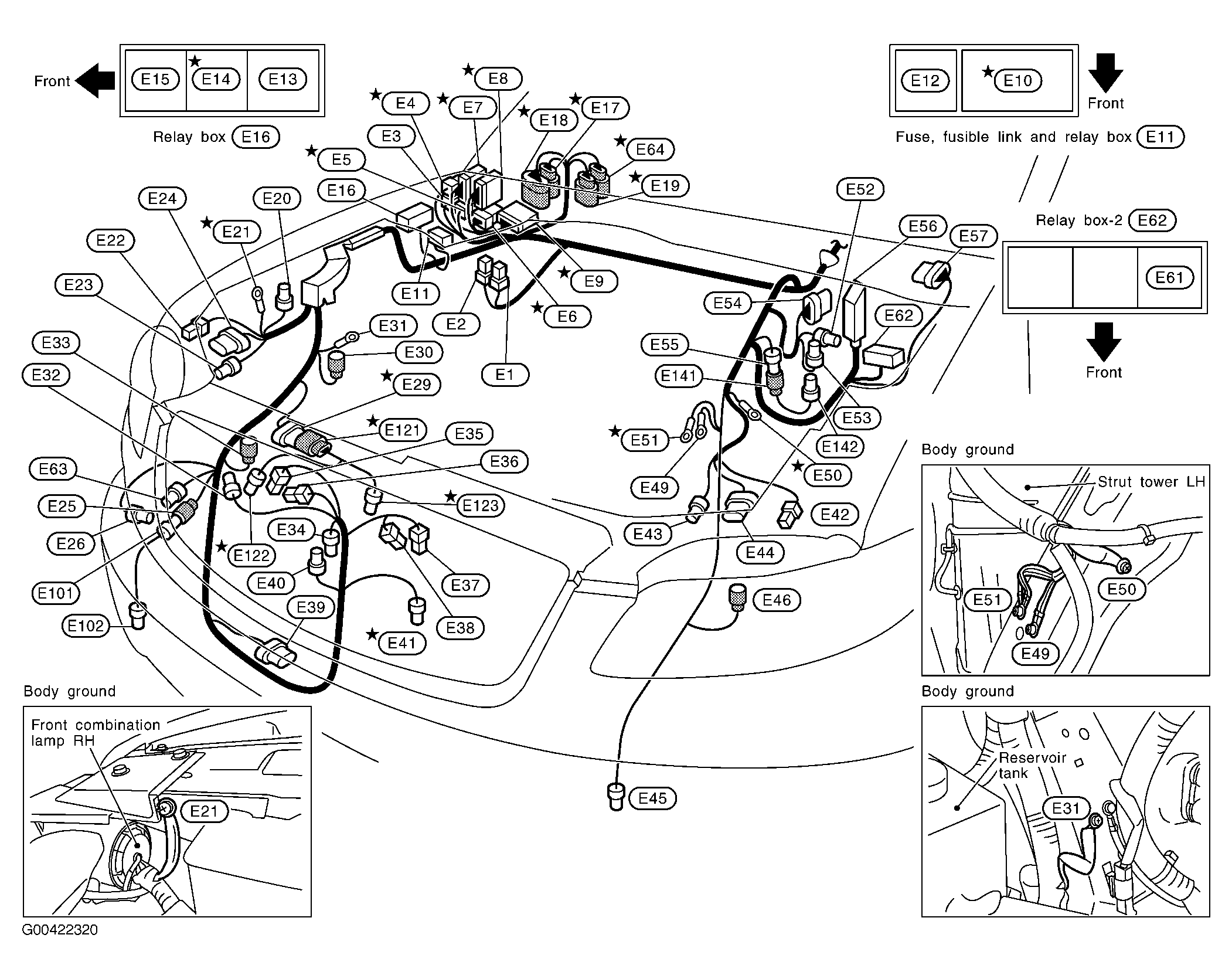

Fig 2: Engine Compartment

G00422320

Courtesy of NISSAN MOTOR CO., U.S.A.

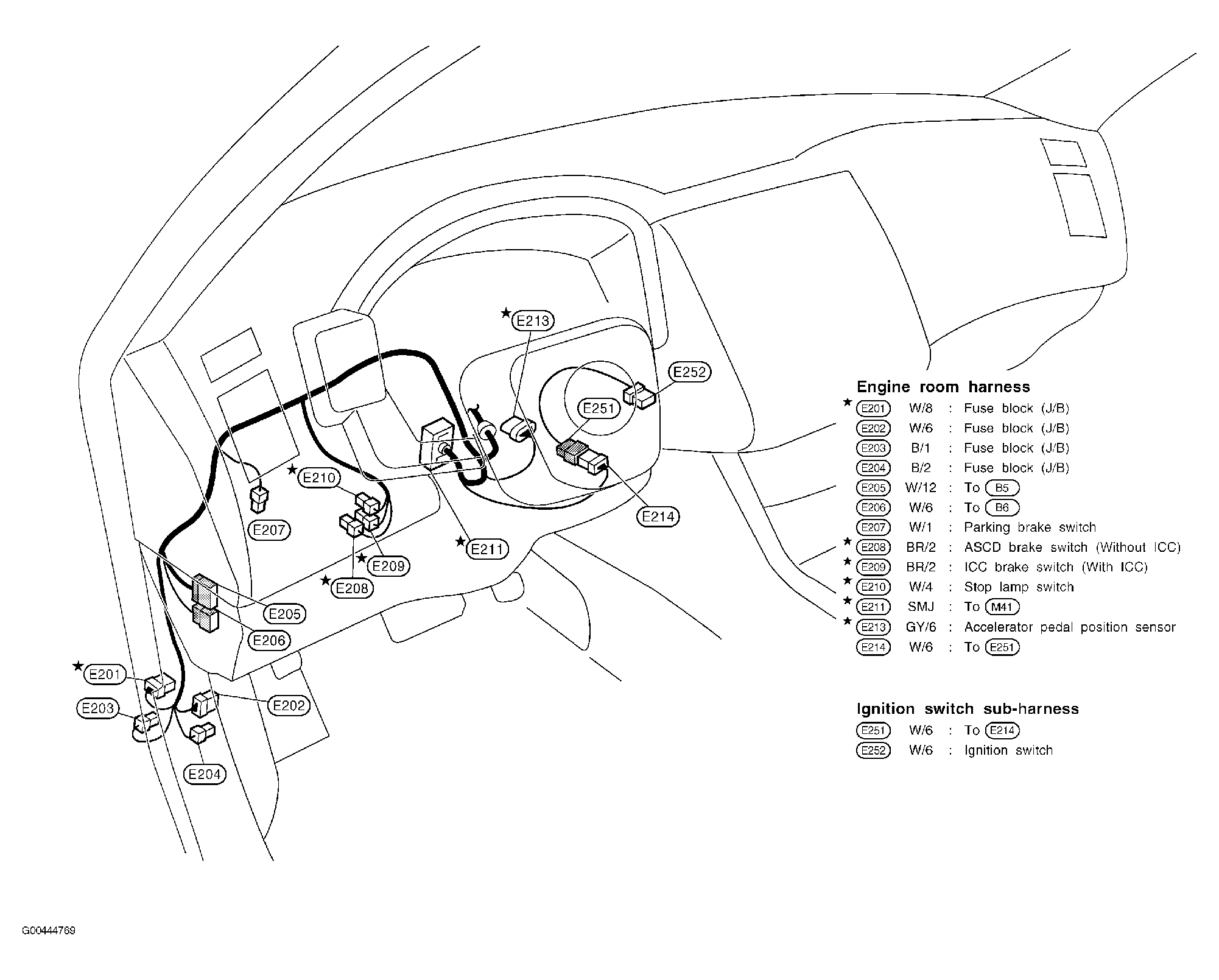

Fig 3: Left Side Of Dash

G00444769

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Engine Compartment (4.5L)

G00262993

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Engine Compartment (3.5L)

G00262994

Courtesy of NISSAN MOTOR CO., U.S.A.

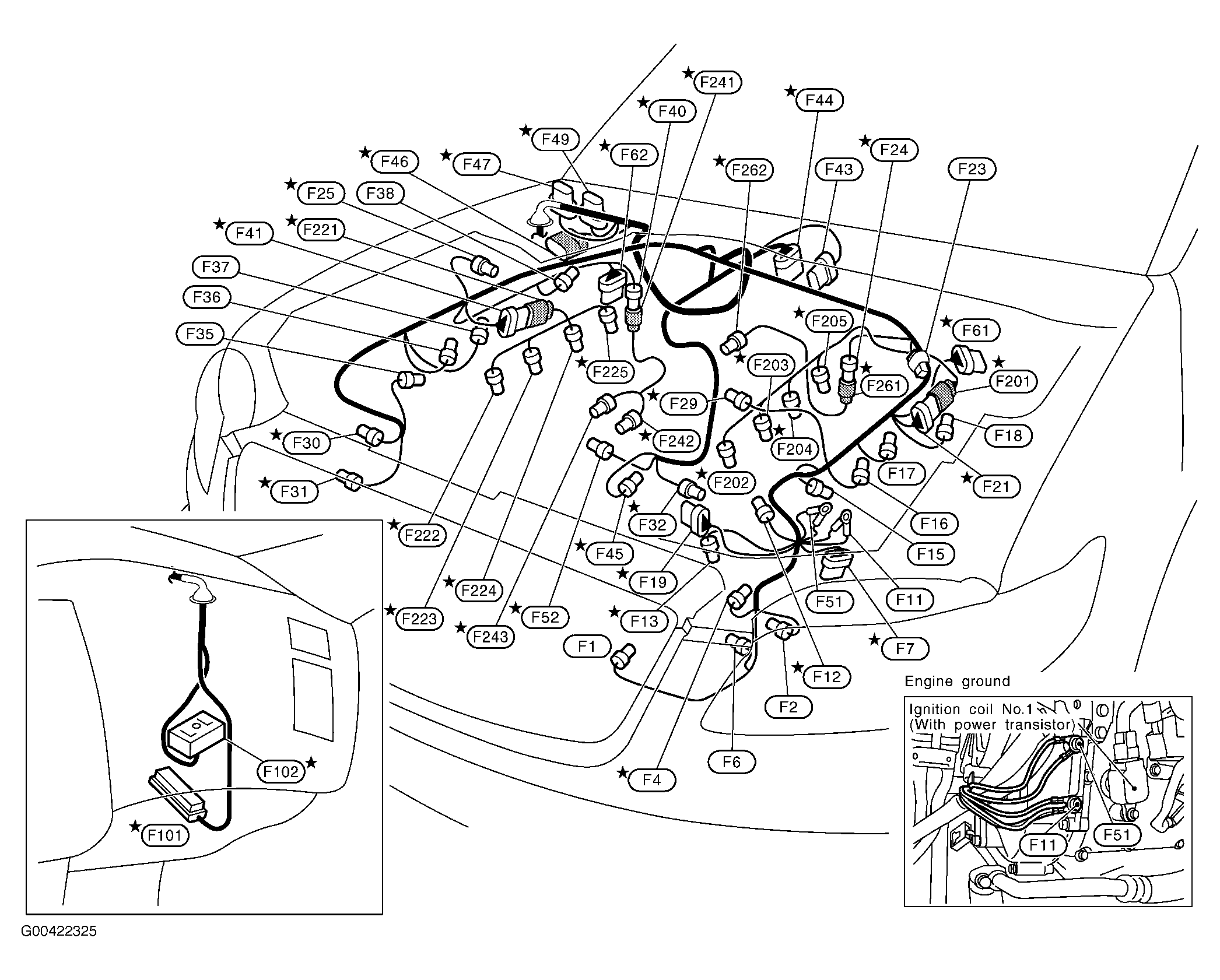

Fig 6: Engine (4.5L)

G00422325

Courtesy of NISSAN MOTOR CO., U.S.A.

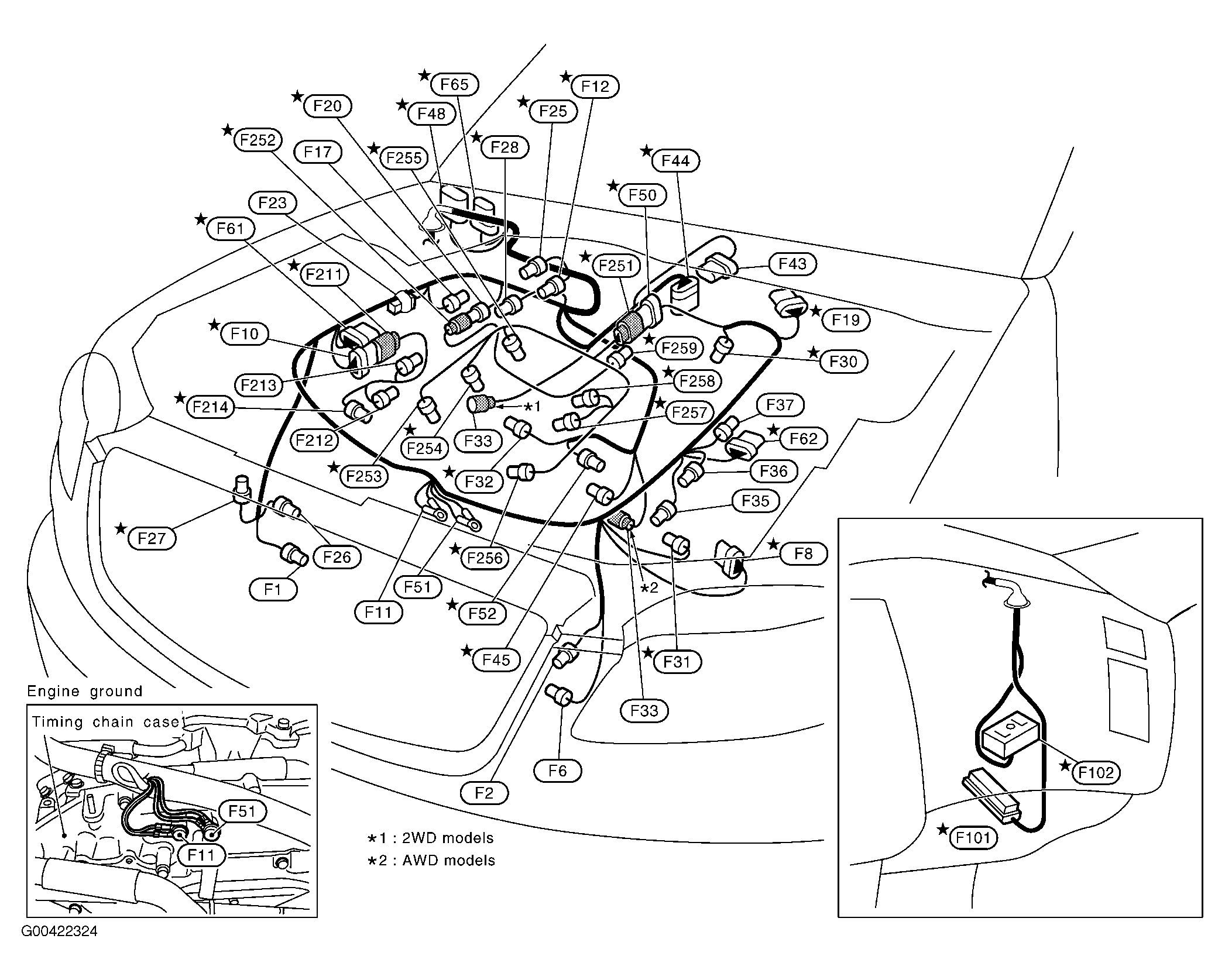

Fig 7: Engine (3.5L)

G00422324

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Left Side & Rear Of Body

G00444770

Courtesy of NISSAN MOTOR CO., U.S.A.

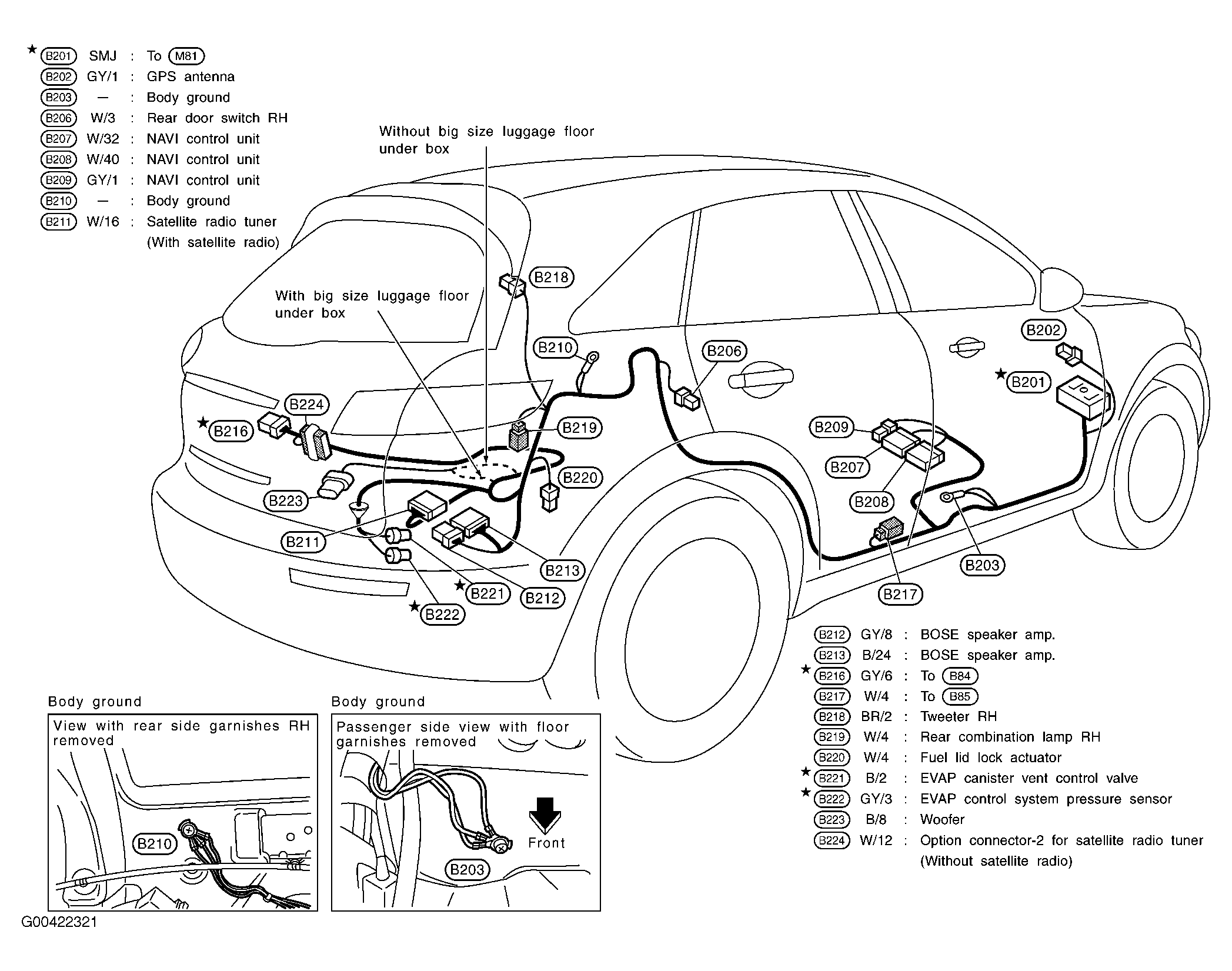

Fig 9: Right Side & Rear Of Body

G00422321

Courtesy of NISSAN MOTOR CO., U.S.A.

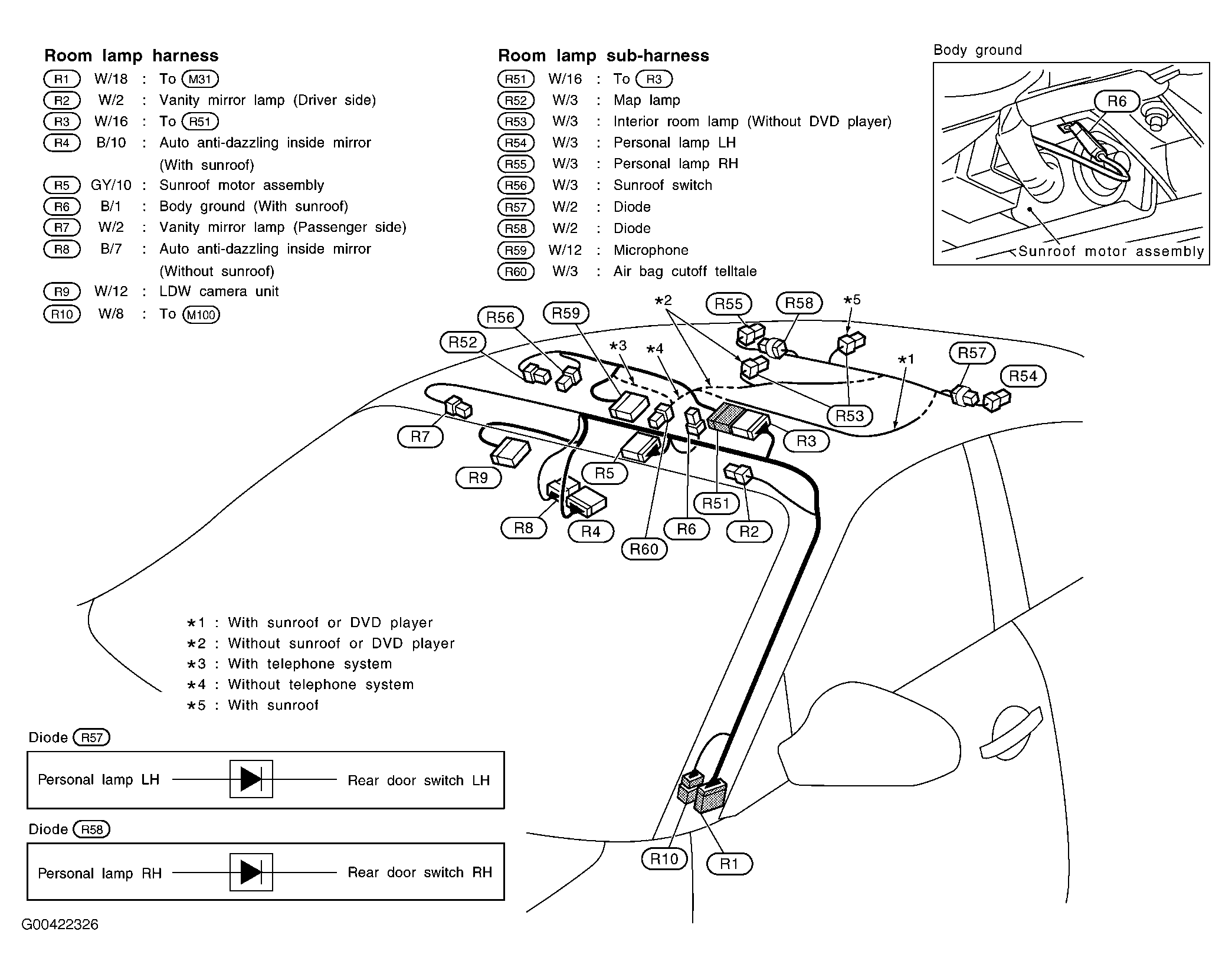

Fig 10: Front Of Roof

G00422326

Courtesy of NISSAN MOTOR CO., U.S.A.

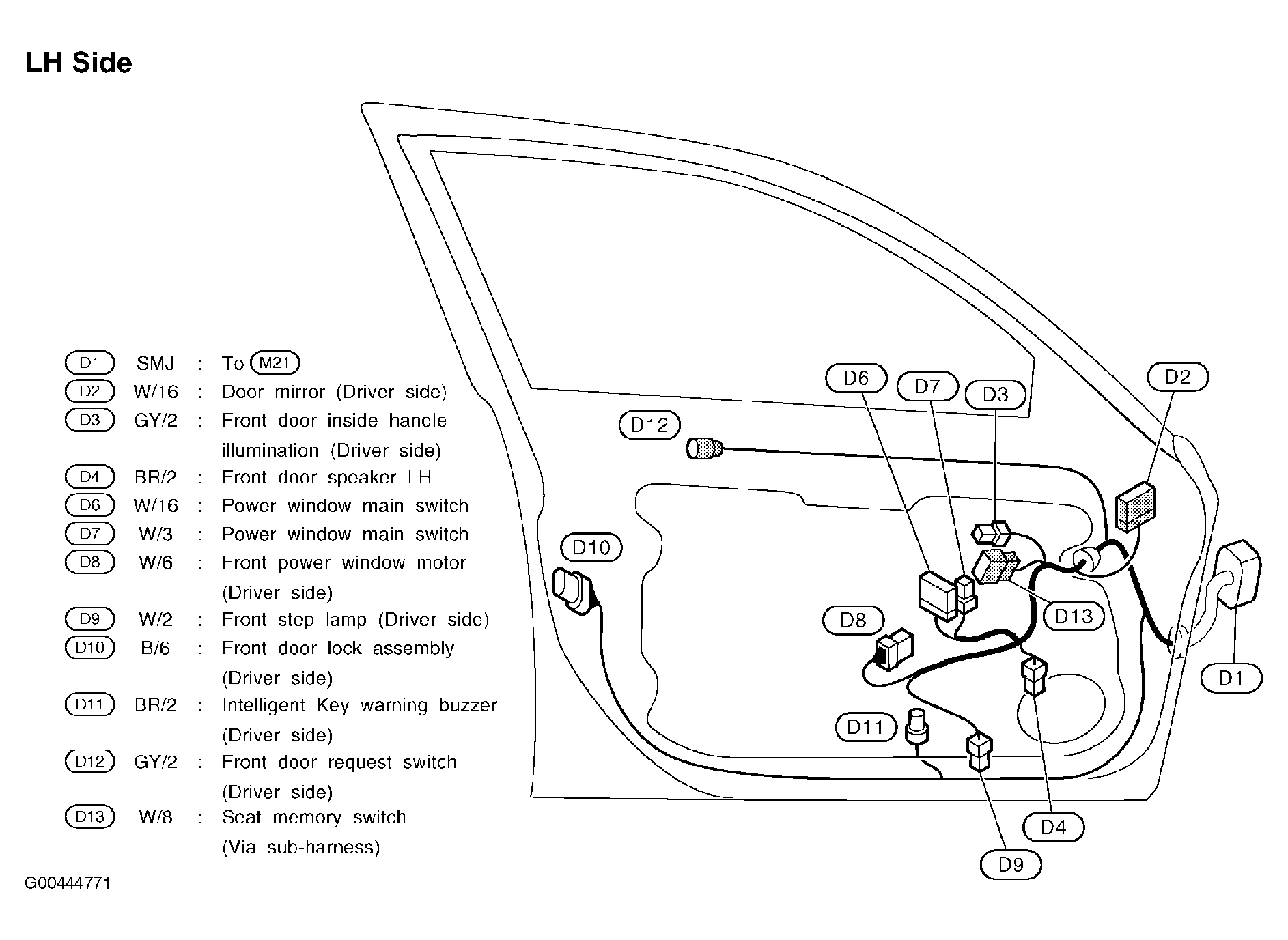

Fig 11: Left Front Door

G00444771

Courtesy of NISSAN MOTOR CO., U.S.A.

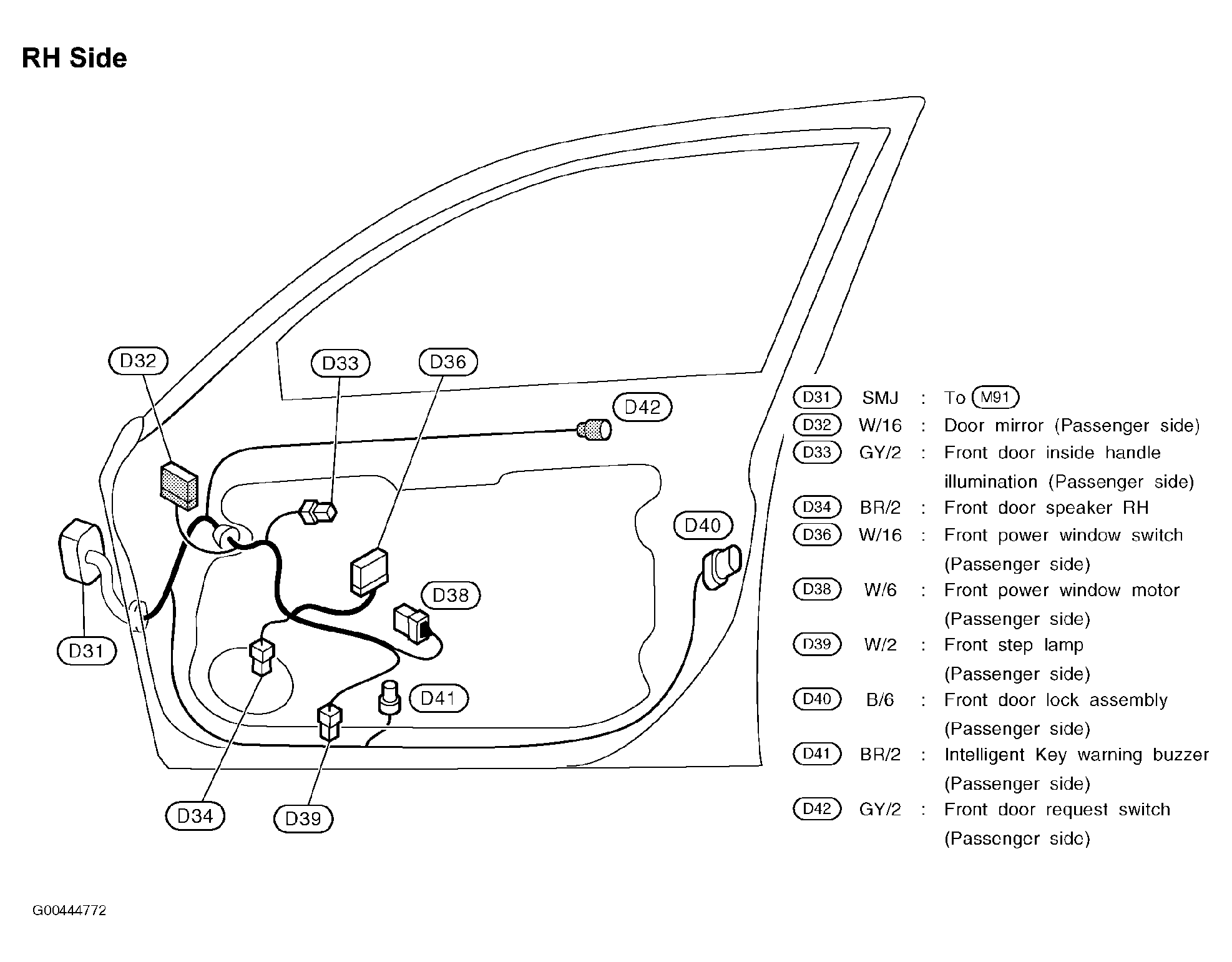

Fig 12: Right Front Door

G00444772

Courtesy of NISSAN MOTOR CO., U.S.A.

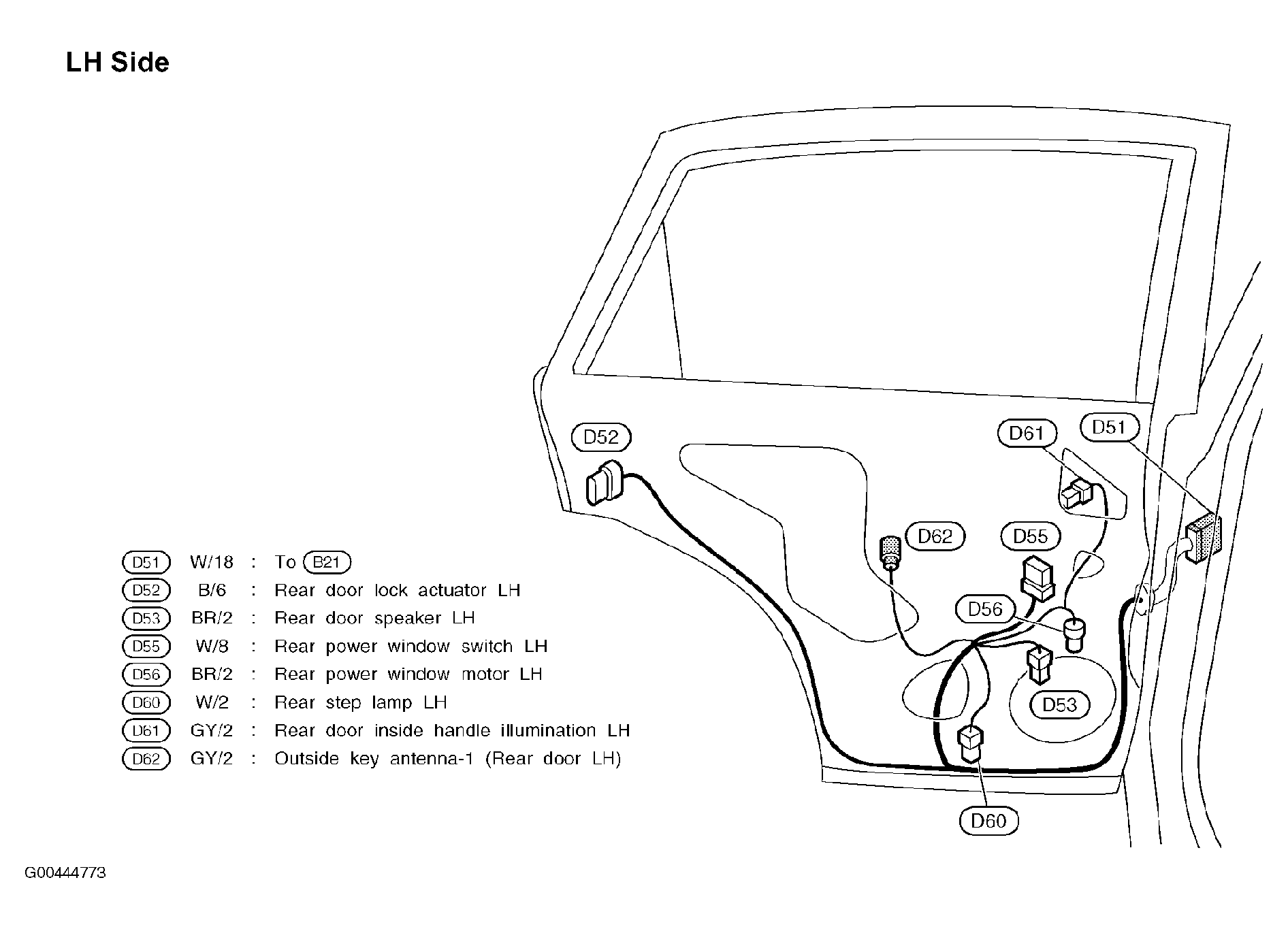

Fig 13: Left Rear Door

G00444773

Courtesy of NISSAN MOTOR CO., U.S.A.

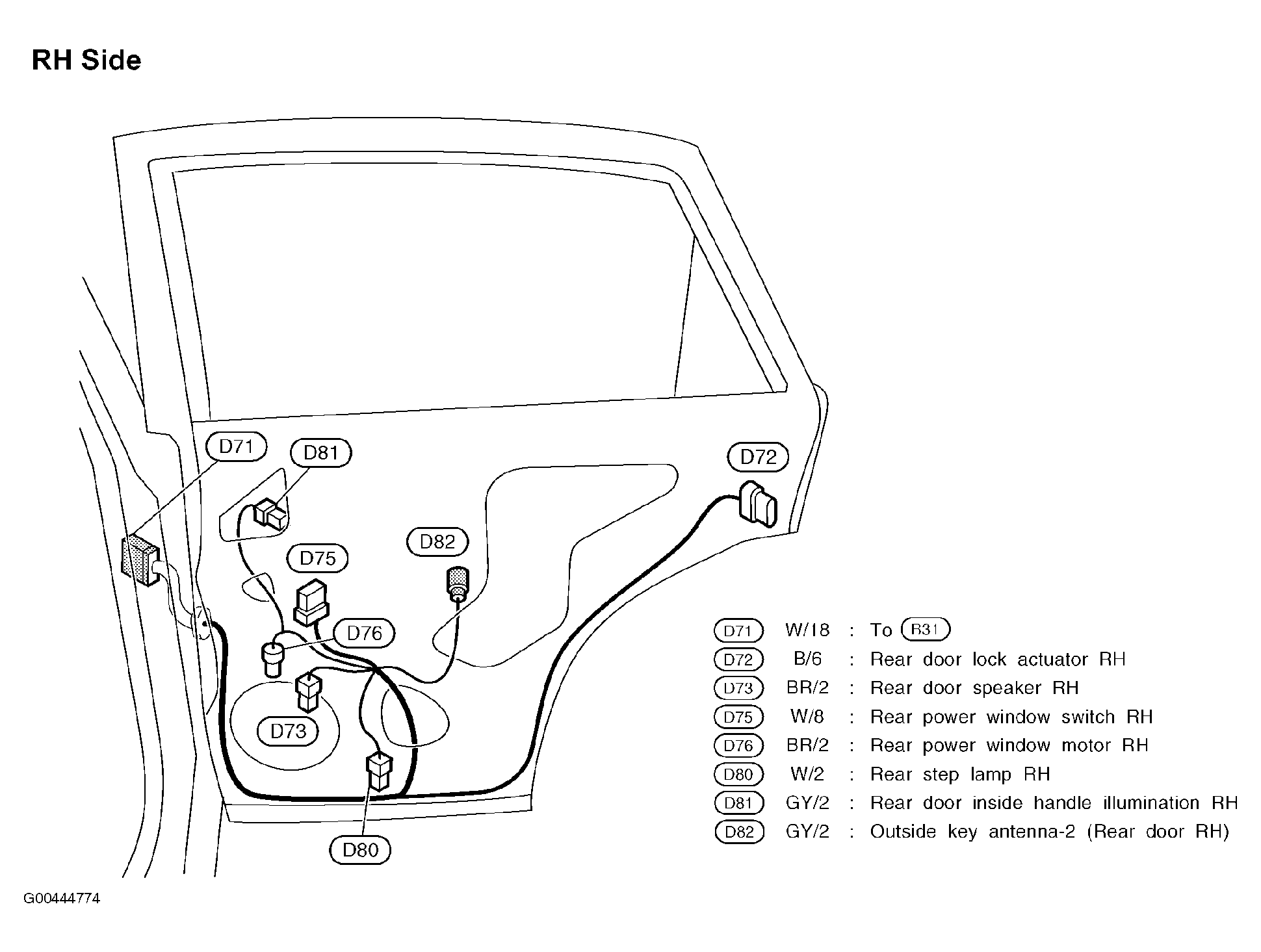

Fig 14: Right Rear Door

G00444774

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Back Door

G00263007

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Rear Of Engine Compartment

G00422322

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Dash & Center Console (1 Of 2)

G00359976

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Dash & Center Console (2 Of 2)

G00444775

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Luggage Compartment

G00422323

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: IPDM E/R (Intelligent Power Distribution Module Engine Room)

G00267361

Courtesy of NISSAN MOTOR CO., U.S.A.
