ASCD Indicator: Wiring Diagram

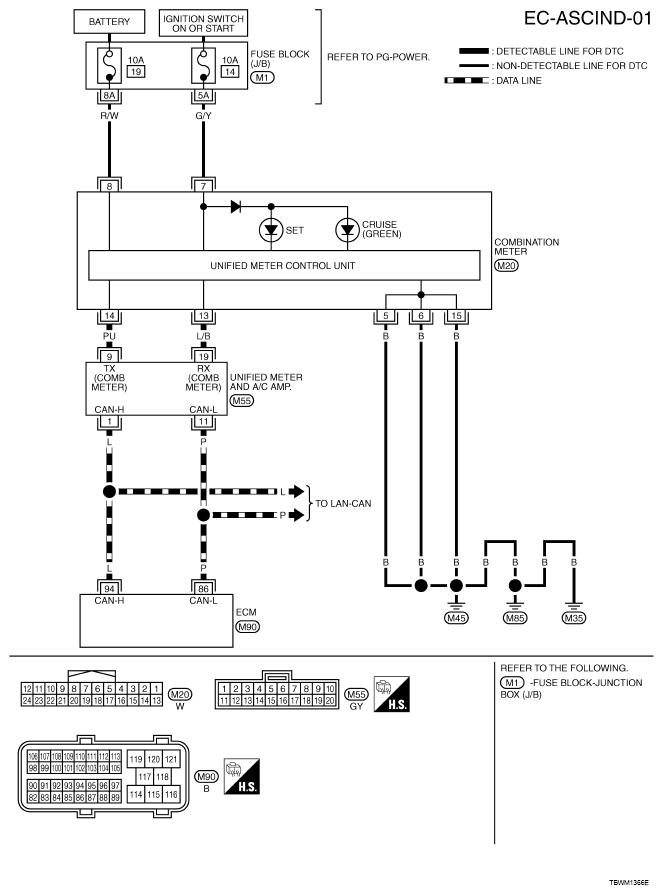

Fig 1: ASCD Indicator - Wiring Diagram

G05217793

Courtesy of NISSAN NORTH AMERICA, INC.
