Disassembly and Assembly: Components

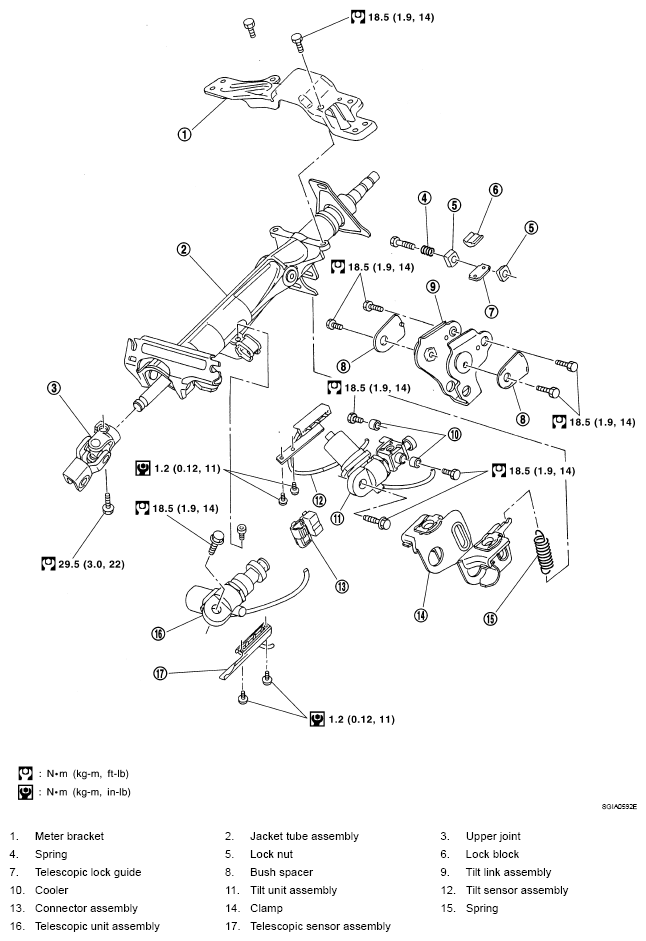

Fig 1: Exploded View Of Steering Column Components With Torque Specifications

G05220591
