System Diagram: Notes

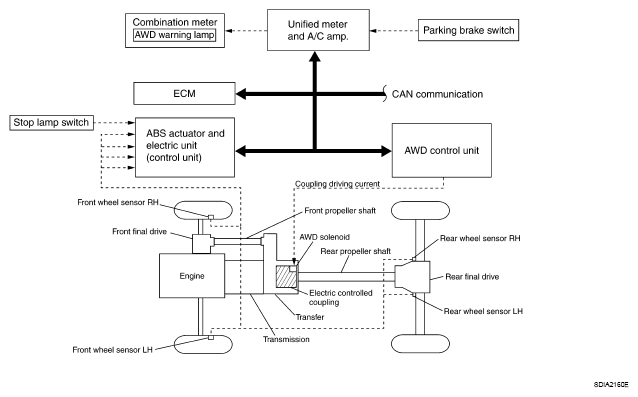

Fig 1: Identifying AWD System Diagram

G05225314

Courtesy of NISSAN MOTOR CO., U.S.A.
