Disassembly and Assembly: Components

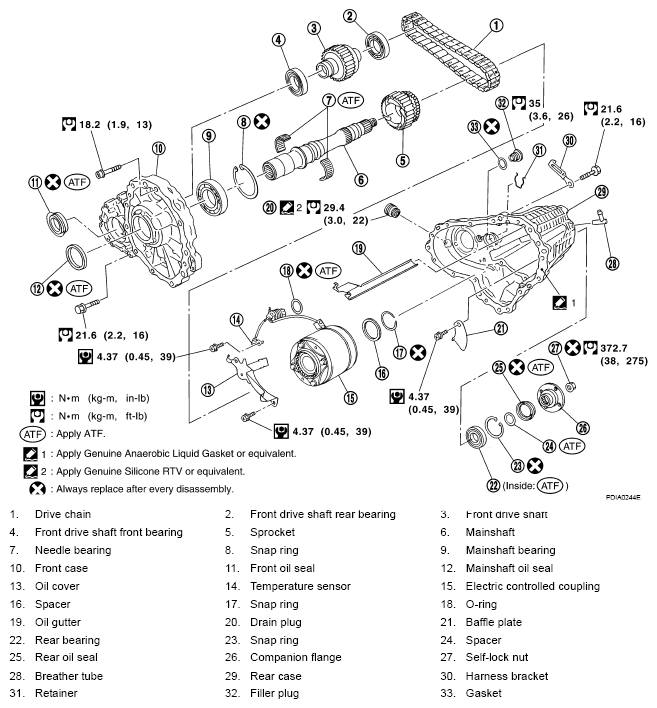

Fig 1: Transfer Assemble Disassemble/Assemble View With Torque Specifications
G05225352Courtesy of NISSAN MOTOR CO., U.S.A.
