Exploded View

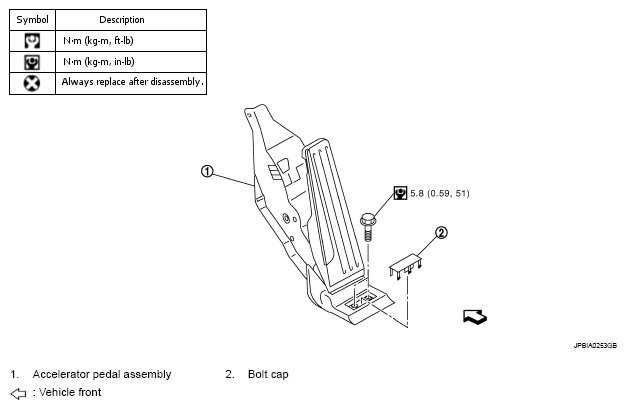

Fig 1: Exploded View Of Accelerator Control System With Torque Specifications
G05224205

Refer to "COMPONENTS " for symbol marks in the figure.
