Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

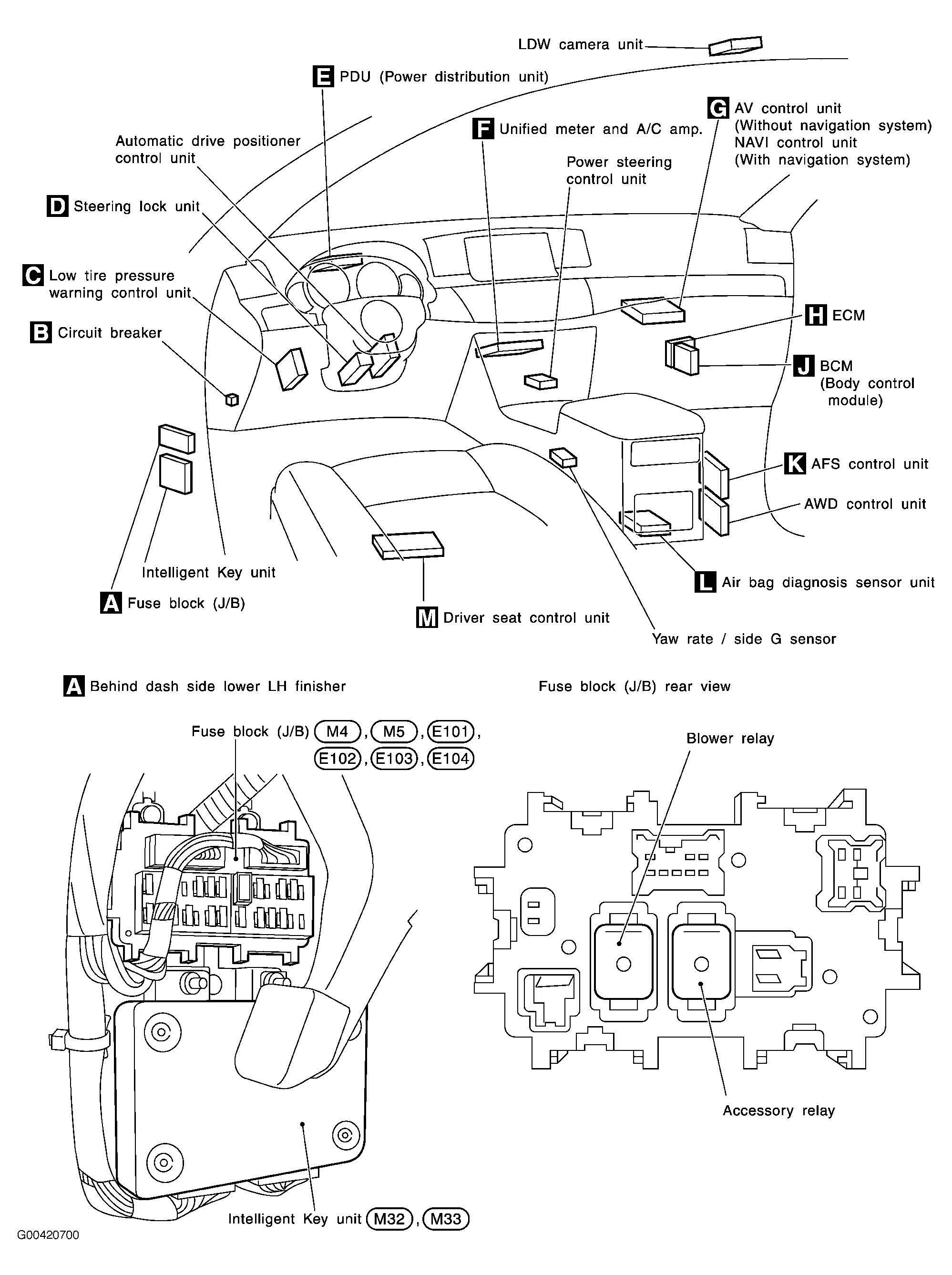

| Circuit Breaker | Behind left side of dash. See Figure. |
| Fuse Block (J/B) | Behind left kick panel. See Figure. |

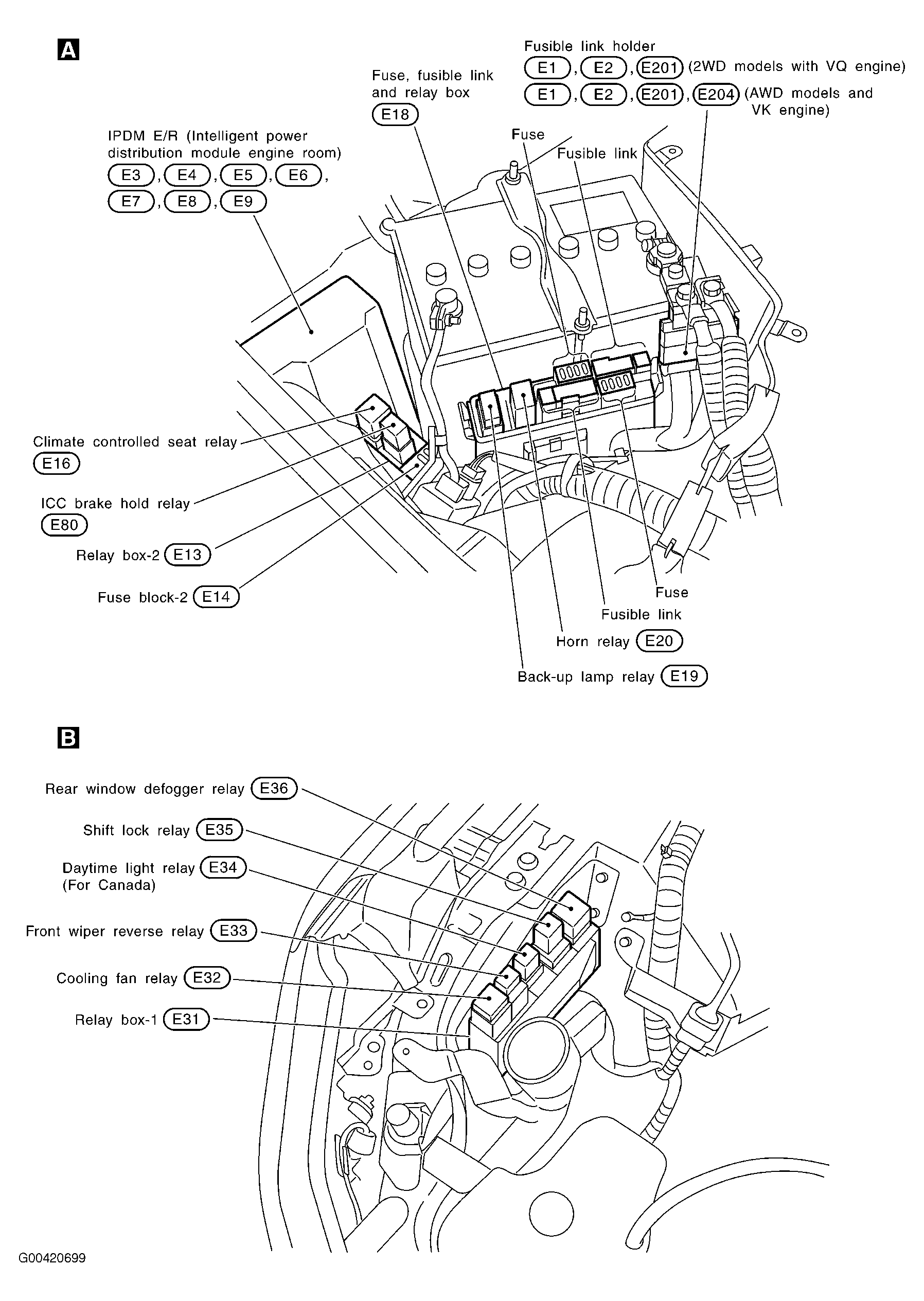

| Fuse Block 2 | Right rear of engine compartment. See Figure. |
| Fuse, Fusible Link & Relay Box | Right rear of engine compartment. See Figure. |
| Fusible Link | In fuse, fusible link & relay box. See Figure. |
| Fusible Link Holder | Right rear of engine compartment. See Figure. |

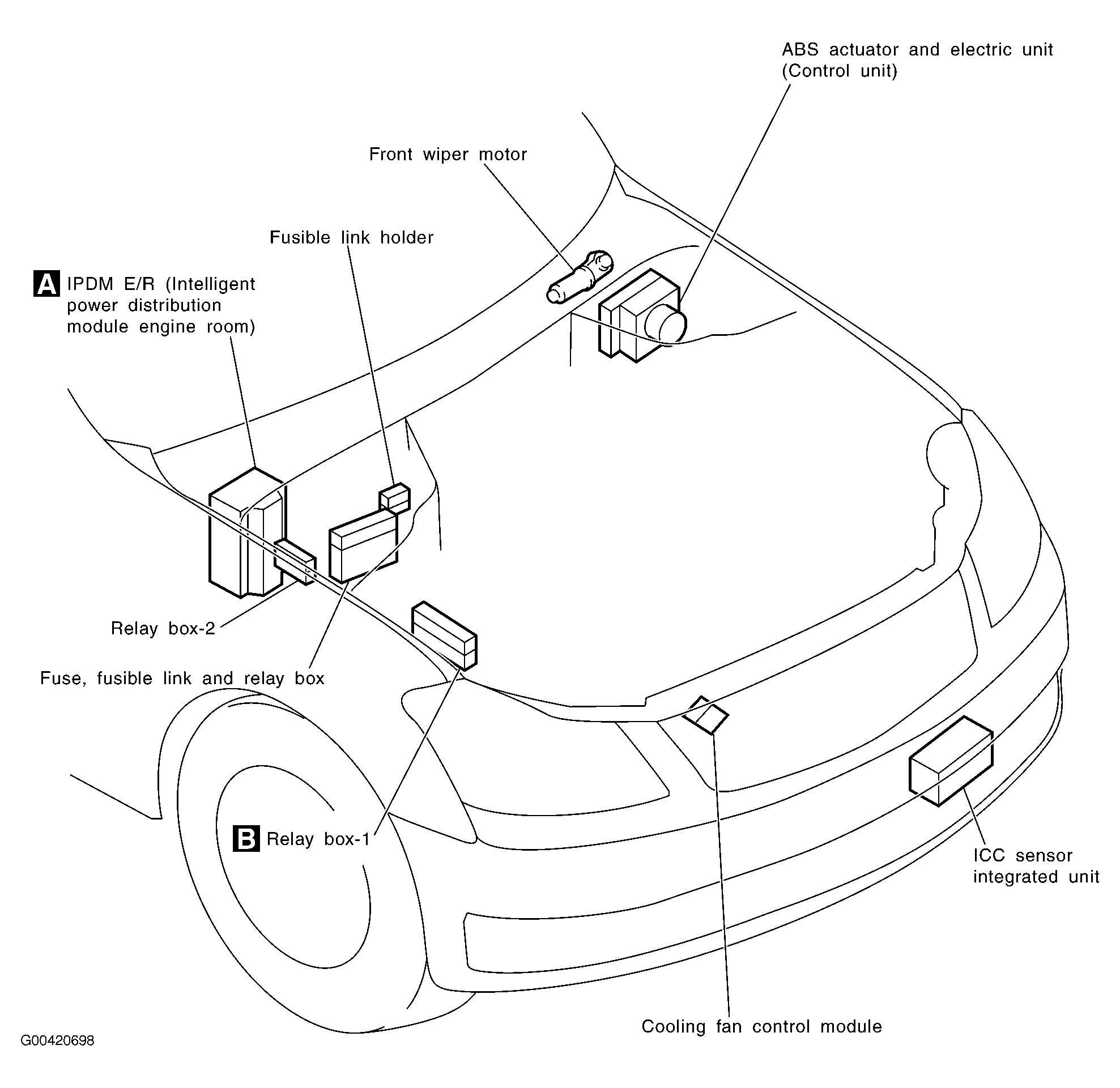

| IPDM E/R (Intelligent Power Distribution Module Engine Room) | Right rear of engine compartment. See Figure. |
| Relay Box 1 | Right rear of engine compartment. See Figure. |
| Relay Box 2 | Right rear of engine compartment. See Figure. |
