Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment (1 Of 2)

G00420698

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Engine Compartment (2 Of 2)

G00420699

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Passenger Compartment (1 Of 2)

G00420700

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Passenger Compartment (2 Of 2)

G00420701

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Rear Seat

G00420702

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Luggage Compartment

G00420703

Courtesy of NISSAN MOTOR CO., U.S.A.

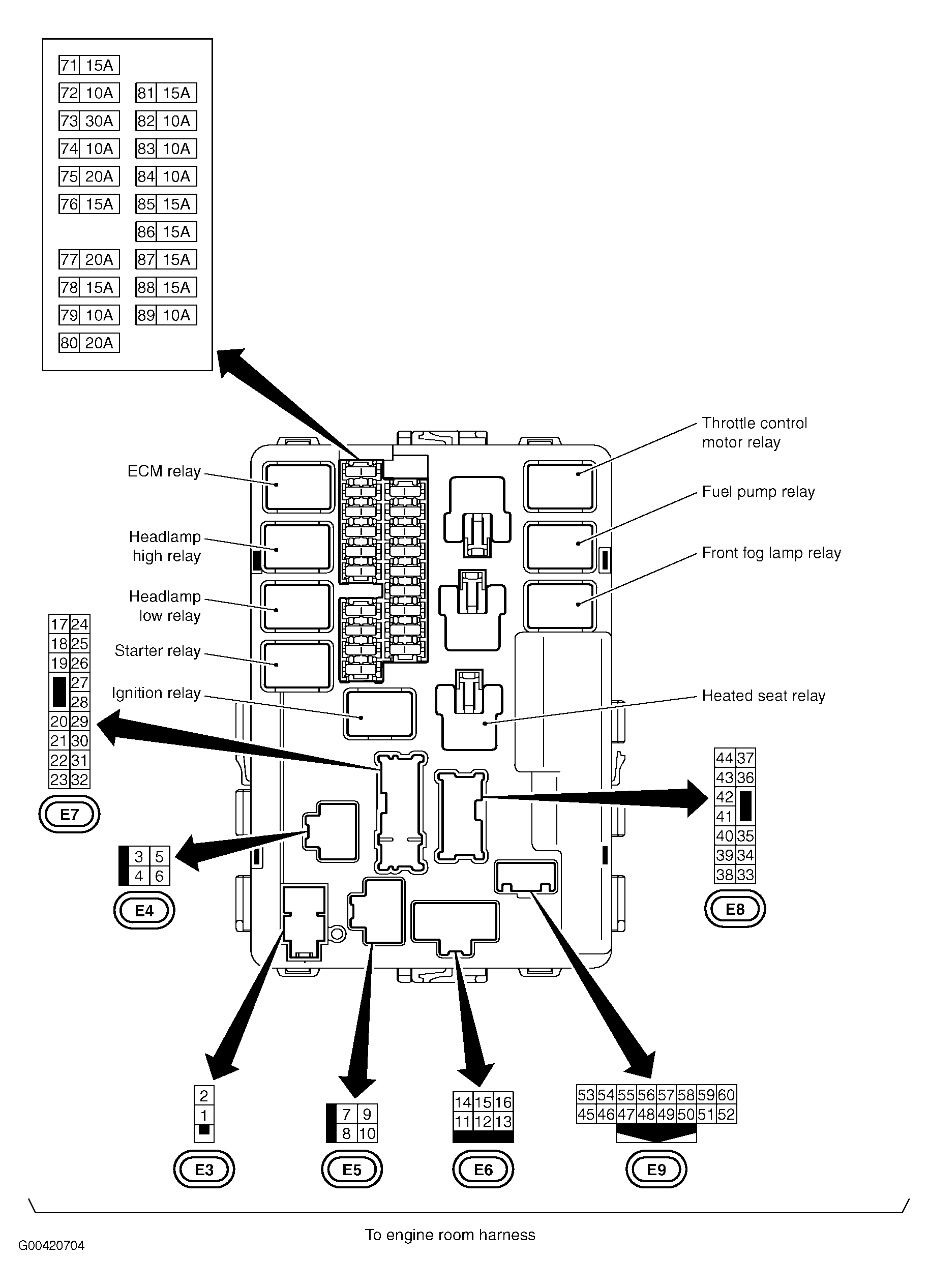

Fig 7: IPDM E/R (Intelligent Power Distribution Module Engine Room)

G00420704

Courtesy of NISSAN MOTOR CO., U.S.A.

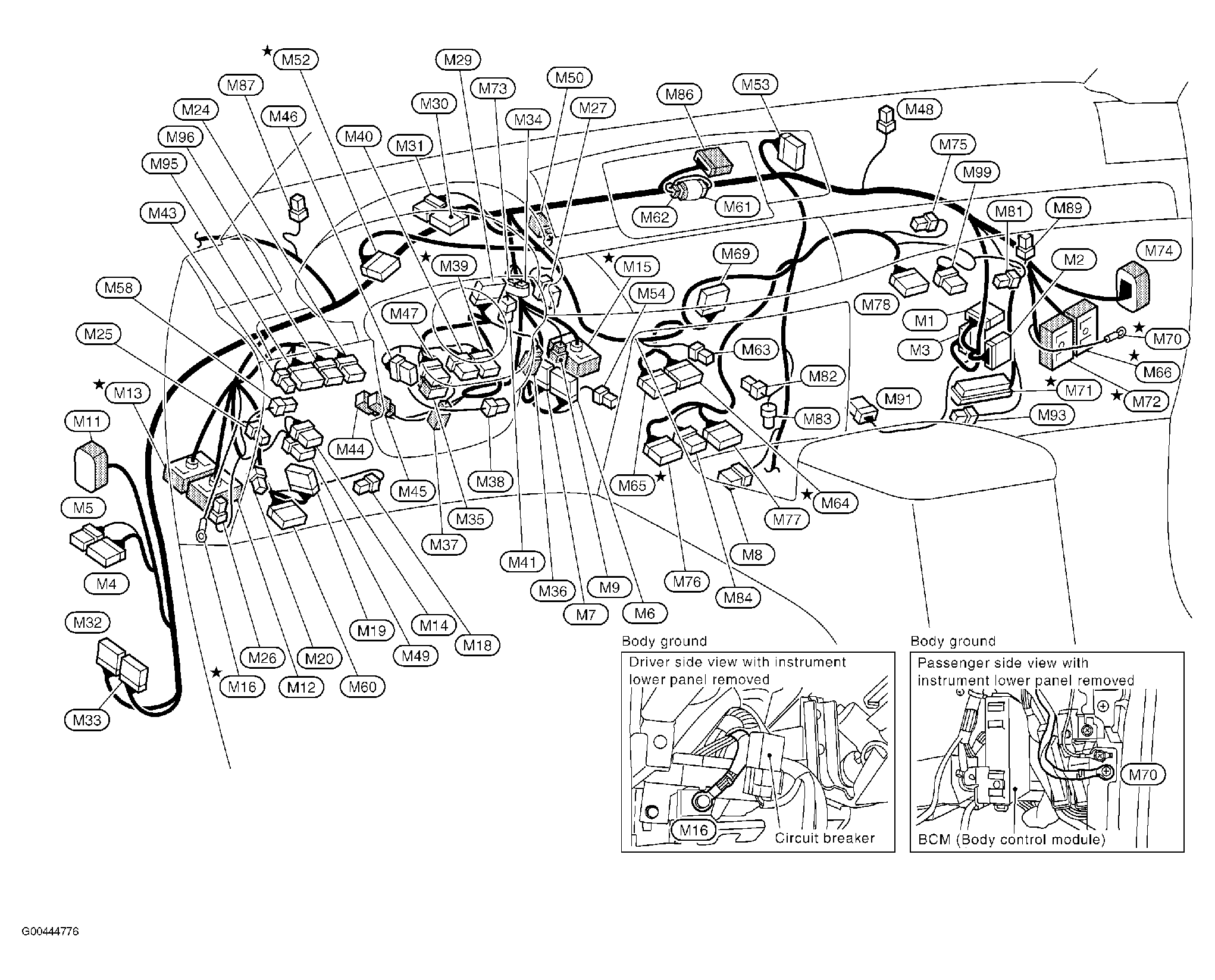

Fig 8: Instrument Panel

G00444776

Courtesy of NISSAN MOTOR CO., U.S.A.

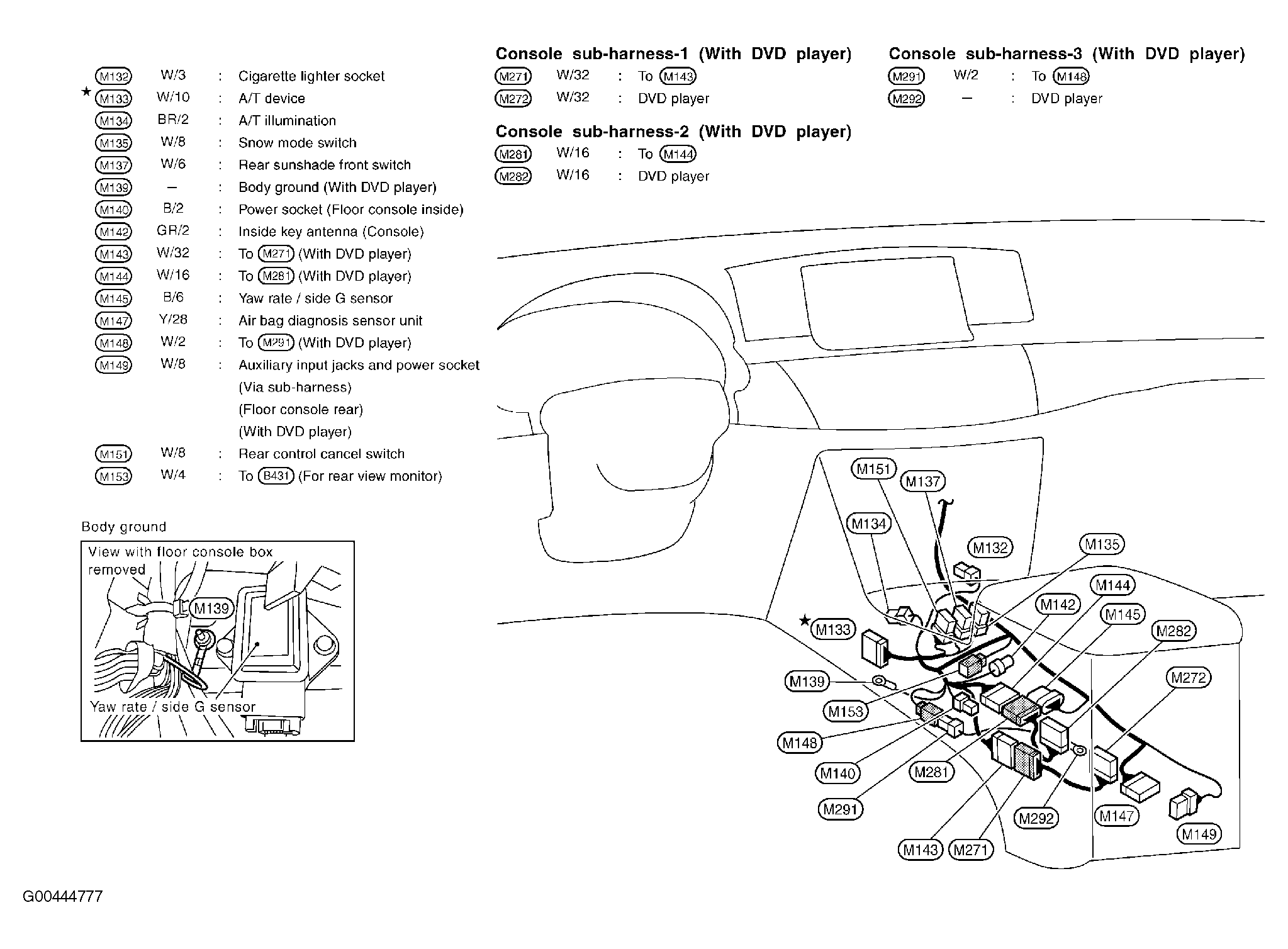

Fig 9: Floor Console

G00444777

Courtesy of NISSAN MOTOR CO., U.S.A.

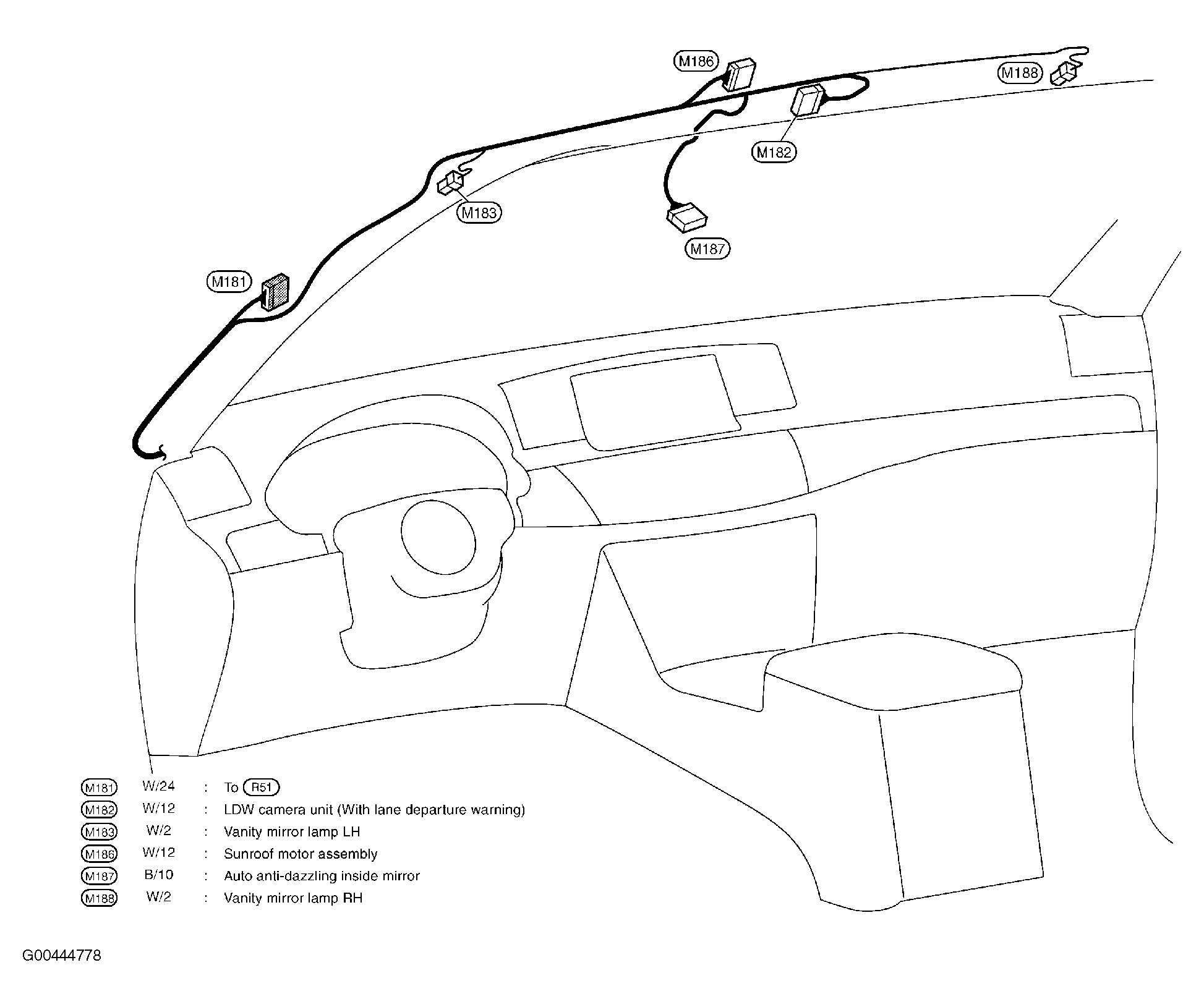

Fig 10: Roof

G00444778

Courtesy of NISSAN MOTOR CO., U.S.A.

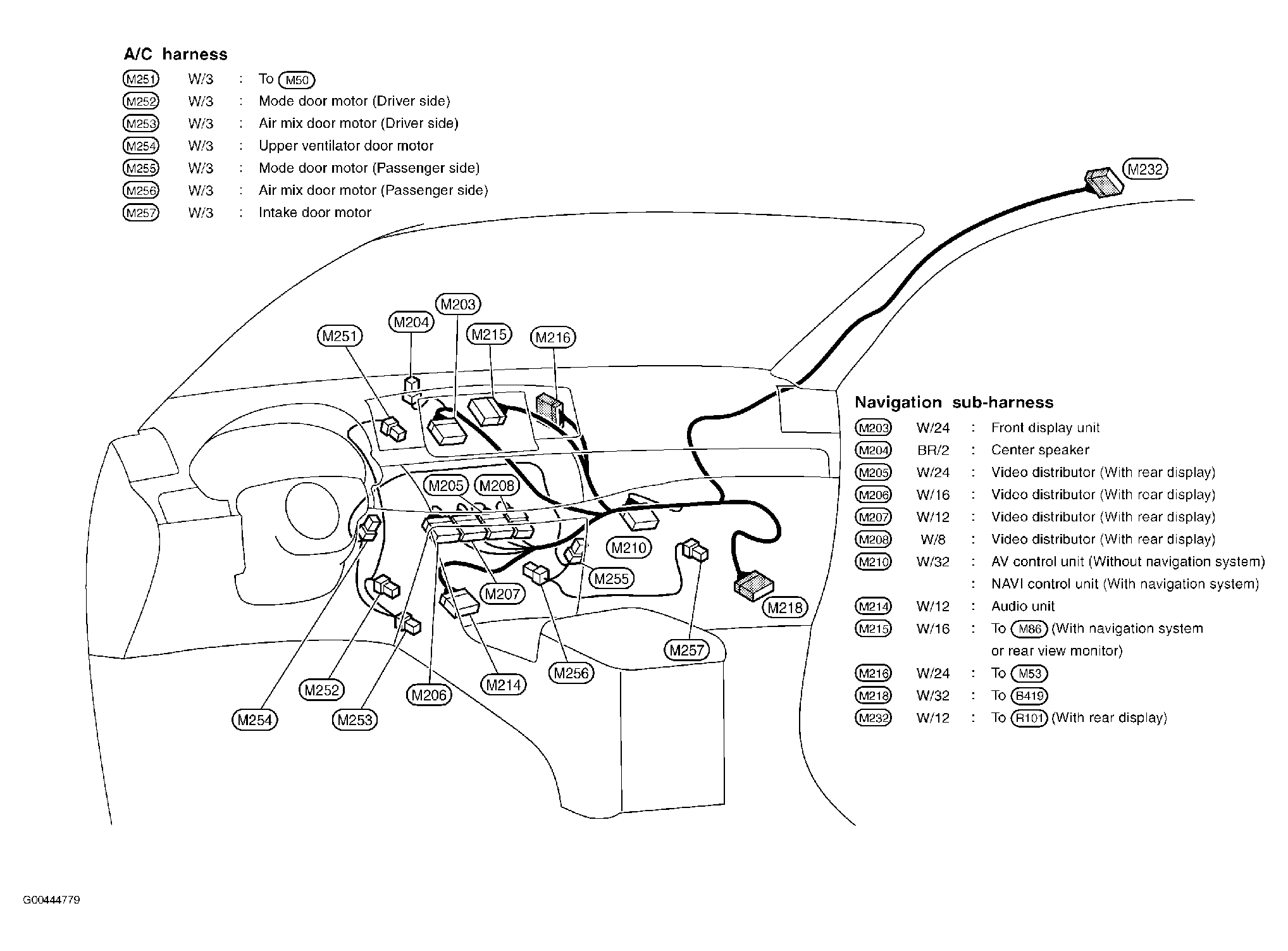

Fig 11: Center Of Dash

G00444779

Courtesy of NISSAN MOTOR CO., U.S.A.

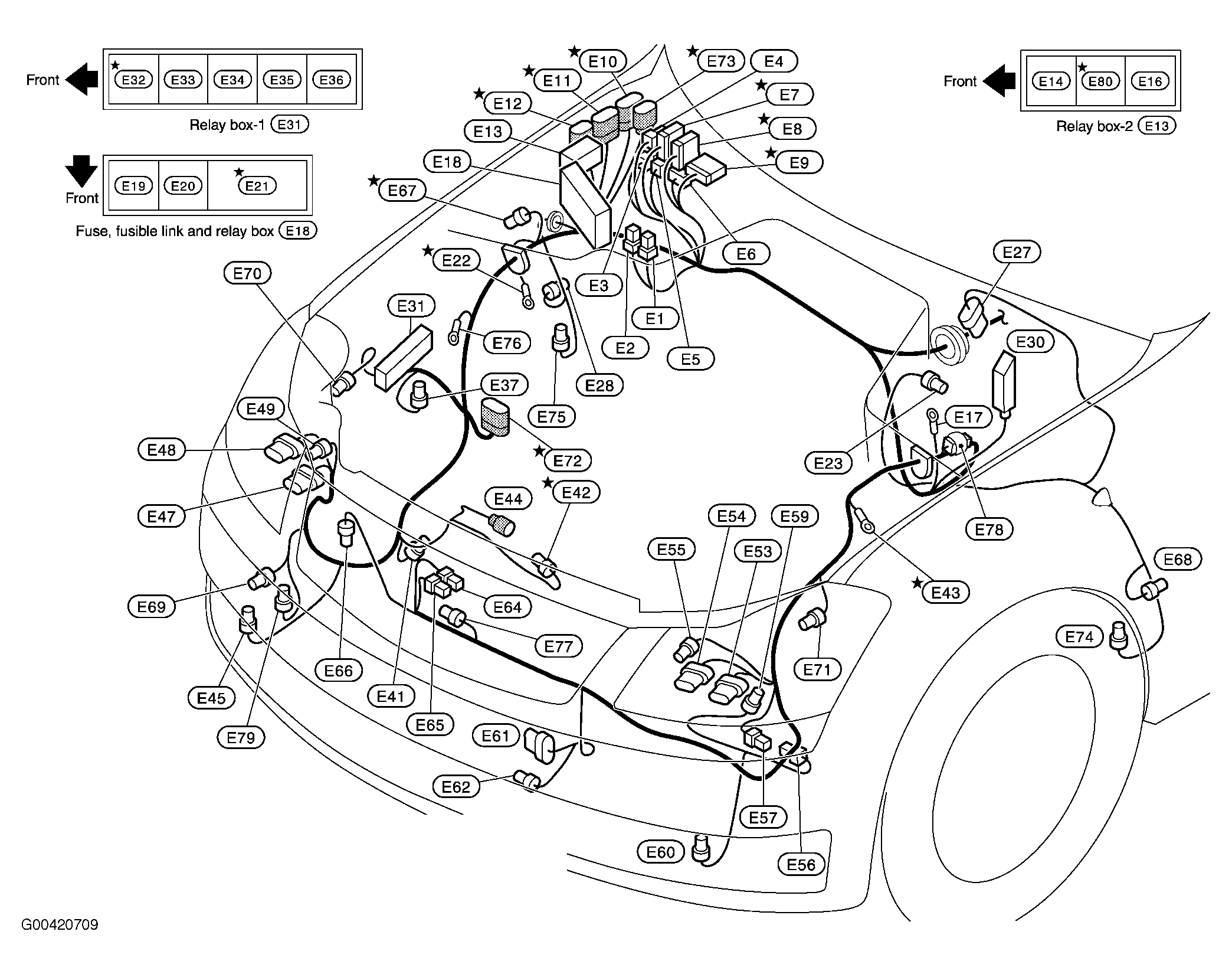

Fig 12: Engine Compartment

G00420709

Courtesy of NISSAN MOTOR CO., U.S.A.

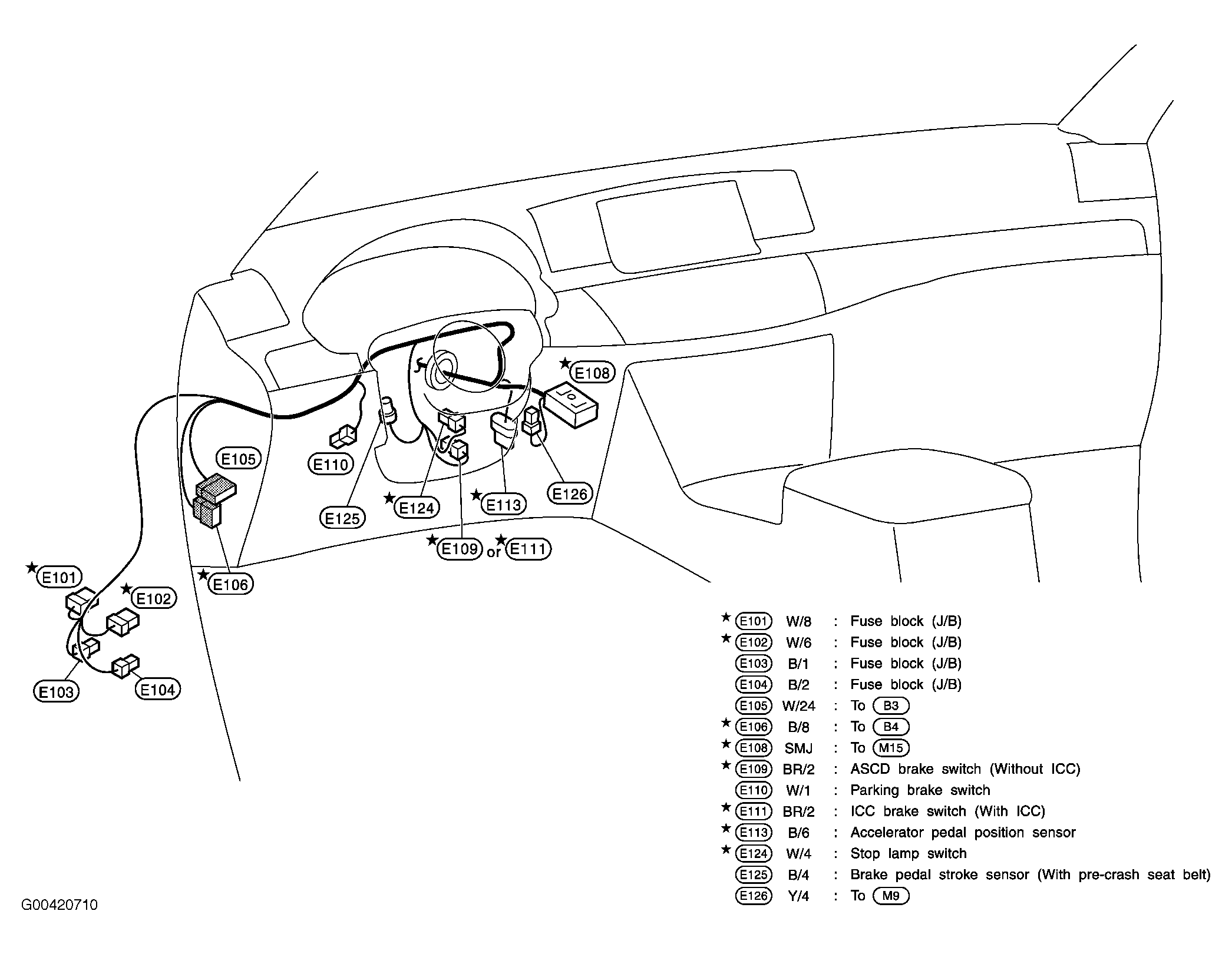

Fig 13: Left Side Of Dash

G00420710

Courtesy of NISSAN MOTOR CO., U.S.A.

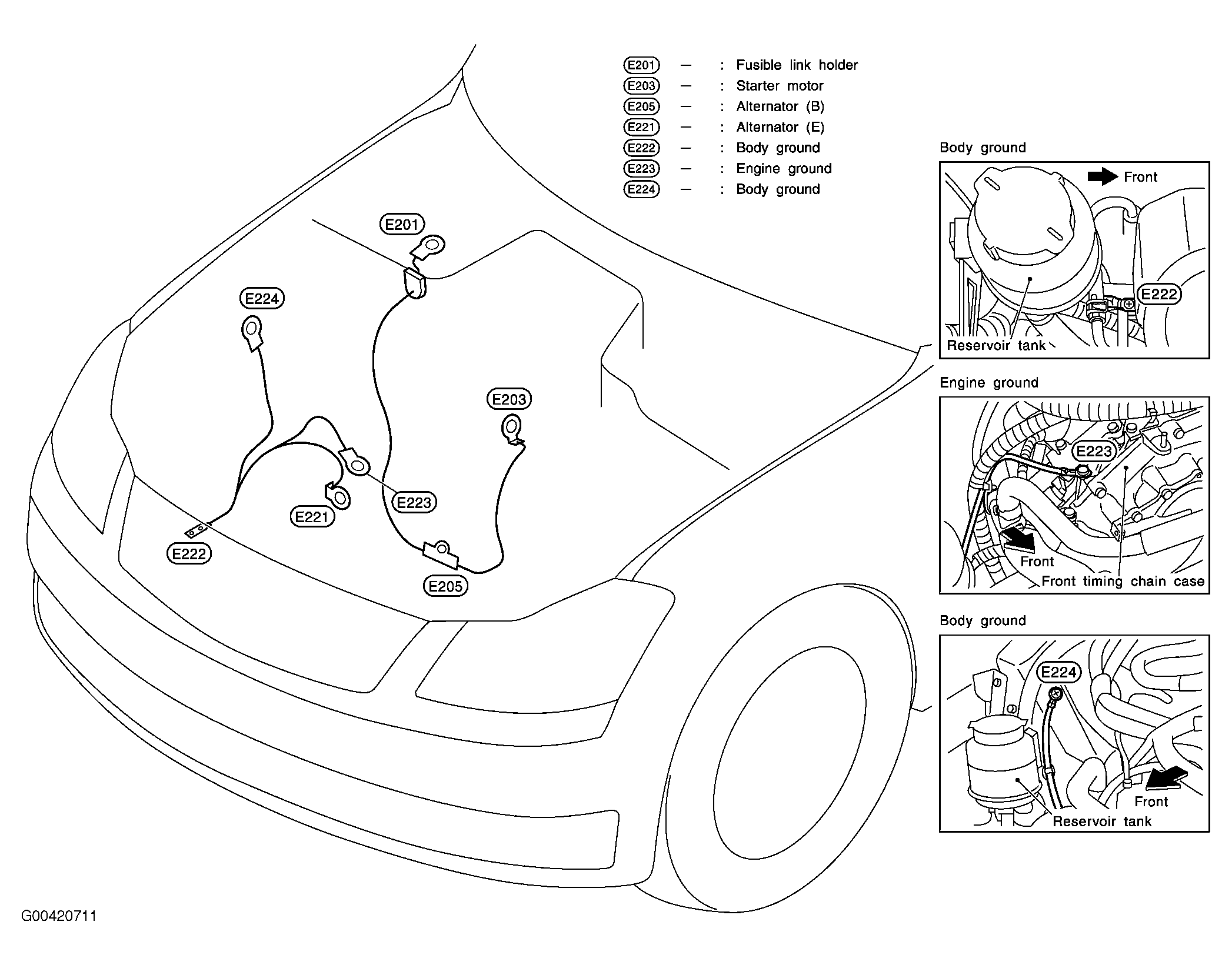

Fig 14: Engine Compartment (2WD 3.5L)

G00420711

Courtesy of NISSAN MOTOR CO., U.S.A.

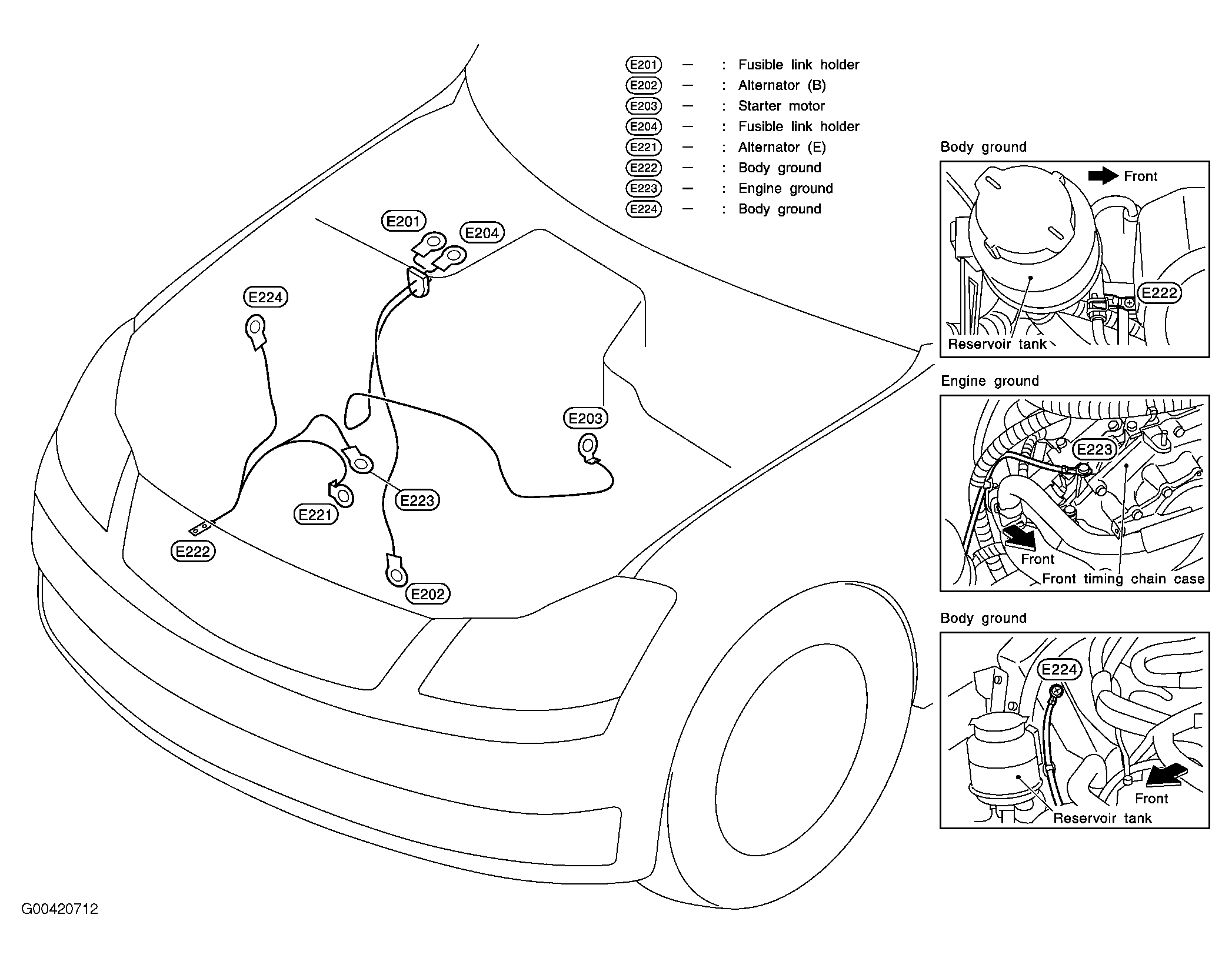

Fig 15: Engine Compartment (AWD 3.5L)

G00420712

Courtesy of NISSAN MOTOR CO., U.S.A.

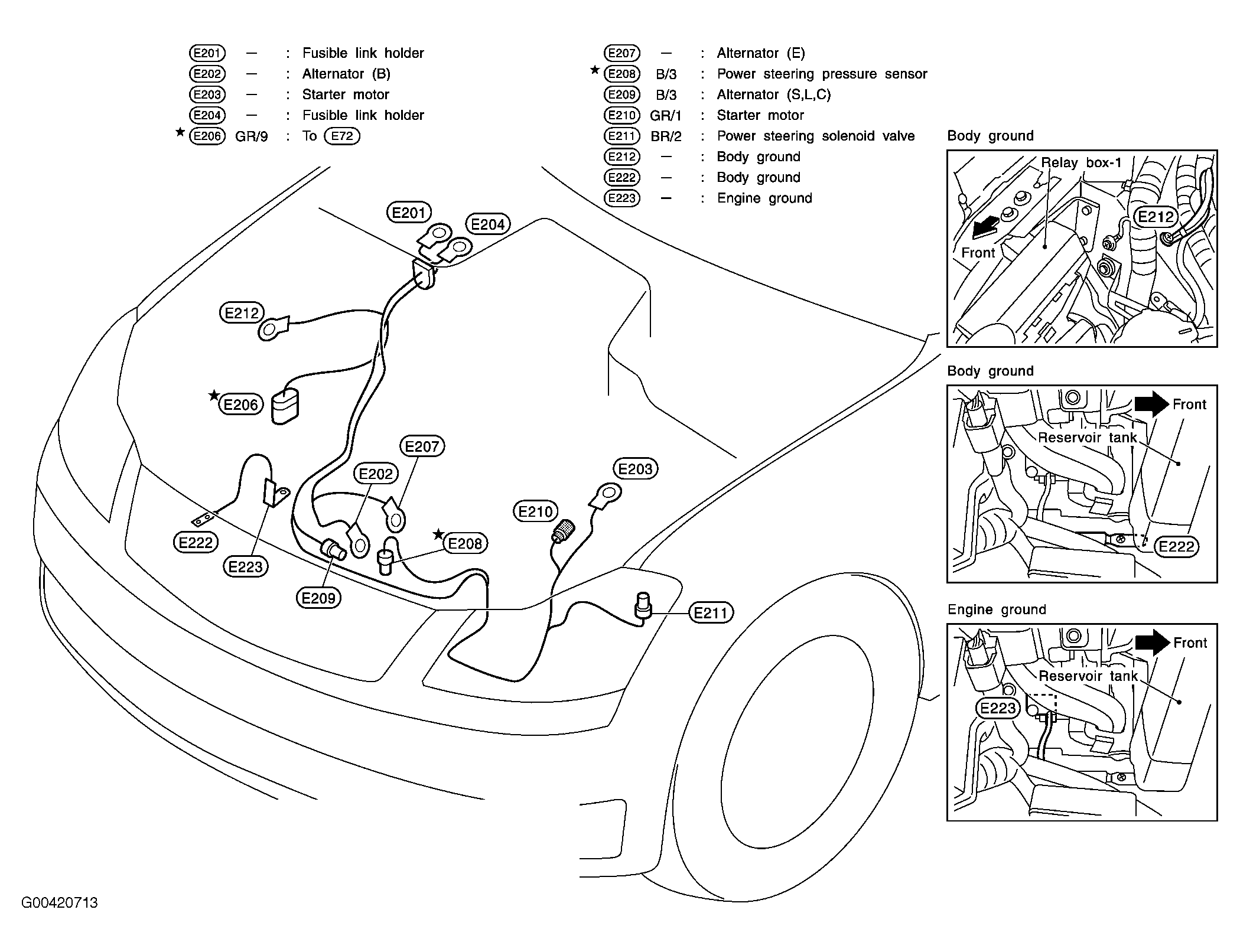

Fig 16: Engine Compartment (4.5L)

G00420713

Courtesy of NISSAN MOTOR CO., U.S.A.

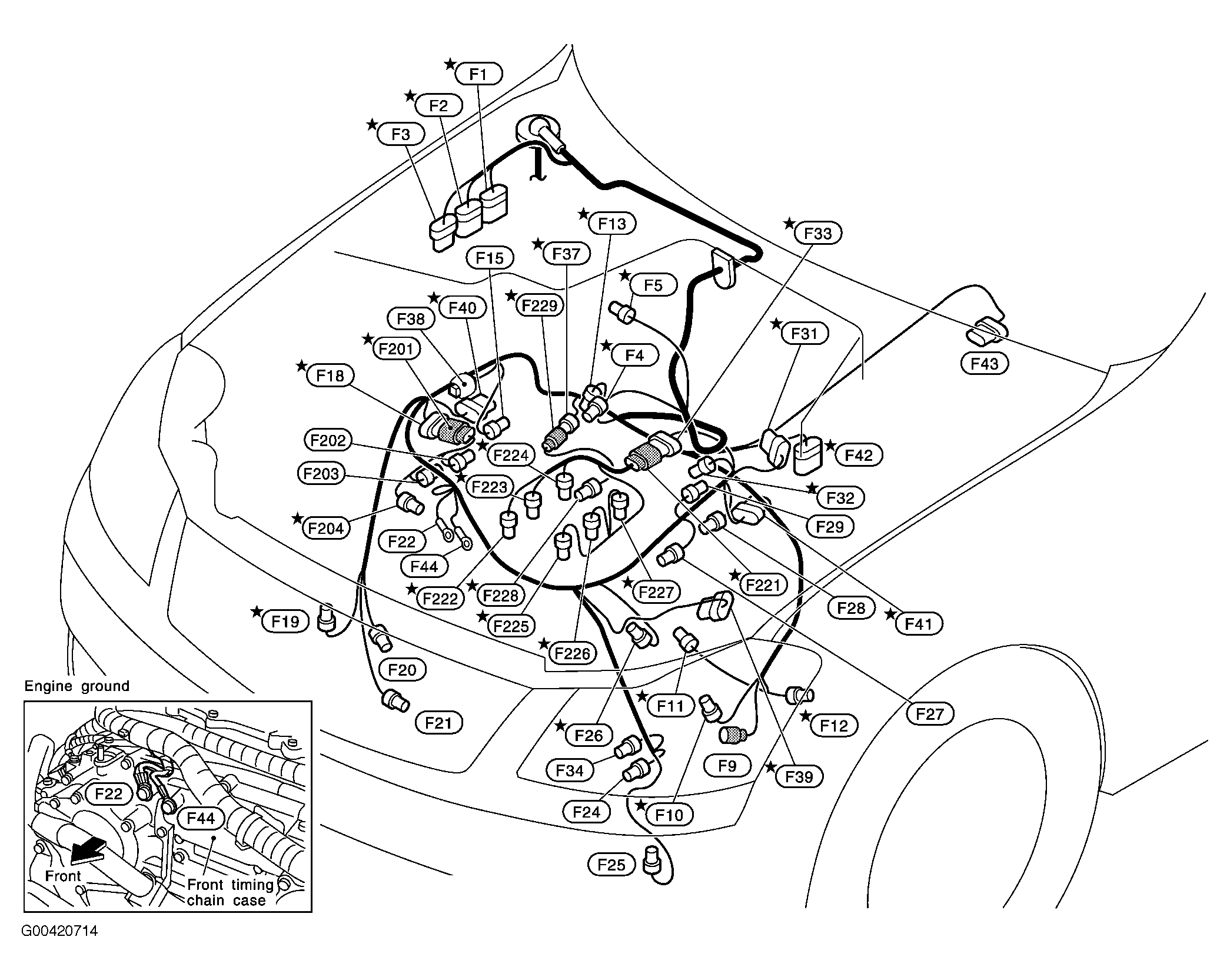

Fig 17: Engine (3.5L)

G00420714

Courtesy of NISSAN MOTOR CO., U.S.A.

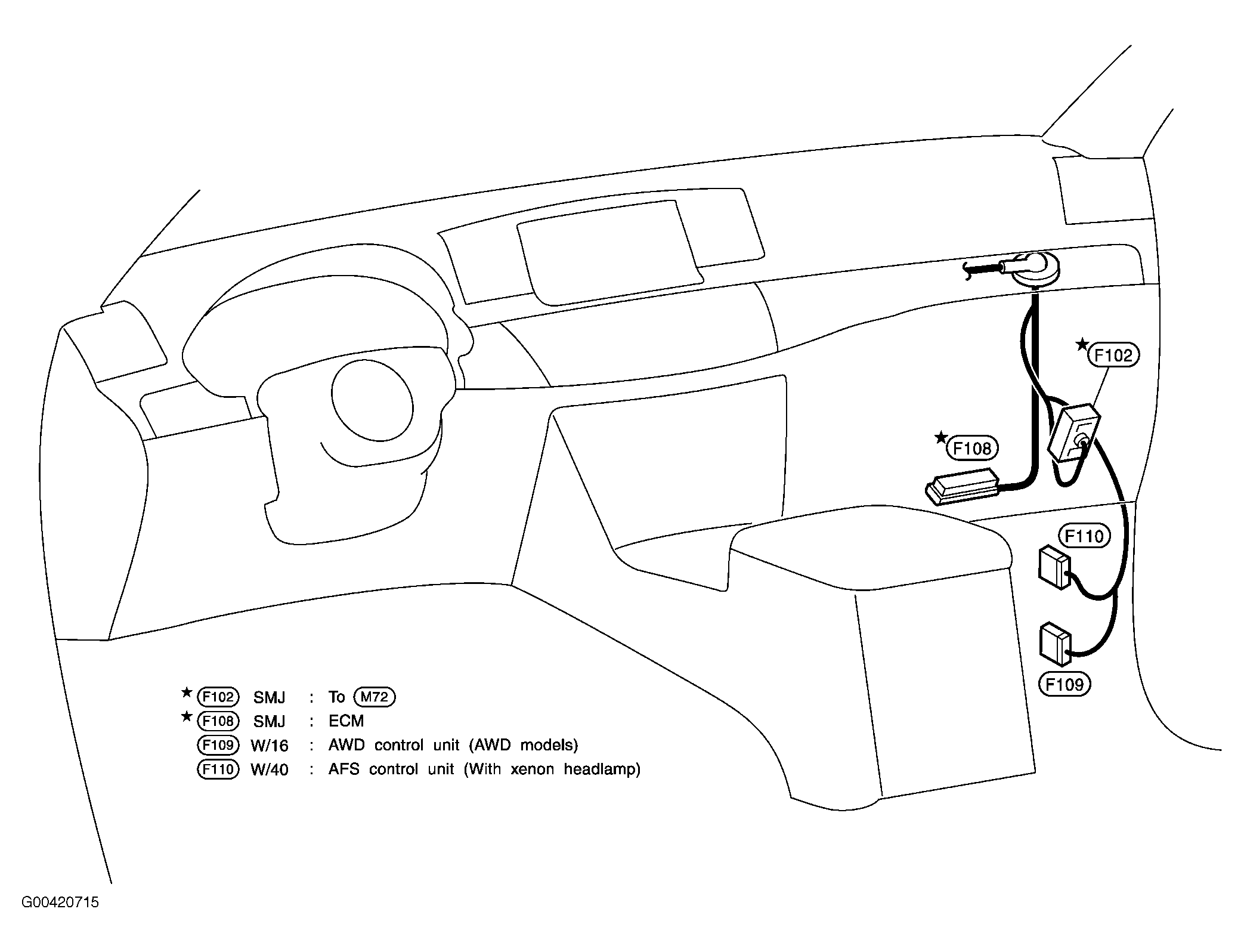

Fig 18: Right Kick Panel (3.5L)

G00420715

Courtesy of NISSAN MOTOR CO., U.S.A.

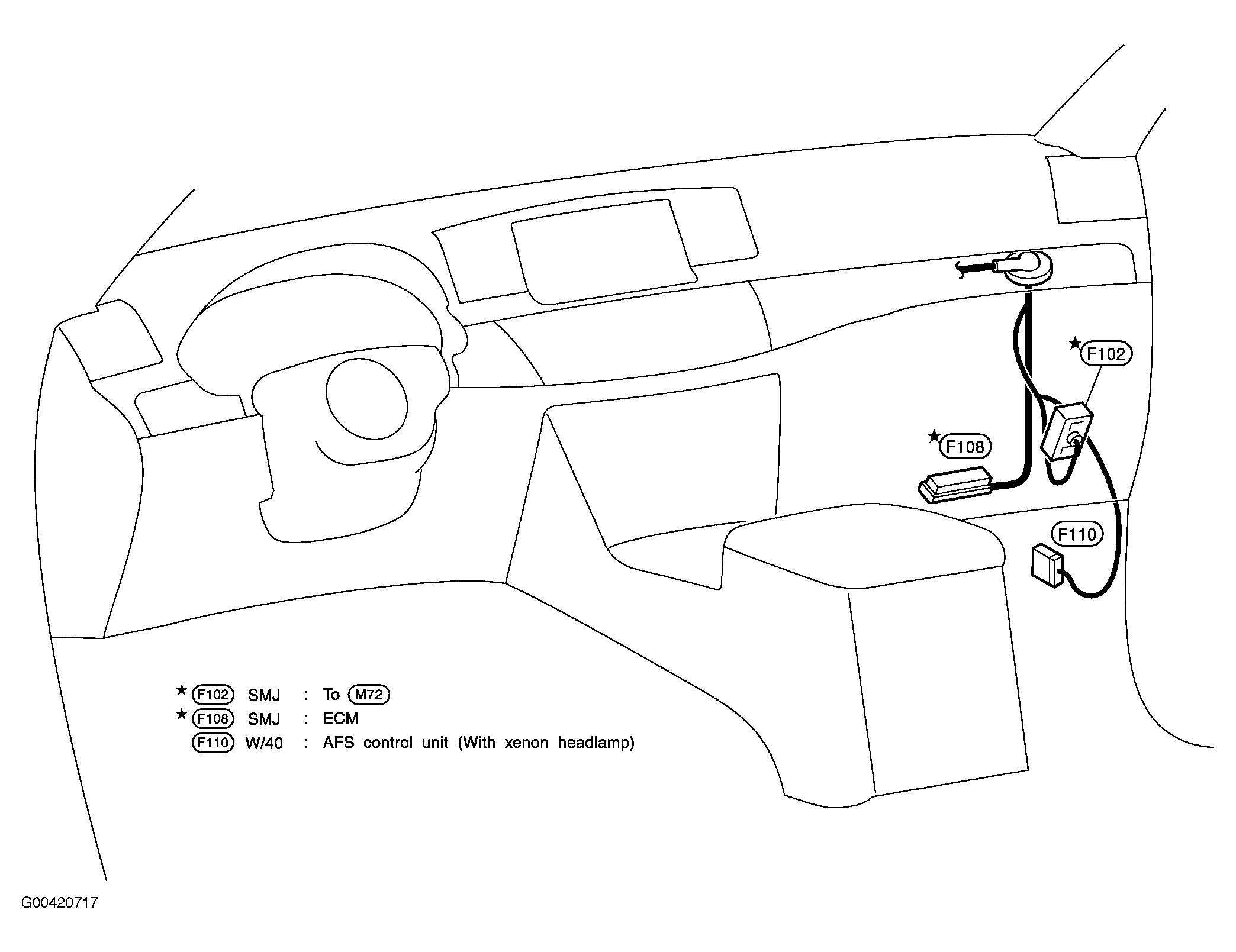

Fig 19: Right Kick Panel (4.5L)

G00420717

Courtesy of NISSAN MOTOR CO., U.S.A.

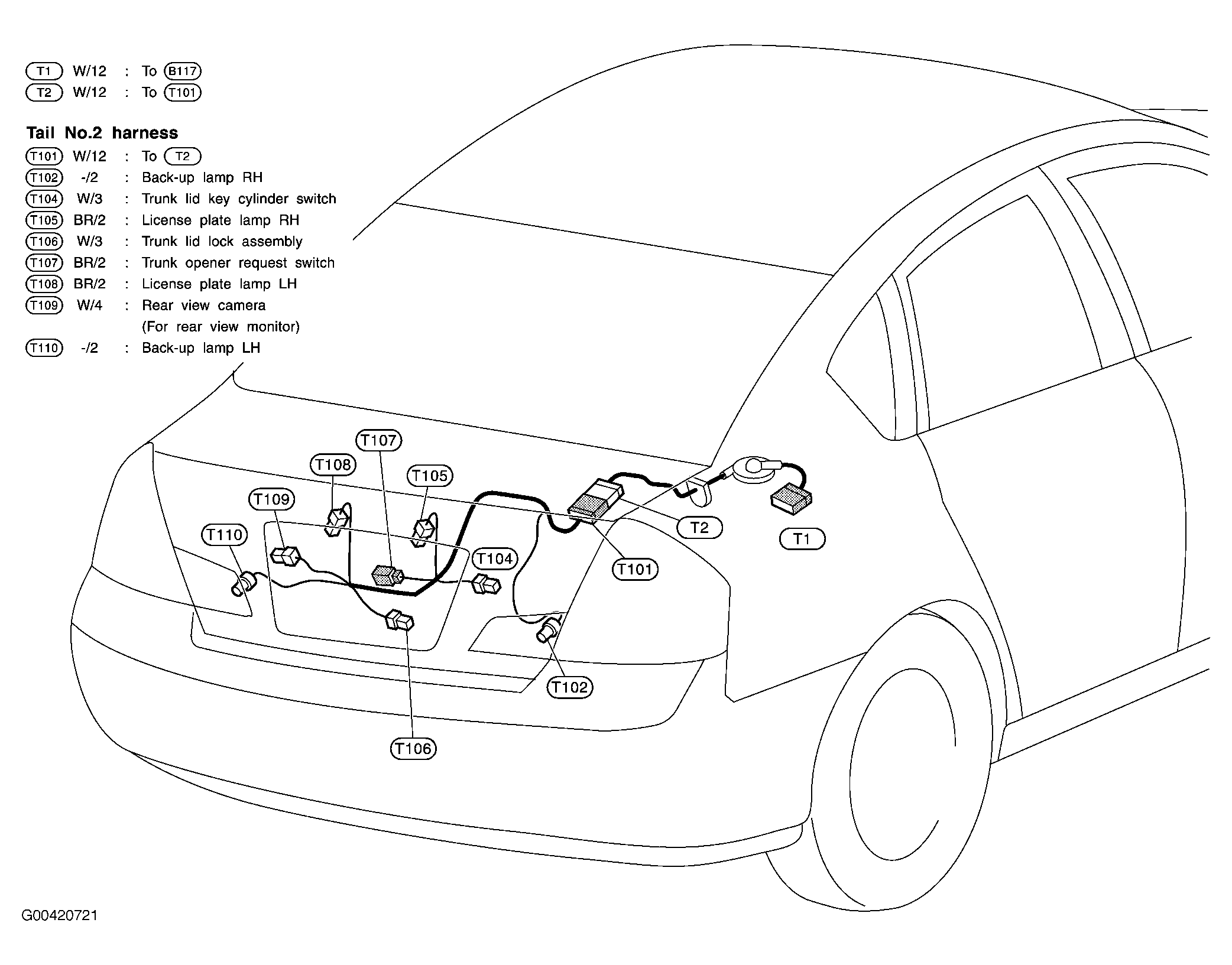

Fig 20: Luggage Compartment Lid

G00420721

Courtesy of NISSAN MOTOR CO., U.S.A.

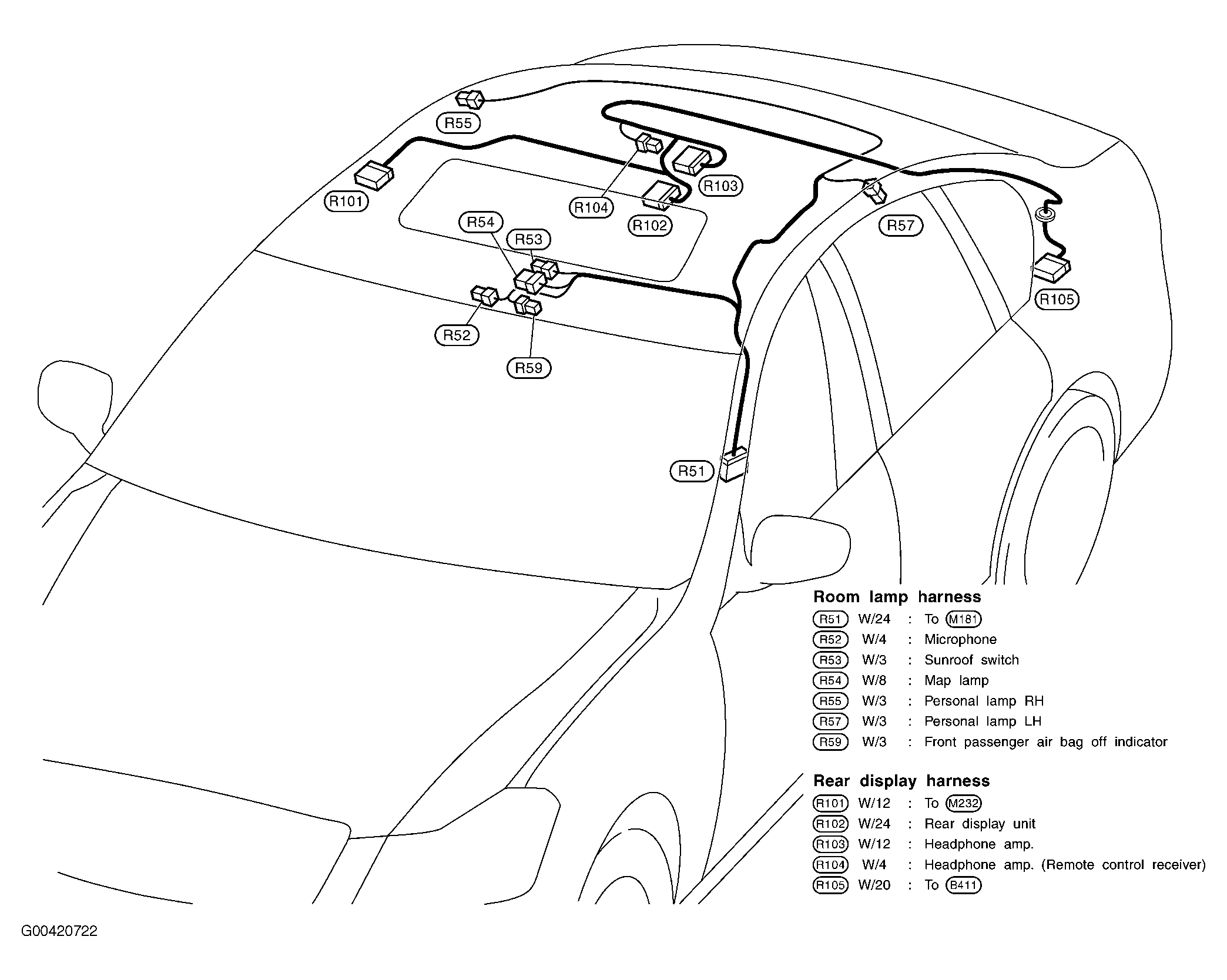

Fig 21: Roof

G00420722

Courtesy of NISSAN MOTOR CO., U.S.A.

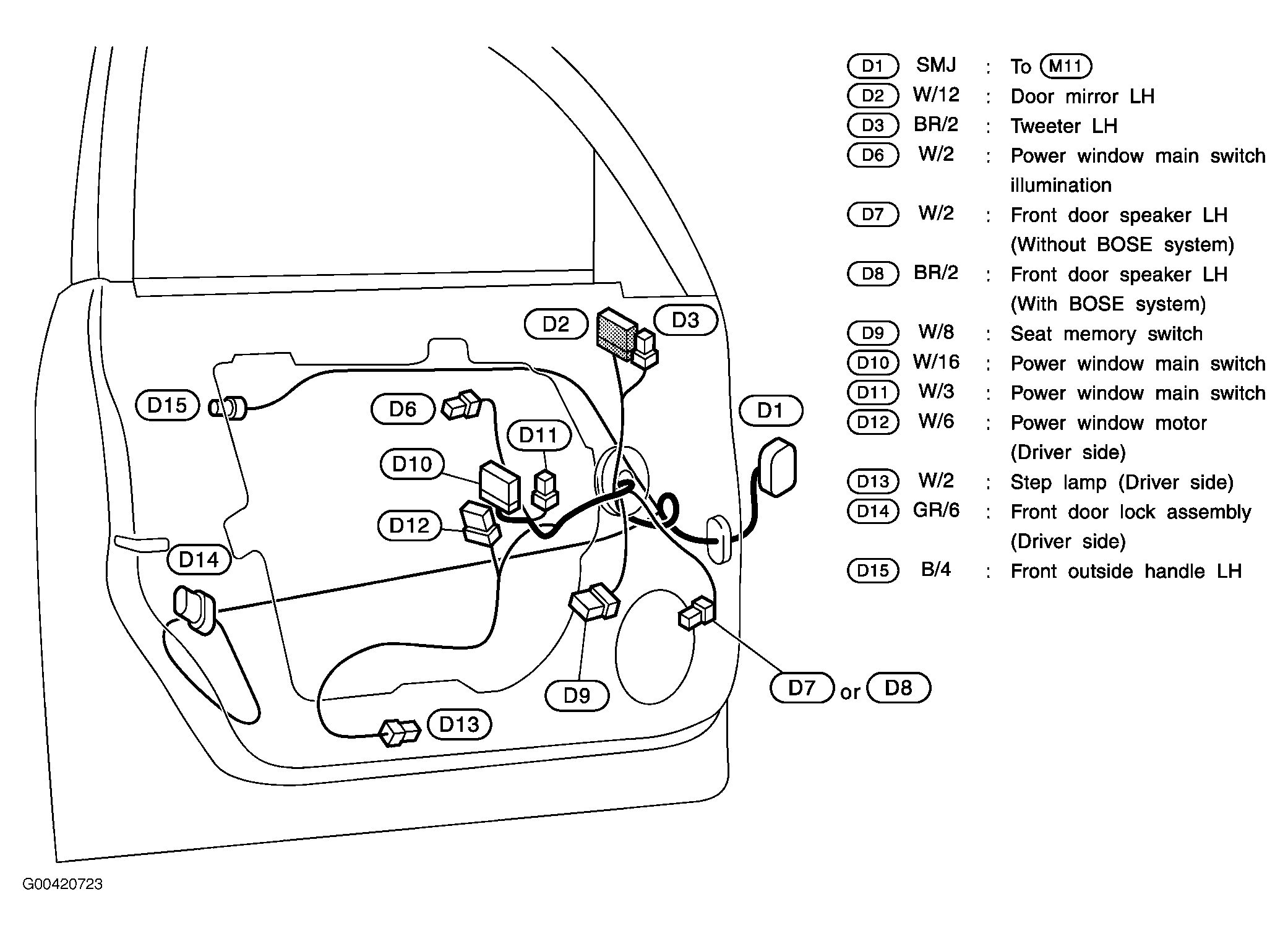

Fig 22: Left Front Door

G00420723

Courtesy of NISSAN MOTOR CO., U.S.A.

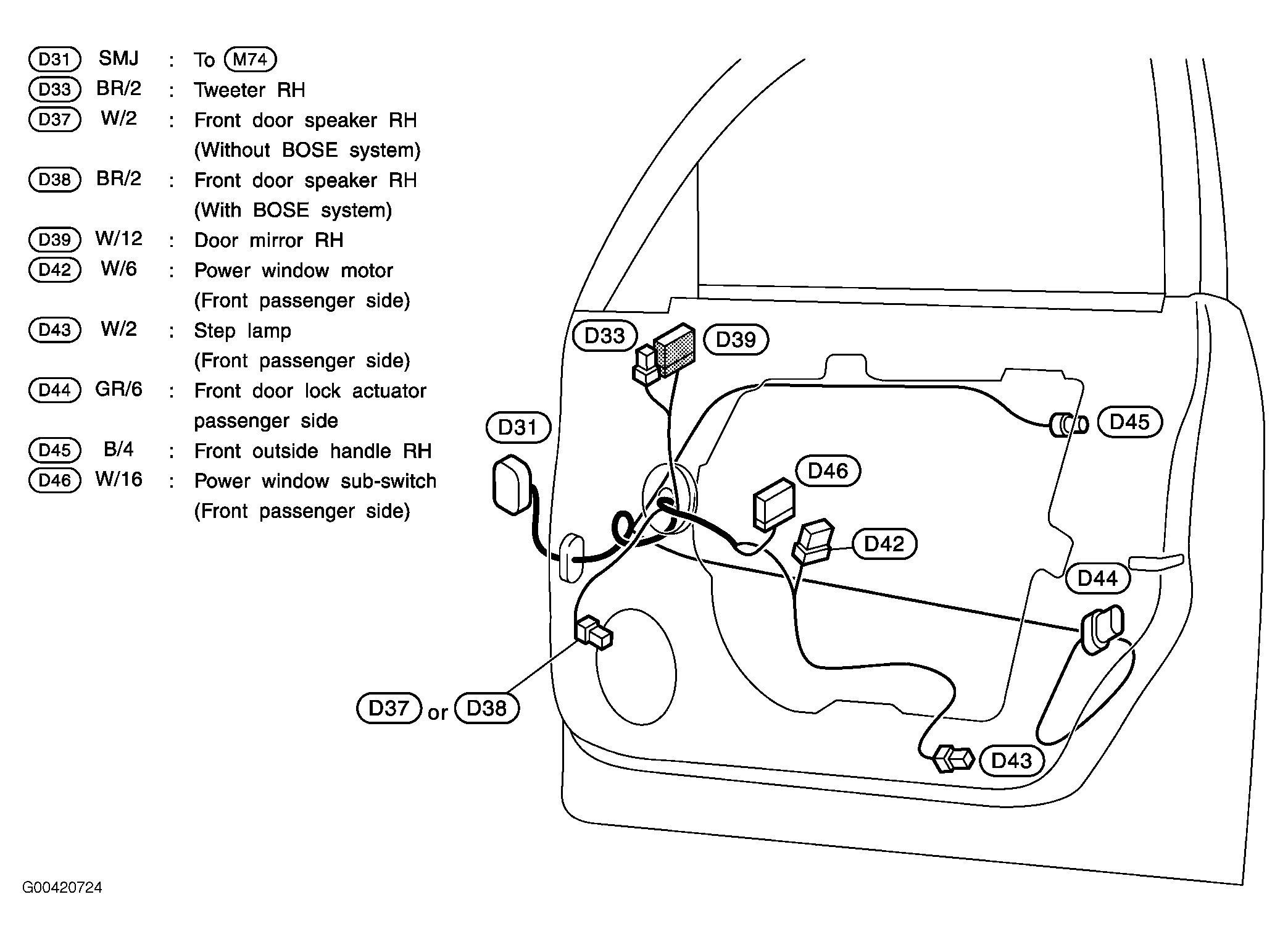

Fig 23: Right Front Door

G00420724

Courtesy of NISSAN MOTOR CO., U.S.A.

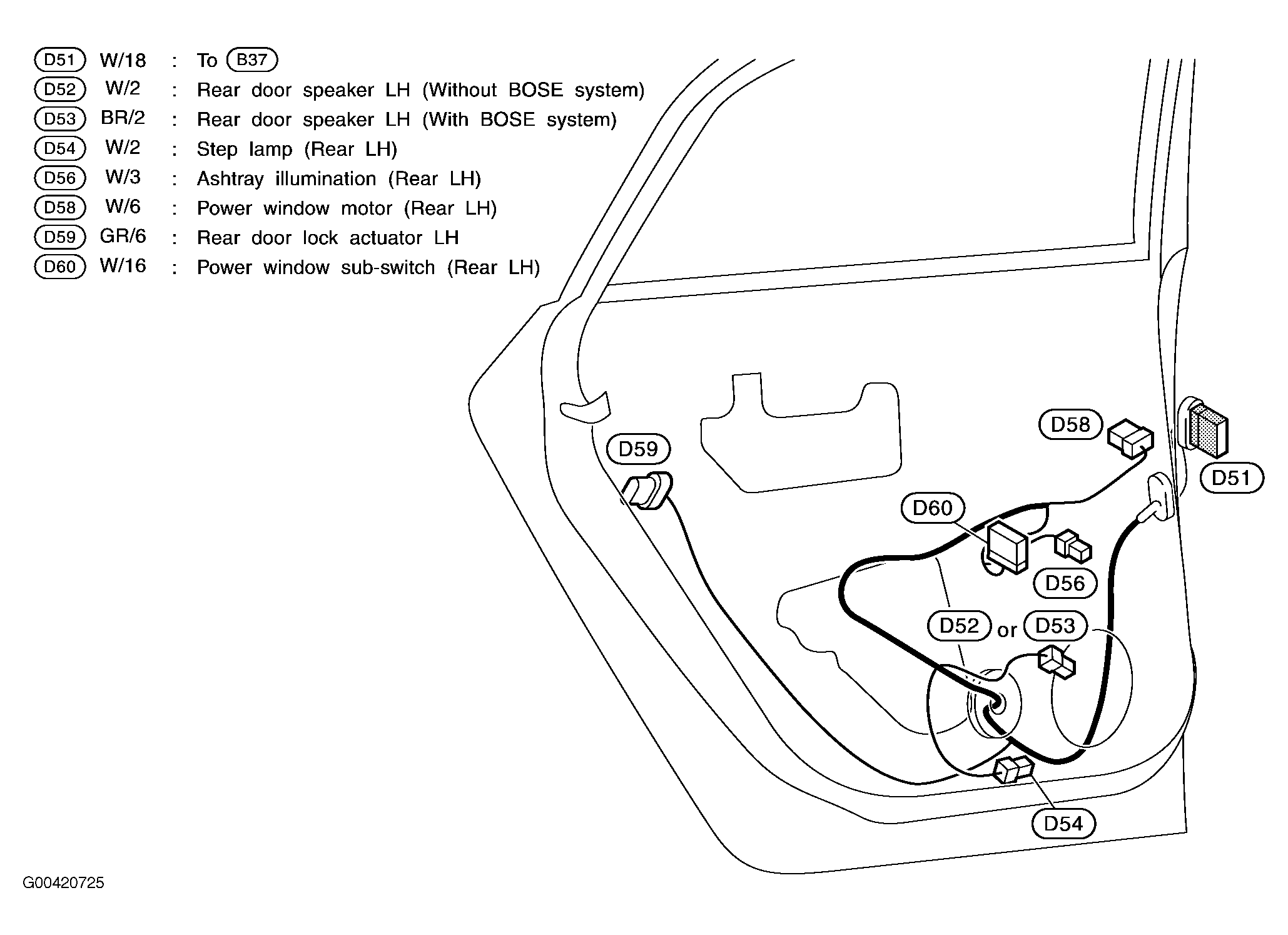

Fig 24: Left Rear Door

G00420725

Courtesy of NISSAN MOTOR CO., U.S.A.

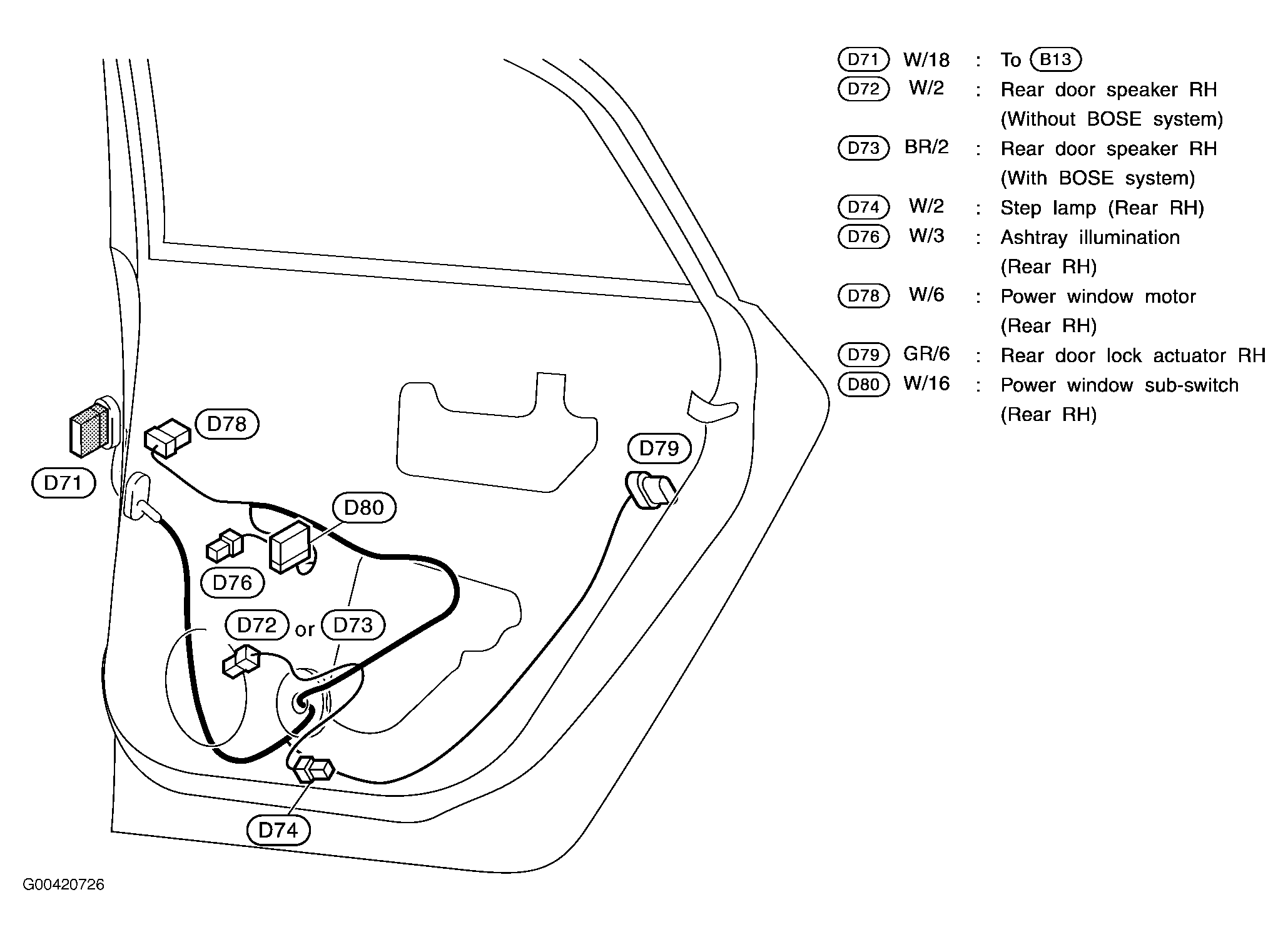

Fig 25: Right Rear Door

G00420726

Courtesy of NISSAN MOTOR CO., U.S.A.

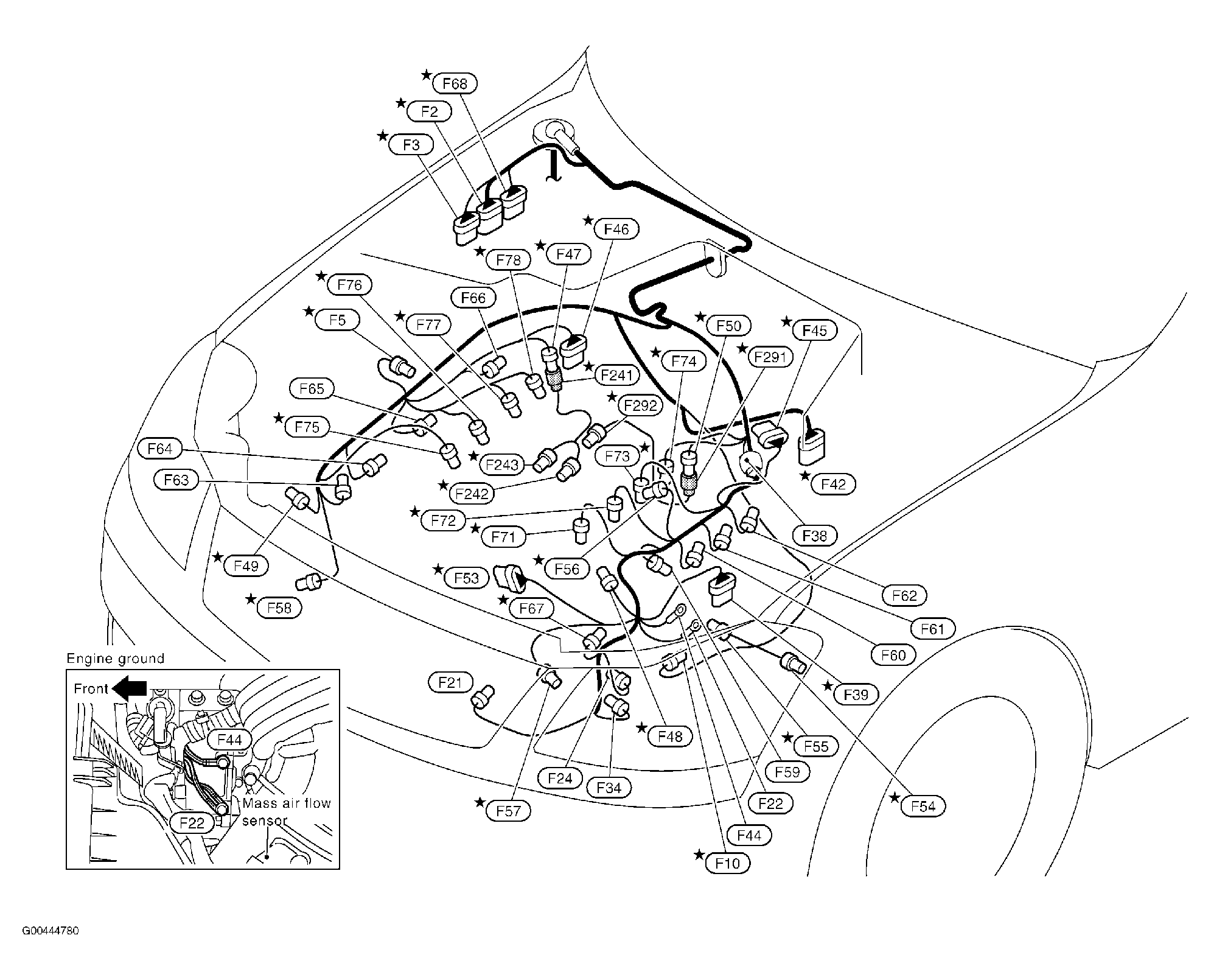

Fig 26: Engine (4.5L)

G00444780

Courtesy of NISSAN MOTOR CO., U.S.A.

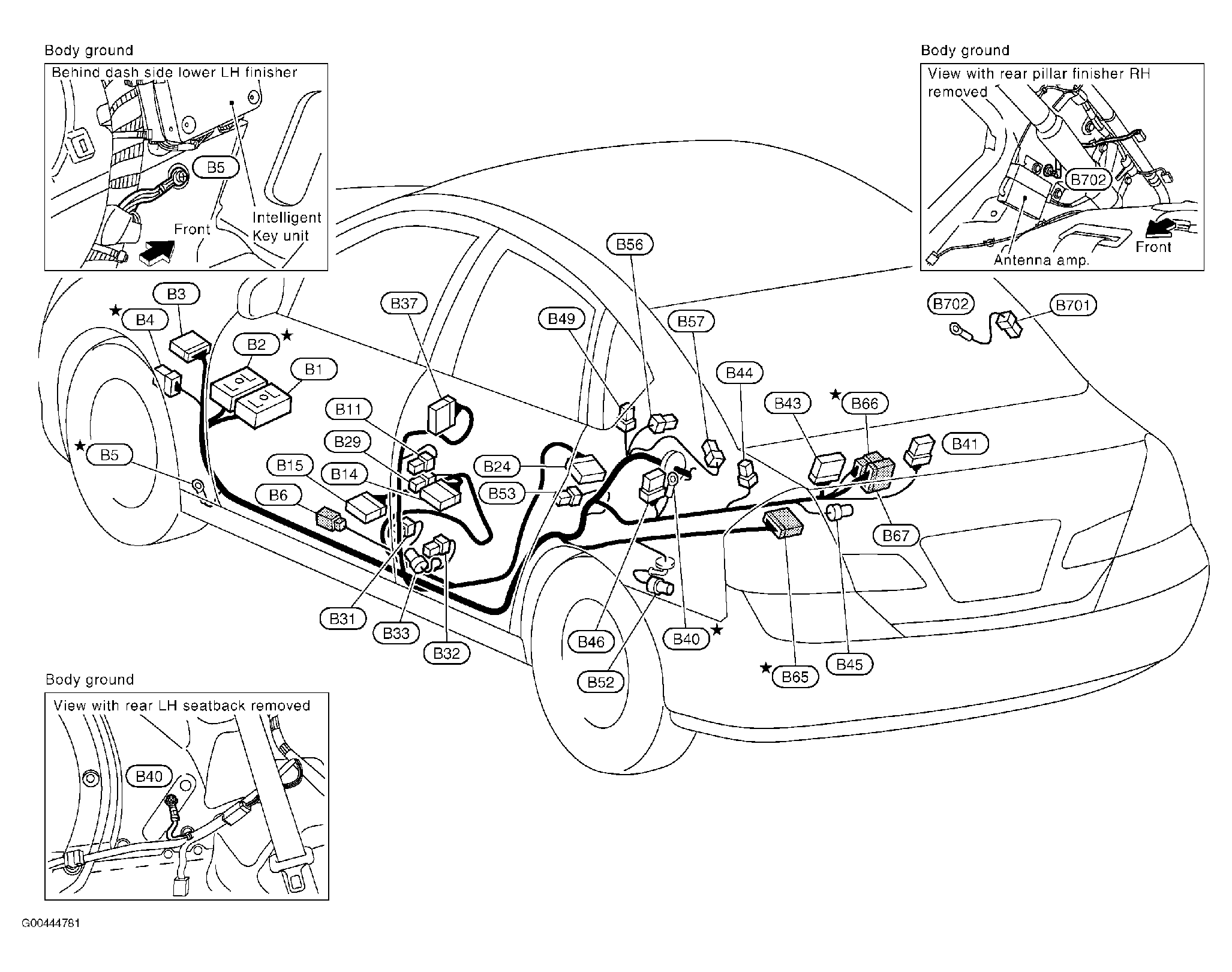

Fig 27: Left Side Of Vehicle

G00444781

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 28: Left Side Of Luggage Compartment

G00444782

Courtesy of NISSAN MOTOR CO., U.S.A.

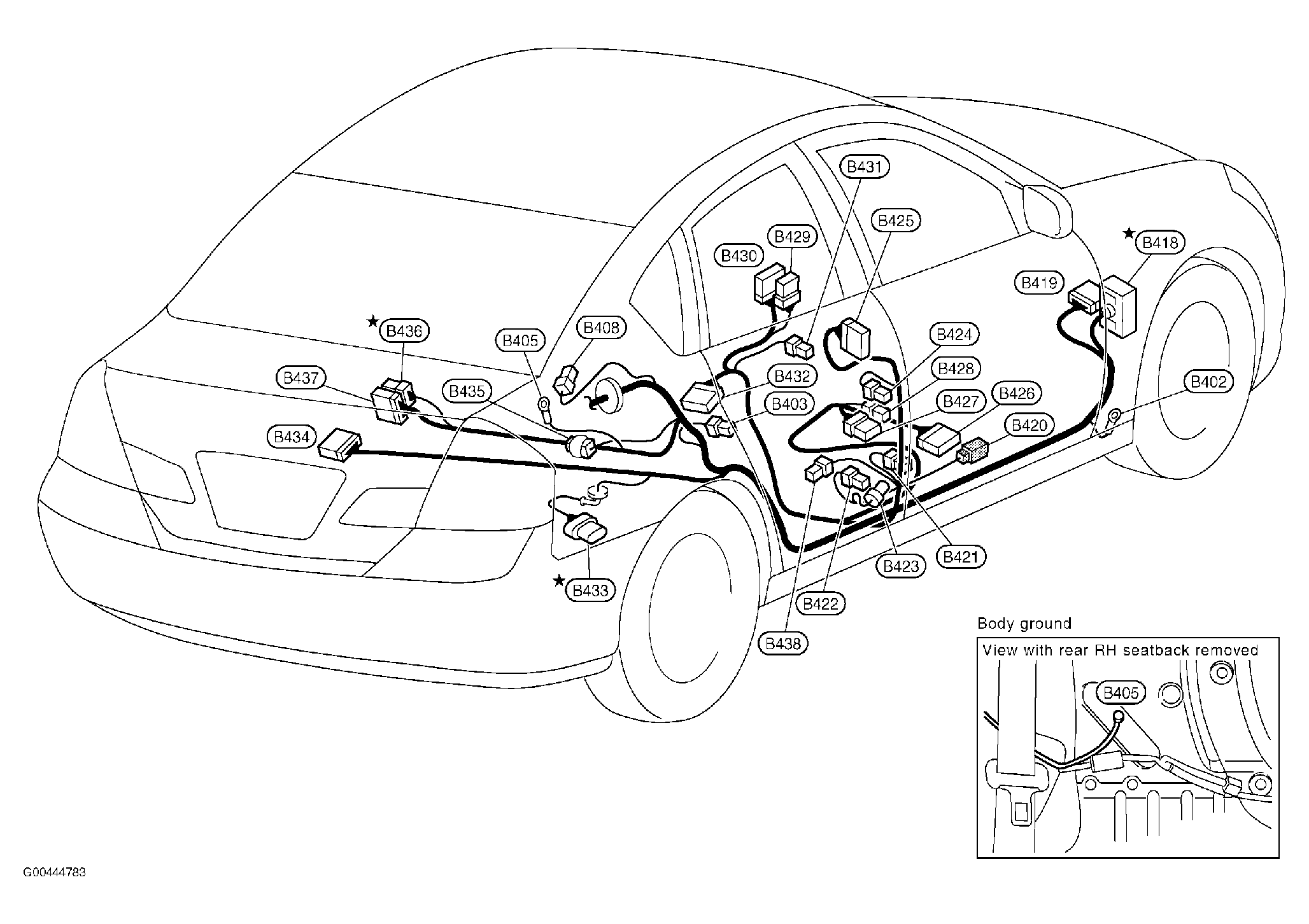

Fig 29: Right Side Of Vehicle

G00444783

Courtesy of NISSAN MOTOR CO., U.S.A.

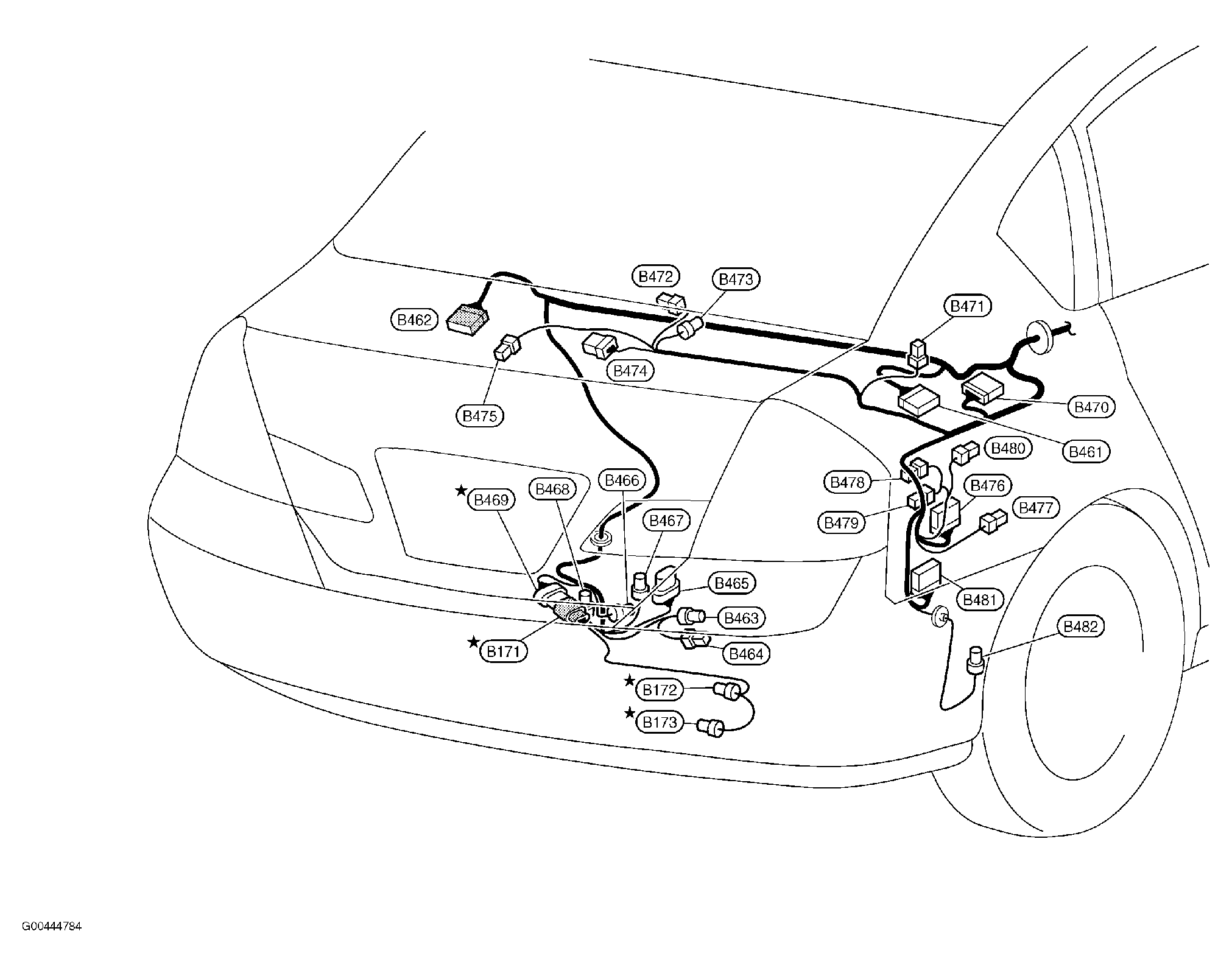

Fig 30: Right Side Of Luggage Compartment

G00444784

Courtesy of NISSAN MOTOR CO., U.S.A.
