Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Actuator & Electric Unit (Control Unit) | Left rear of engine compartment. See Figure. |
| AFS Control Unit | Behind right kick panel. See Figure. |
| Air Bag Diagnosis Sensor Unit | Under center console. See Figure. |

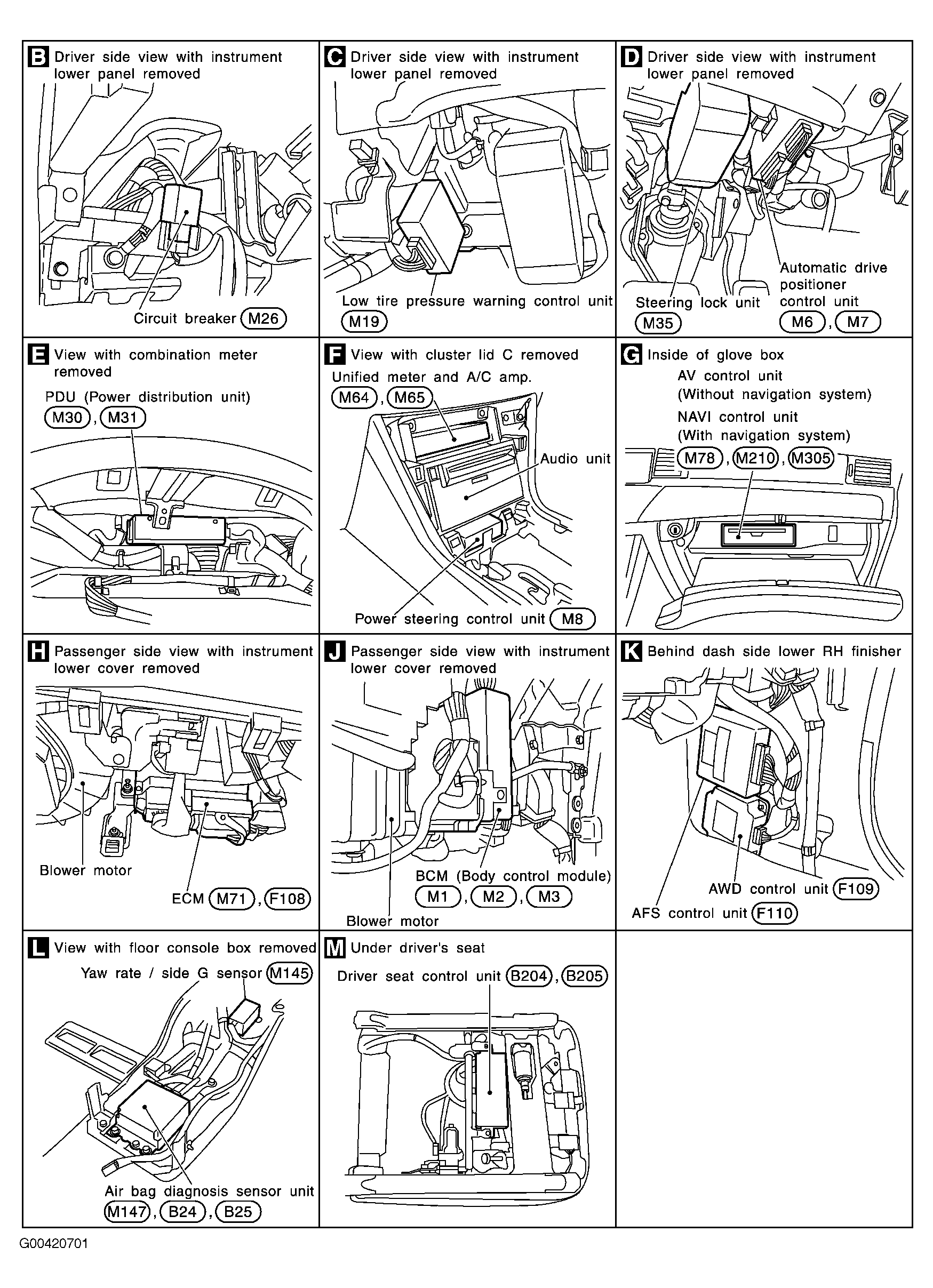

| Automatic Drive Positioner Control Unit | Near steering column. See Figure. |
| AV Control Unit | Behind left side of dash. See Figure. |
| AWD Control Unit | Behind right kick panel. See Figure. |
| BCM (Body Control Module) | Behind right side of dash. See Figure. |

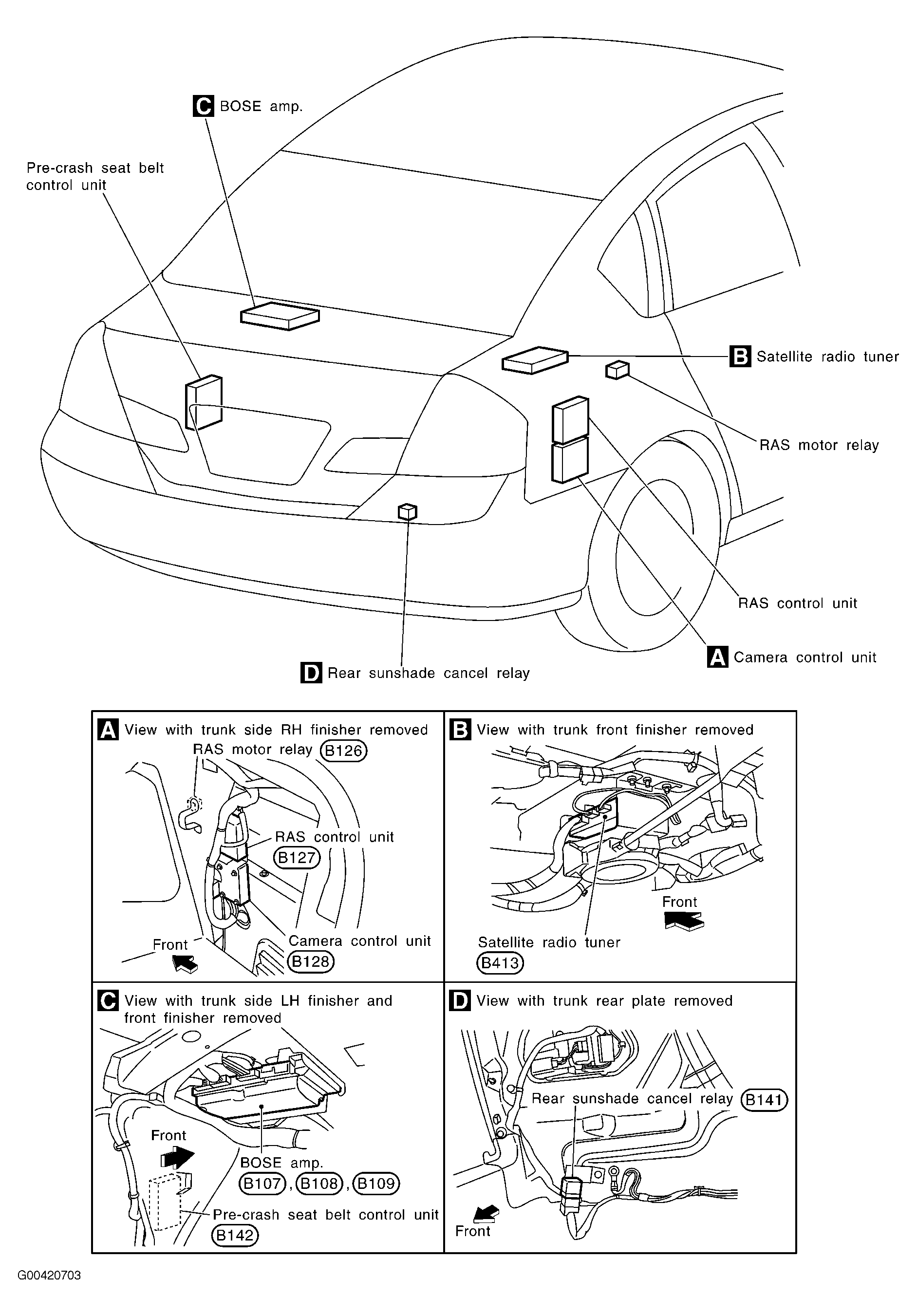

| Camera Control Unit | Right side of luggage compartment. See Figure. |
| Cooling Fan Control Module | Right side of radiator. See Figure. |
| ECM (Engine Control Module) | Behind right side of dash. See Figure. |

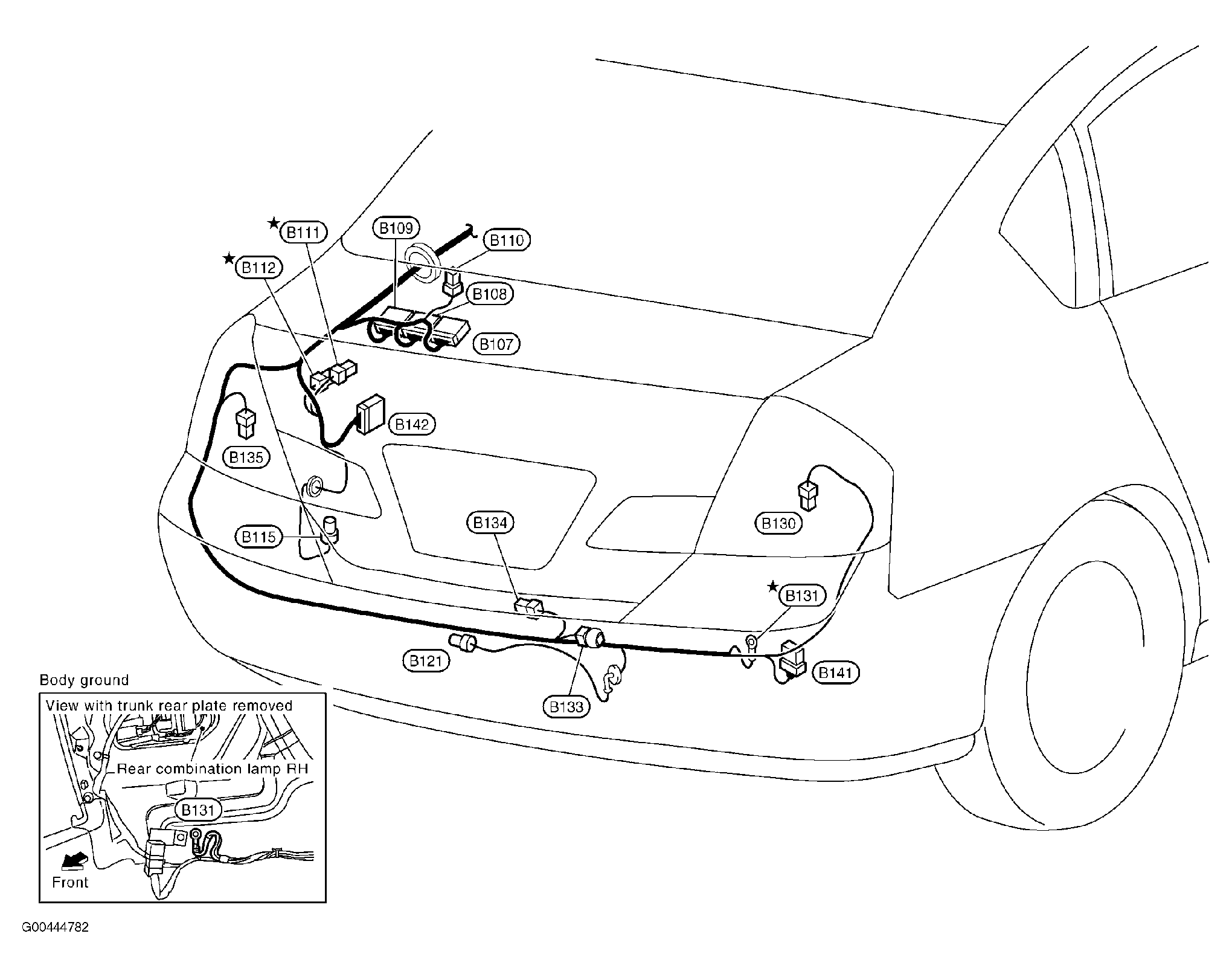

| Fuel Pump Control Module (B111) | Left side of luggage compartment. See Figure. |
| Intelligent Key Unit | Behind left kick panel. See Figure. |
| LDW Camera Unit | Front of roof. See Figure. |
| Low Tire Pressure Warning Control Unit | Behind left side of dash. See Figure. |
| NAVI Control Unit | Behind left side of dash. See Figure. |
| Power Distribution Unit | Behind instrument cluster. See Figure. |
| Power Steering Control Unit | Behind center of dash. See Figure. |
| Pre-Crash Seat Belt Control Unit | Left side of luggage compartment. See Figure. |
| RAS Control Unit | Right side of luggage compartment. See Figure. |
| Seat Control Unit (Driver's) | Under driver's seat. See Figure. |

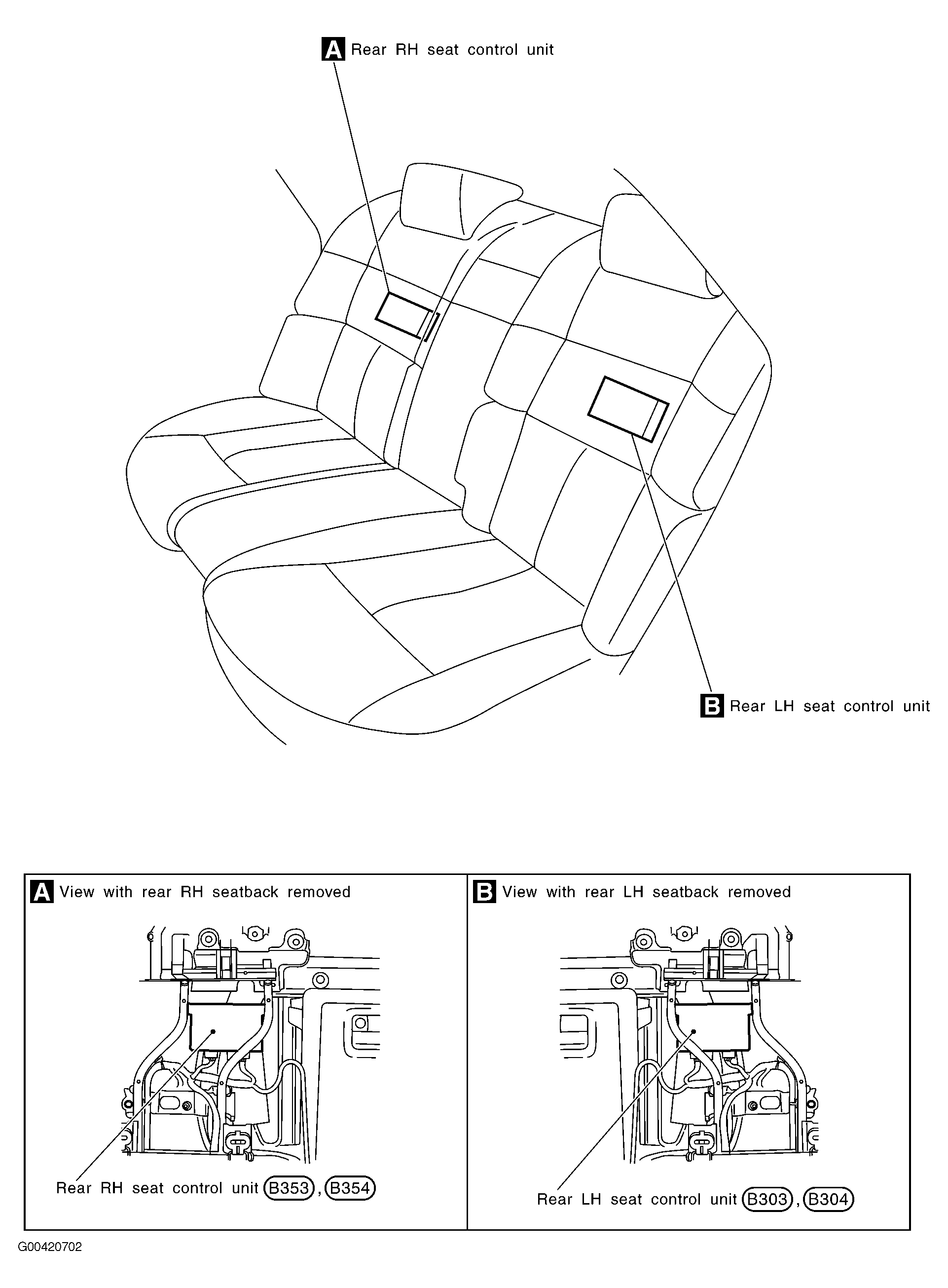

| Seat Control Unit (Left Rear) | Behind left rear seat. See Figure. |
| Seat Control Unit (Right Rear) | Behind right rear seat. See Figure. |
| Steering Lock Unit | On steering column. See Figure. |
