Cross-Sectional View (AWD Models)

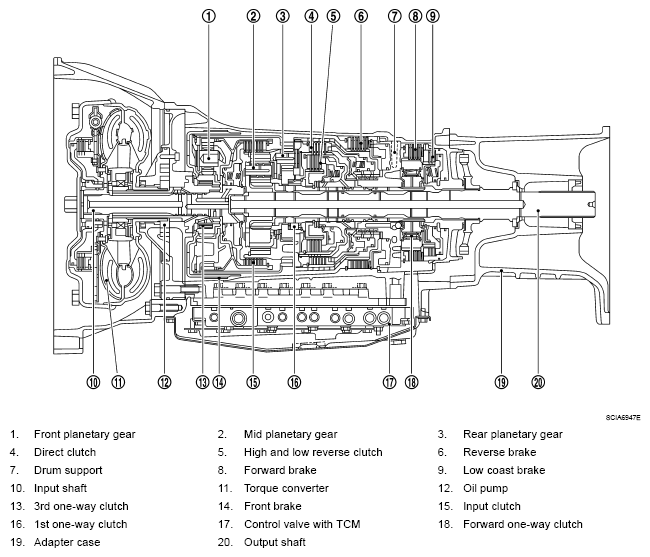

Fig 1: Identifying A/T Control System - Cross-Sectional View (AWD Models)

G05213168
