Automatic Transmission: Overhaul: Components

Refer to COMPONENTS .

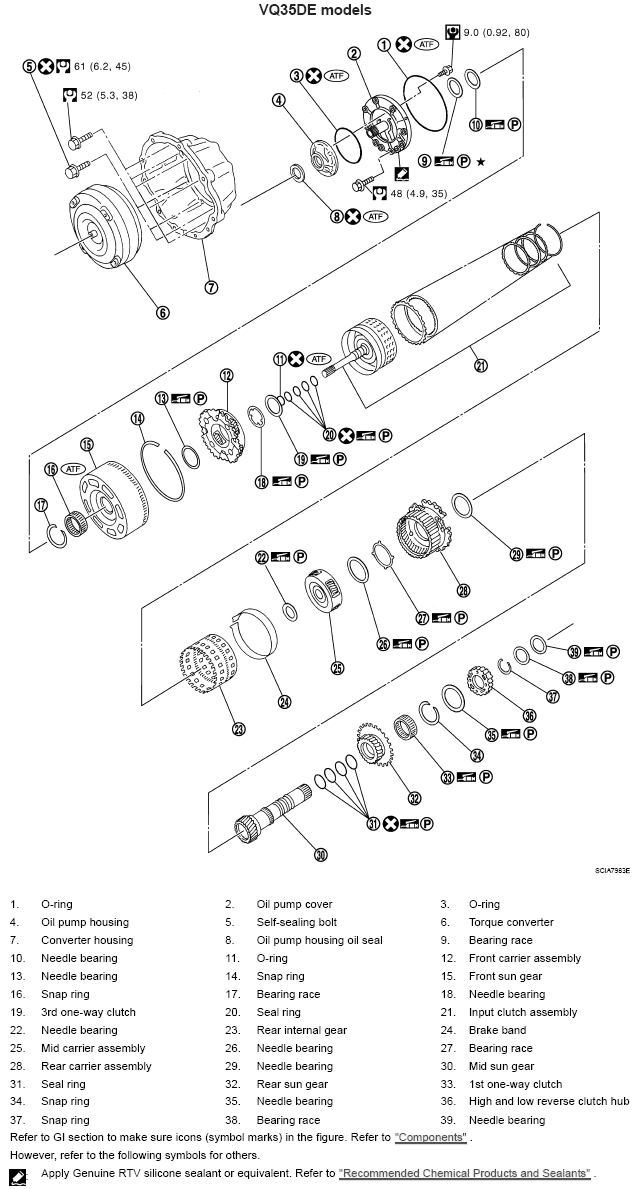

Fig 1: Exploded View Of Transmission Assembly With Torque Specification (VQ35DE Models)

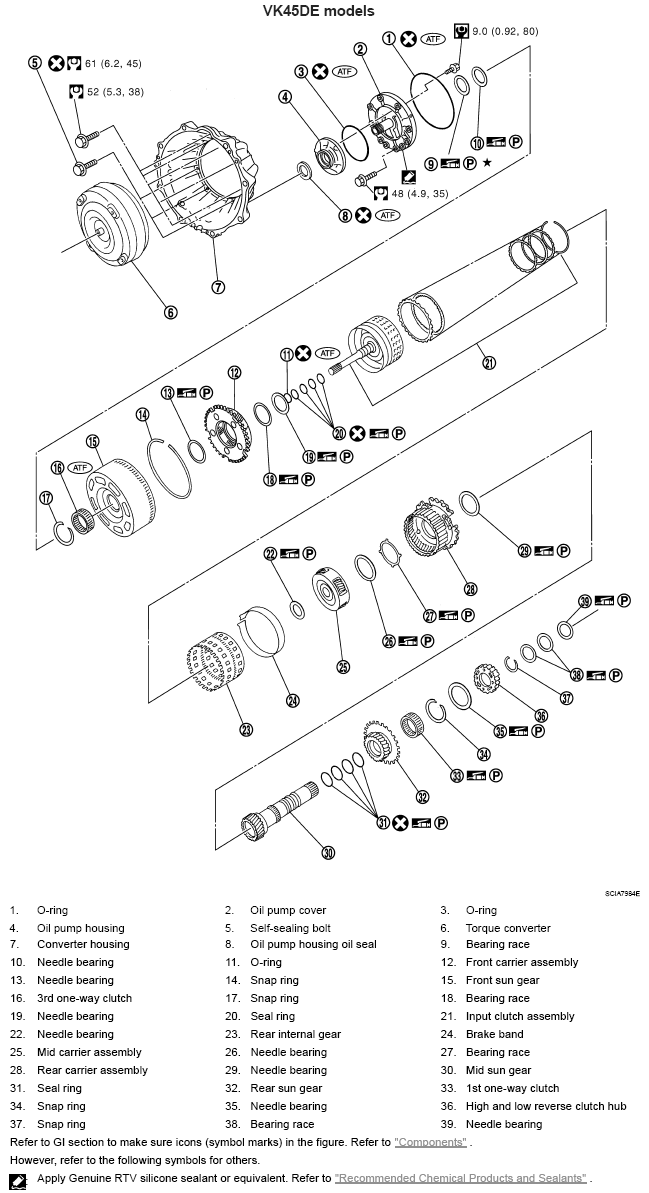

Fig 2: Exploded View Of Transmission Assembly With Torque Specification (VK45DE Models)

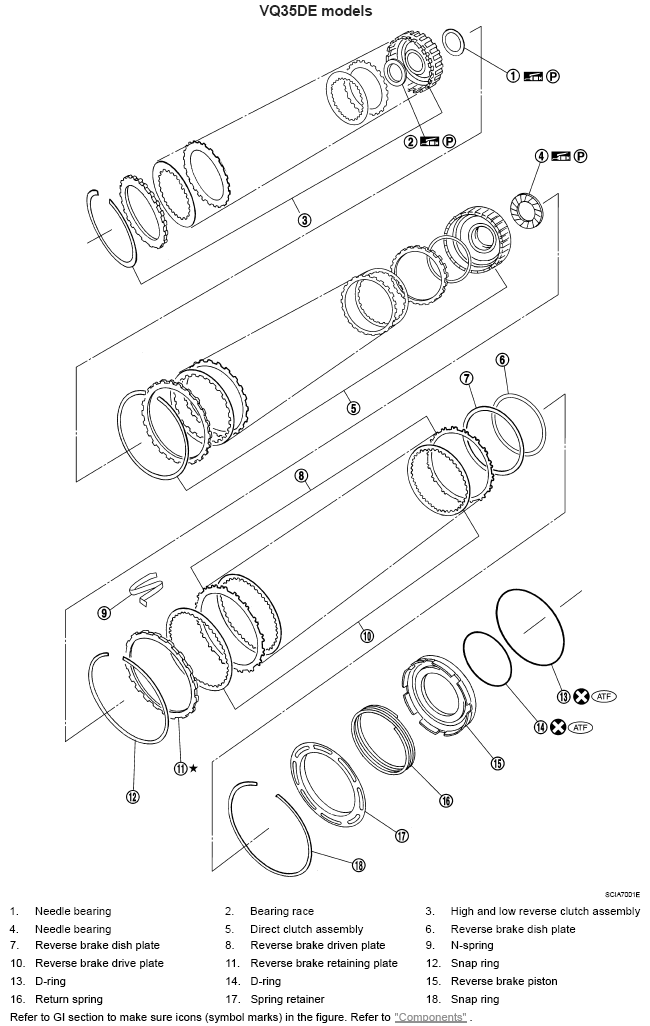

Fig 3: Identifying Transmission Assembly Bearings (VQ35DE Models)

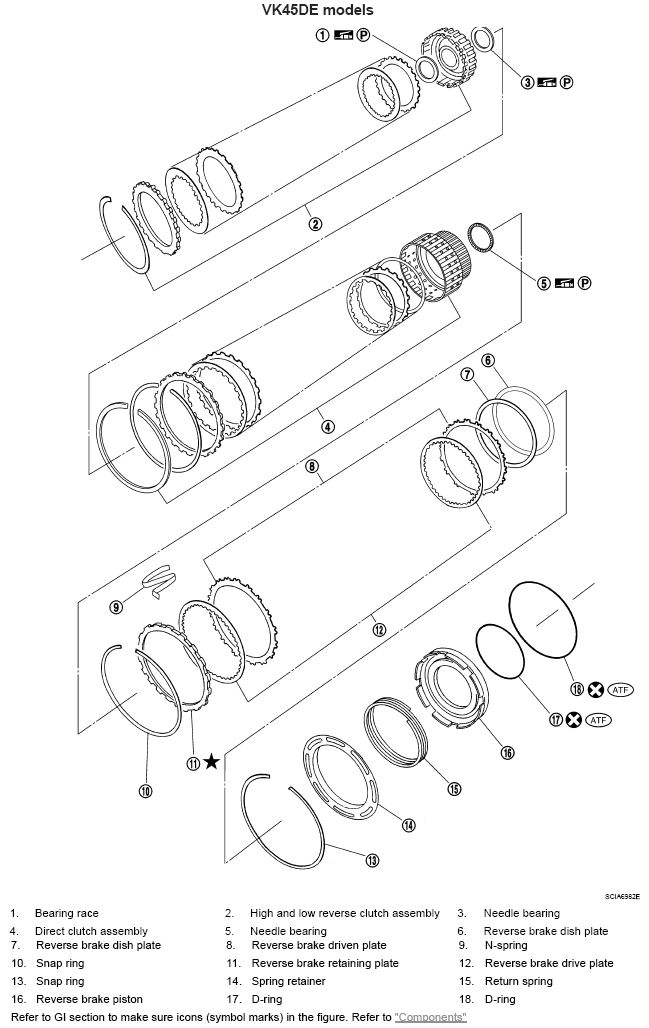

Fig 4: Identifying Transmission Assembly Bearings (VK45DE Models)

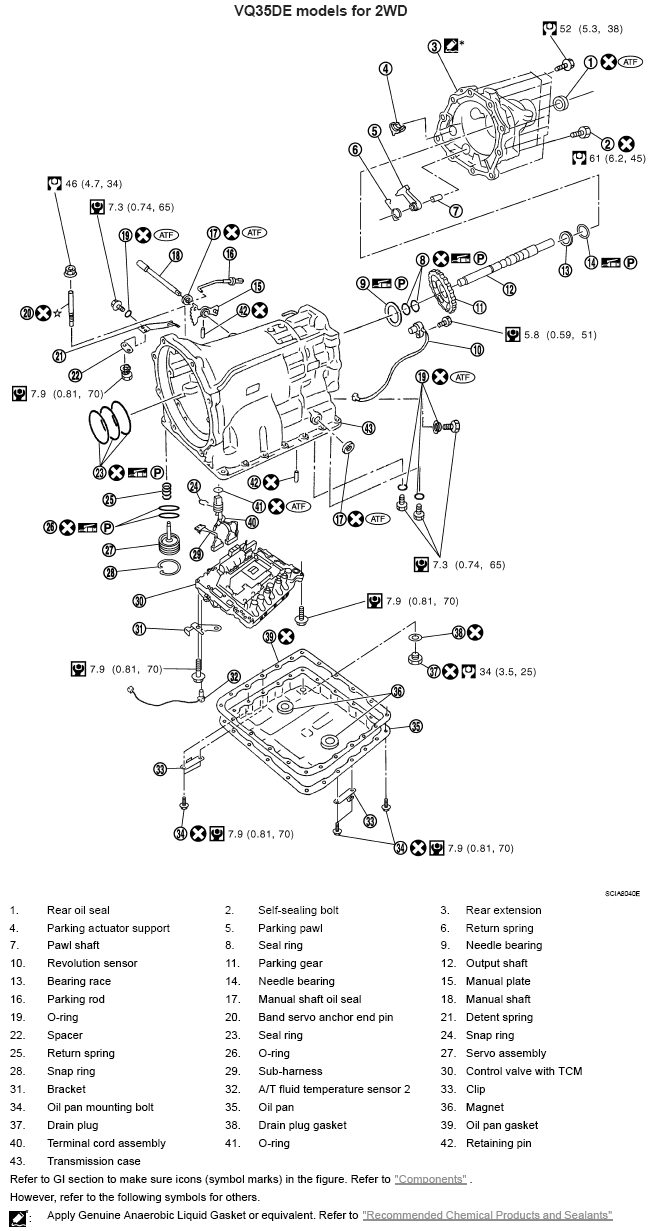

Fig 5: Identifying Transmission Assembly Components (VQ35DE Models For 2WD)

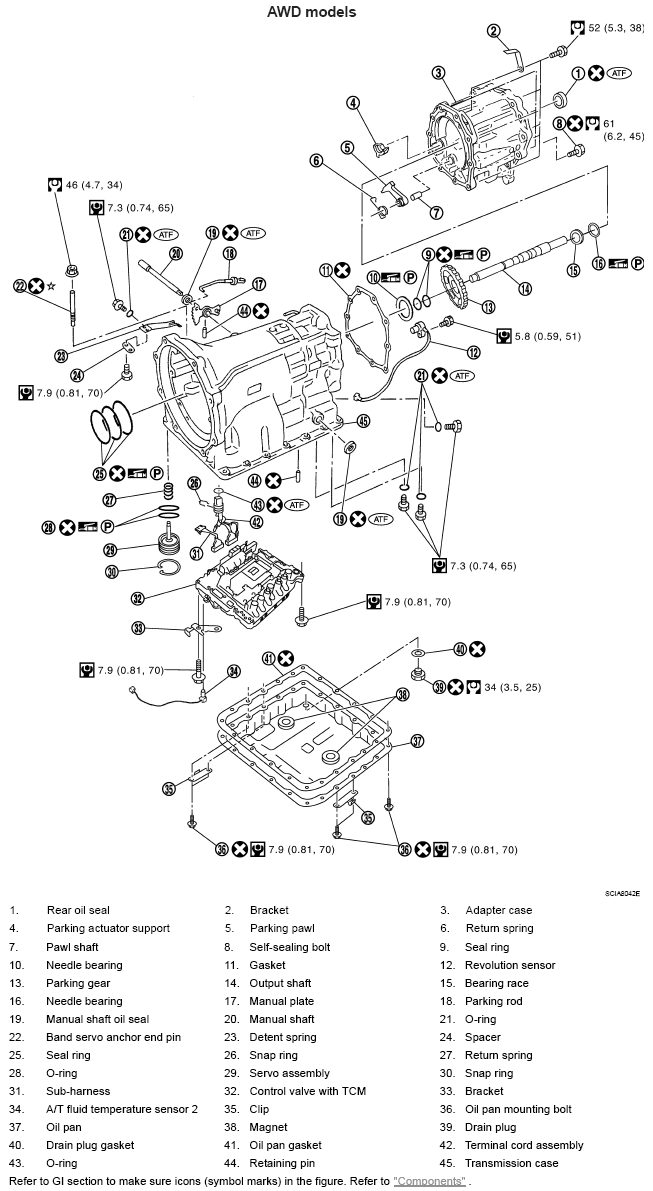

Fig 6: Identifying Transmission Assembly Components (AWD Models)

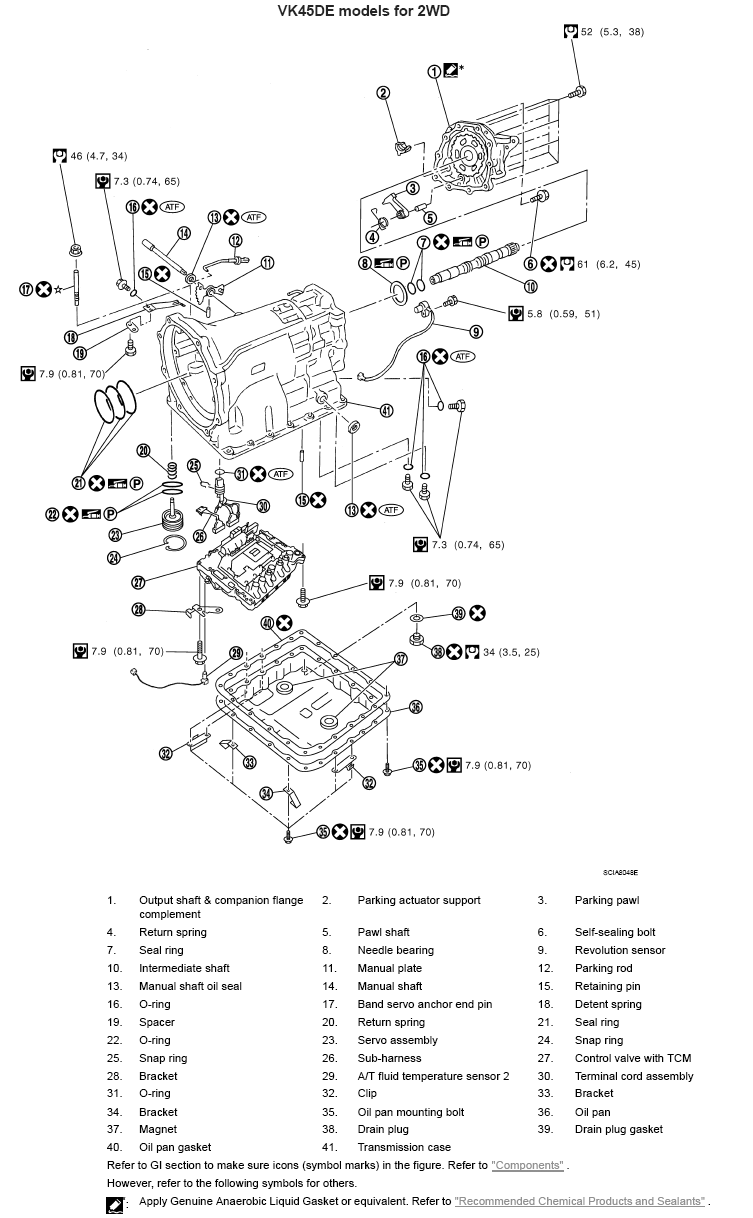

Fig 7: Identifying Transmission Assembly Components (VK45DE Models For 2WD)
