Control Device Components (2WD Models)

Refer to COMPONENTS .

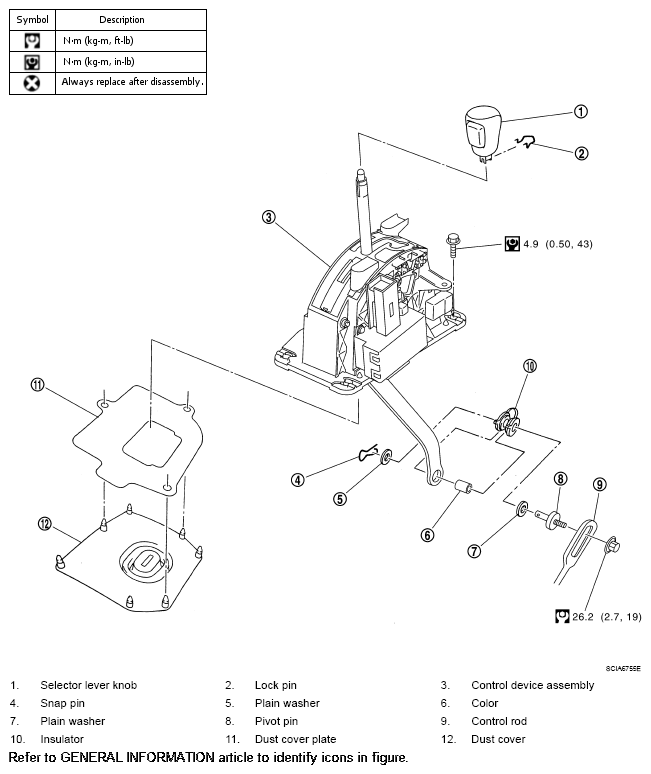

Fig 1: Control Device Replacement Components (2WD Models) With Torque Specifications
G05213334
