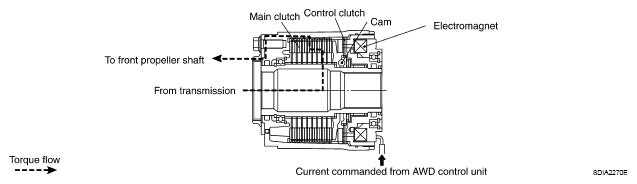

Operation Principle
- AWD control unit supplies command current to electric controlled coupling (AWD solenoid).
- Control clutch is engaged by electromagnet and torque is detected in control clutch.
- The cam operates in response to control clutch torque and applies pressure to main clutch.
- Main clutch transmits torque to front wheels according to pressing power.
- Transmission torque to front wheels is determined according to command current.
