Disassembly and Assembly: Components

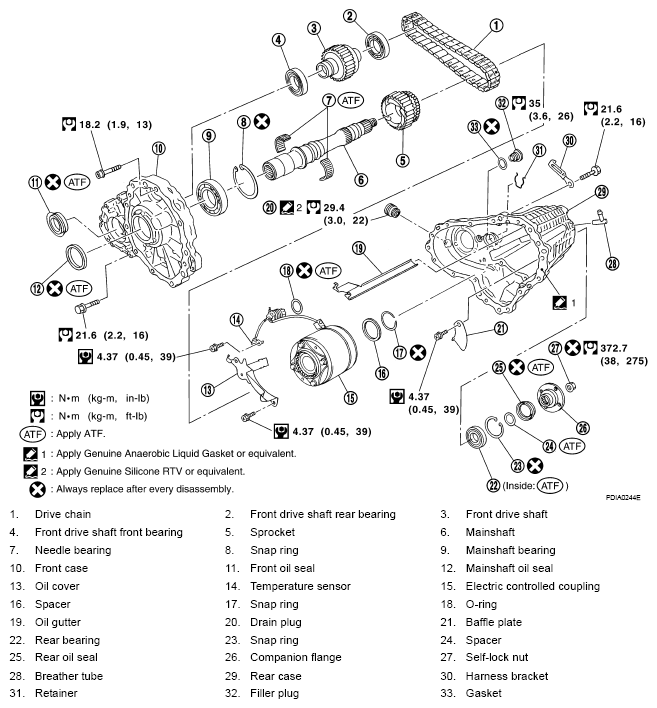

Fig 1: Exploded View Of Transfer Assembly Components With Torque Specifications

G05211298
