EVAP Canister

Tighten EVAP canister as shown in the figure.

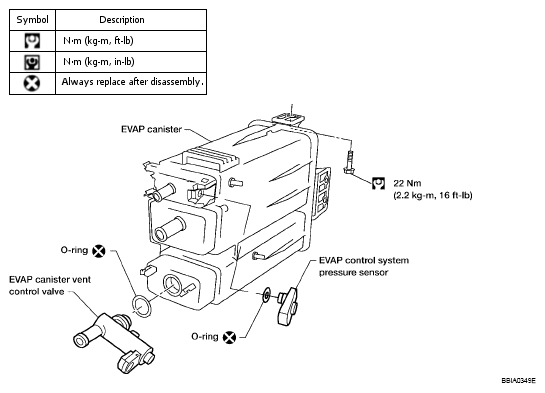

Fig 1: Identifying EVAP Canister Components
G04899997Courtesy of NISSAN NORTH AMERICA, INC.
