Engine Control Component Parts/Control Systems Application

Refer to Freeze Frame Data and 1st Trip Freeze Frame Data .

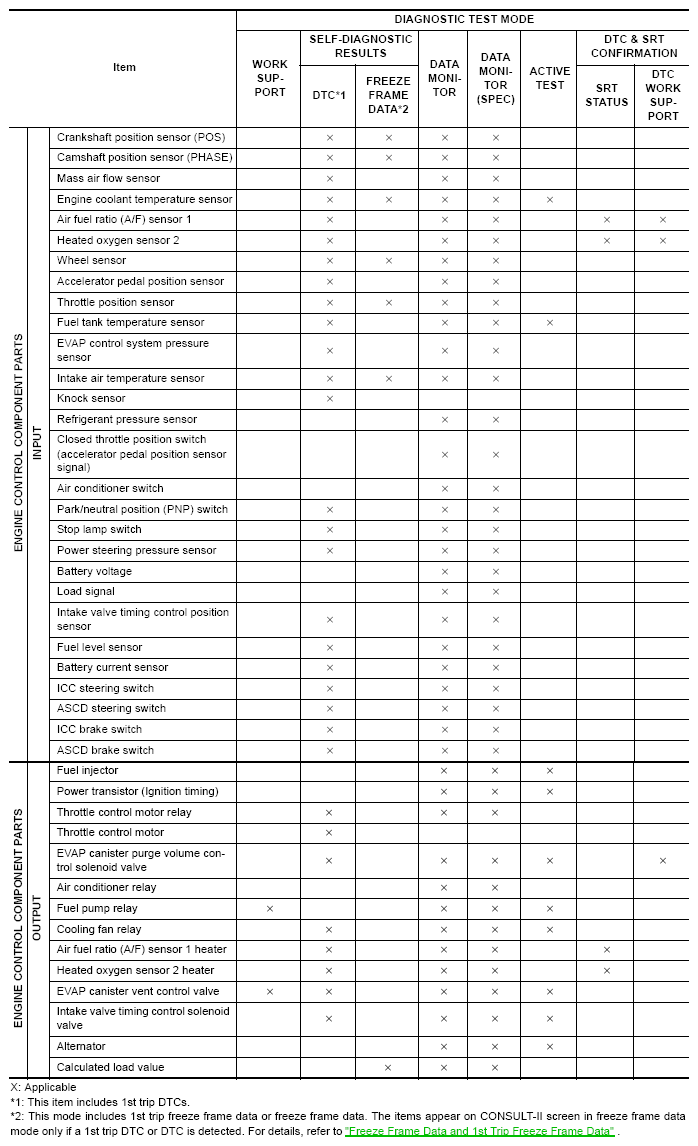

Fig 1: Engine Control Component Parts/Control Systems Application Chart
G05228485Courtesy of NISSAN NORTH AMERICA, INC.
