System - Basic Engine Control System

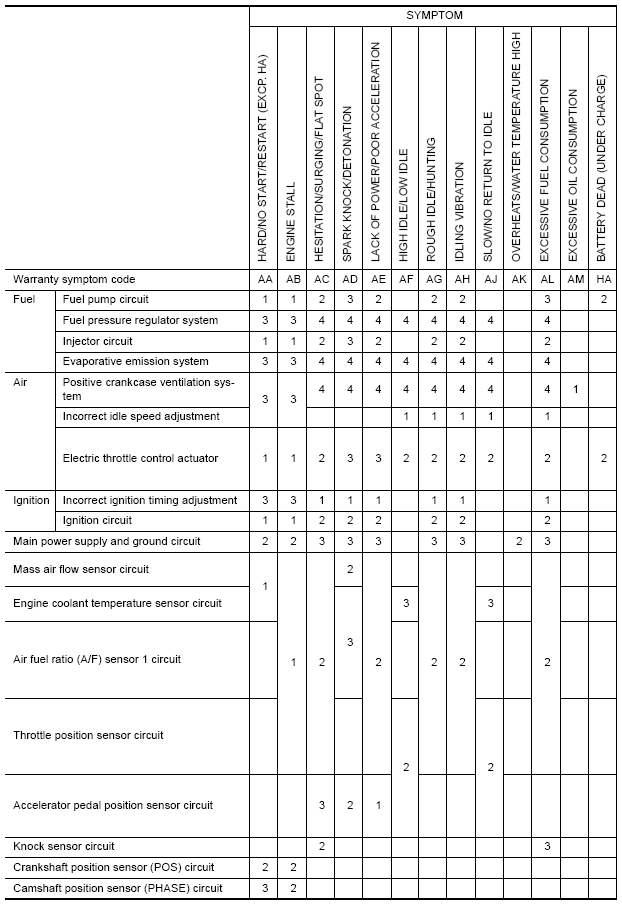

Fig 1: Symptom Matrix Chart (1 Of 4)
G05228450Courtesy of NISSAN NORTH AMERICA, INC.

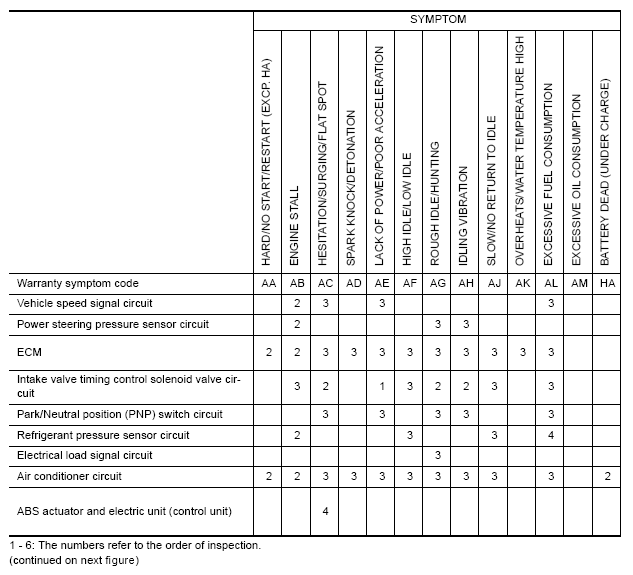

Fig 2: Symptom Matrix Chart (2 Of 4)
G05228451Courtesy of NISSAN NORTH AMERICA, INC.
