Exploded View: Disassembly

Type: A3TJ1991

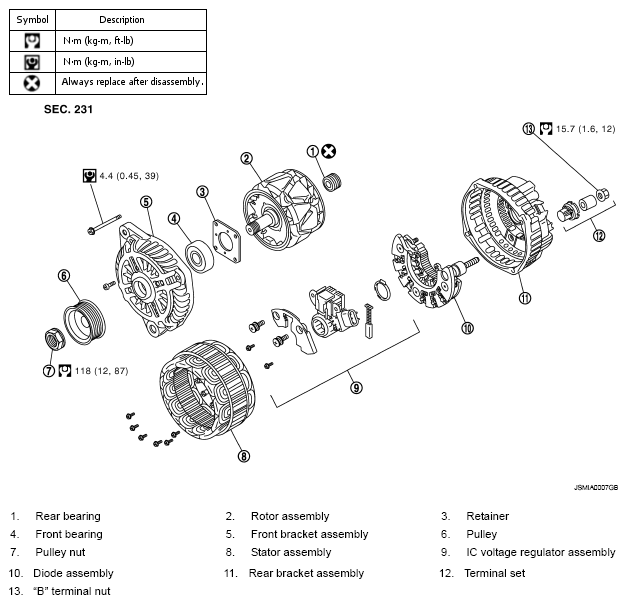

Fig 1: Identifying Alternator Replacement Components With Torque Specifications
G05731062Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols in the figure.
