System - Engine Mechanical & Other

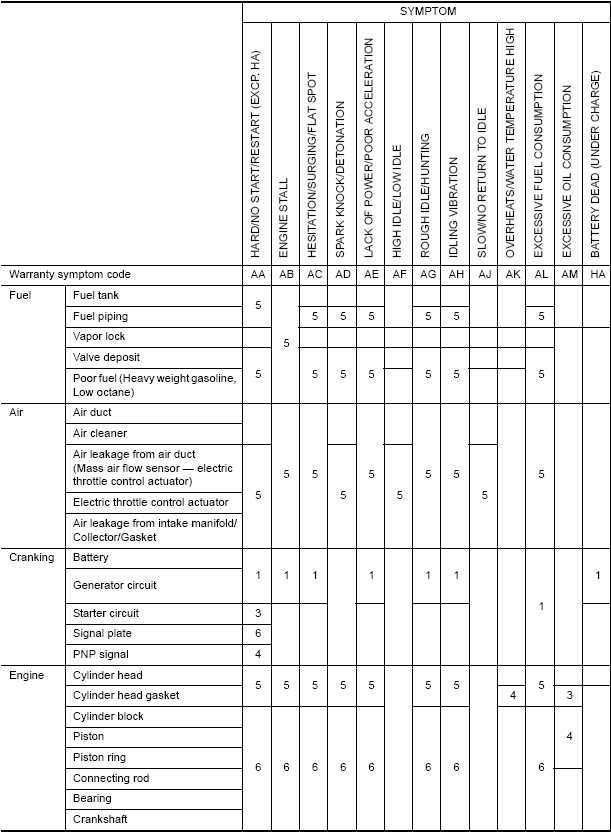

Fig 1: Engine Mechanical & Other Symptoms Reference Chart (1 Of 2)
G05726675Courtesy of NISSAN MOTOR CO., U.S.A.

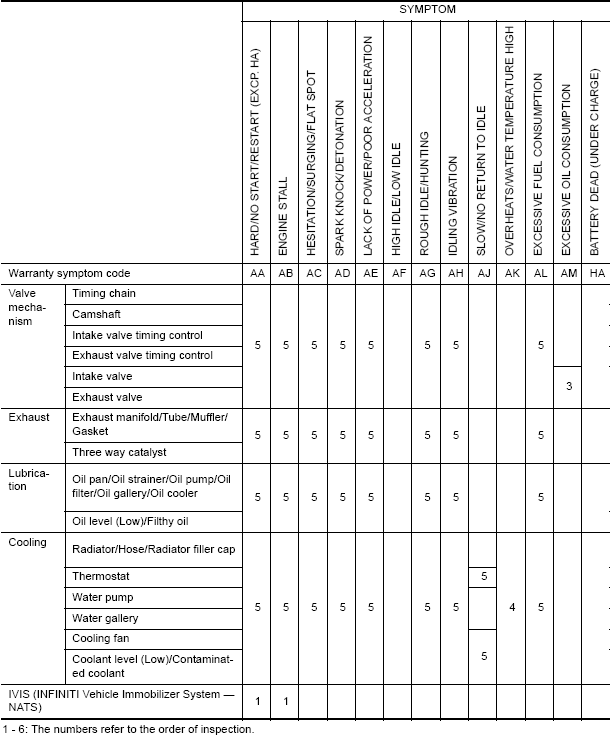

Fig 2: Engine Mechanical & Other Symptoms Reference Chart (2 Of 2)
G05726676Courtesy of NISSAN MOTOR CO., U.S.A.
