Component Parts Location

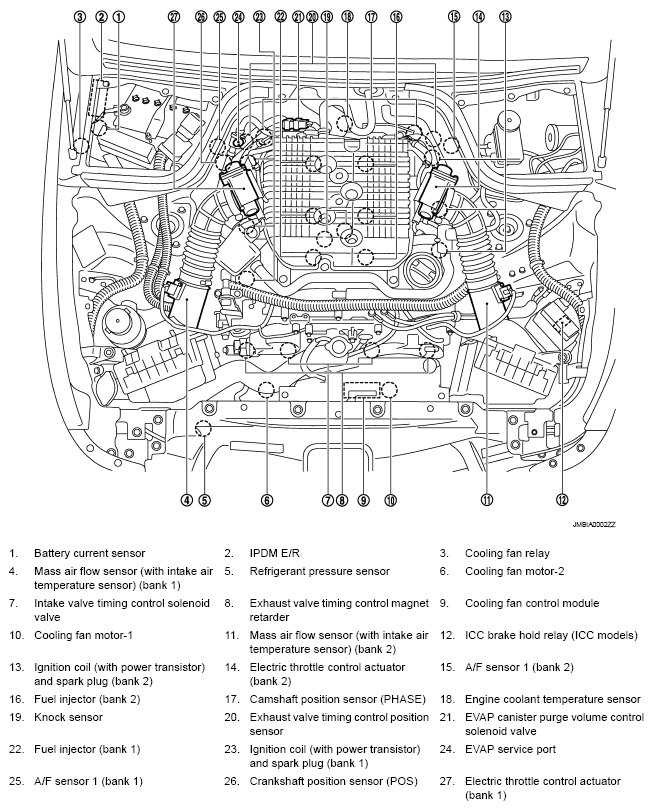

Fig 1: Identifying Electric Ignition System Component Parts Location (1 Of 20)

G05726295

Courtesy of NISSAN MOTOR CO., U.S.A.

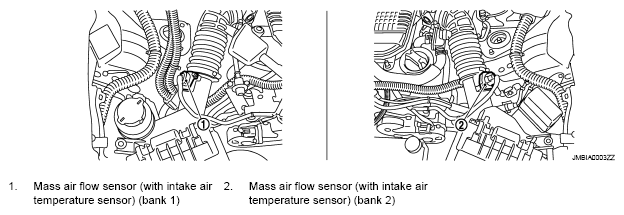

Fig 2: Identifying Electric Ignition System Component Parts Location (2 Of 20)

G05726296

Courtesy of NISSAN MOTOR CO., U.S.A.

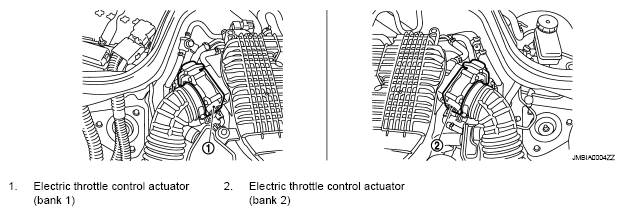

Fig 3: Identifying Electric Ignition System Component Parts Location (3 Of 20)

G05726297

Courtesy of NISSAN MOTOR CO., U.S.A.

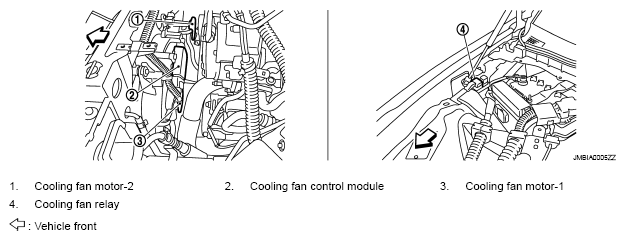

Fig 4: Identifying Electric Ignition System Component Parts Location (4 Of 20)

G05726298

Courtesy of NISSAN MOTOR CO., U.S.A.

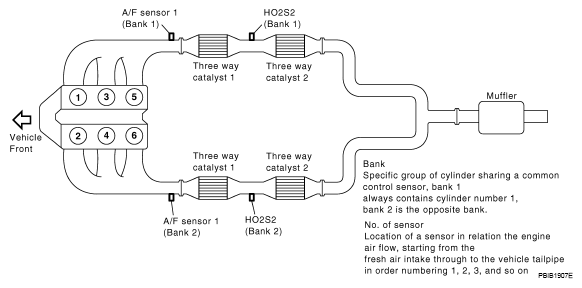

Fig 5: Identifying Electric Ignition System Component Parts Location (5 Of 20)

G05726299

Courtesy of NISSAN MOTOR CO., U.S.A.

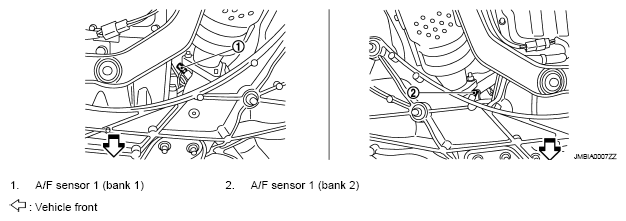

Fig 6: Identifying Electric Ignition System Component Parts Location (6 Of 20)

G05726300

Courtesy of NISSAN MOTOR CO., U.S.A.

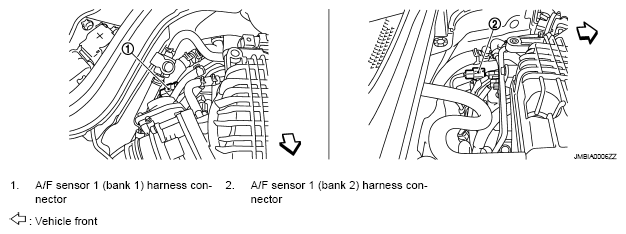

Fig 7: Identifying Electric Ignition System Component Parts Location (7 Of 20)

G05726301

Courtesy of NISSAN MOTOR CO., U.S.A.

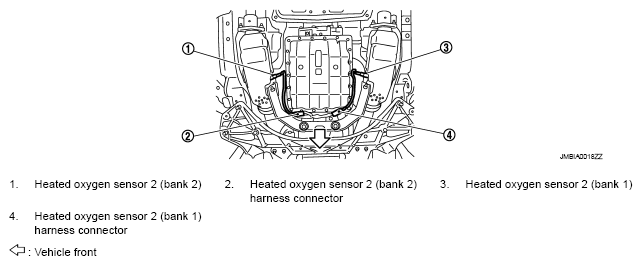

Fig 8: Identifying Electric Ignition System Component Parts Location (8 Of 20)

G05726302

Courtesy of NISSAN MOTOR CO., U.S.A.

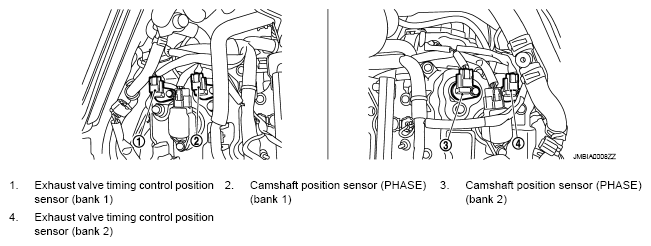

Fig 9: Identifying Electric Ignition System Component Parts Location (9 Of 20)

G05726303

Courtesy of NISSAN MOTOR CO., U.S.A.

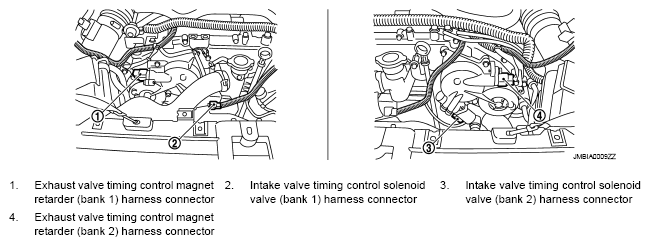

Fig 10: Identifying Electric Ignition System Component Parts Location (10 Of 20)

G05726304

Courtesy of NISSAN MOTOR CO., U.S.A.

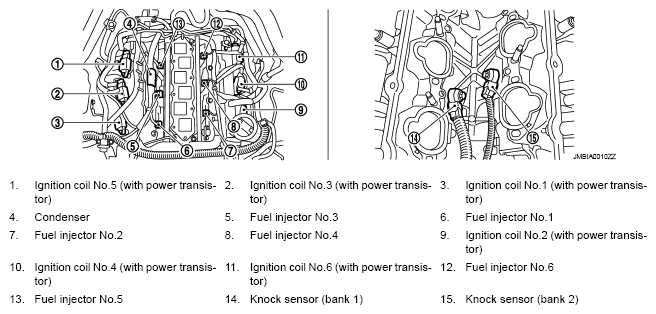

Fig 11: Identifying Electric Ignition System Component Parts Location (11 Of 20)

G05726305

Courtesy of NISSAN MOTOR CO., U.S.A.

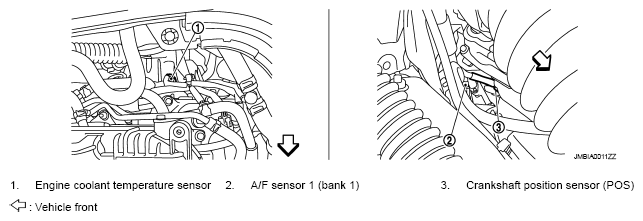

Fig 12: Identifying Electric Ignition System Component Parts Location (12 Of 20)

G05726306

Courtesy of NISSAN MOTOR CO., U.S.A.

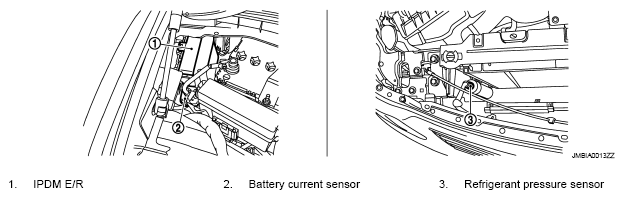

Fig 13: Identifying Electric Ignition System Component Parts Location (13 Of 20)

G05726307

Courtesy of NISSAN MOTOR CO., U.S.A.

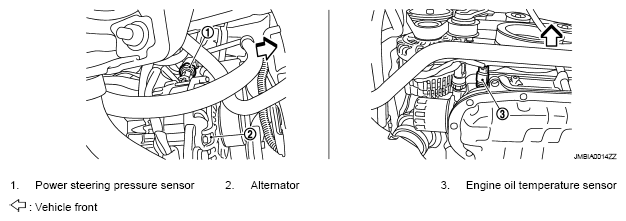

Fig 14: Identifying Electric Ignition System Component Parts Location (14 Of 20)

G05726308

Courtesy of NISSAN MOTOR CO., U.S.A.

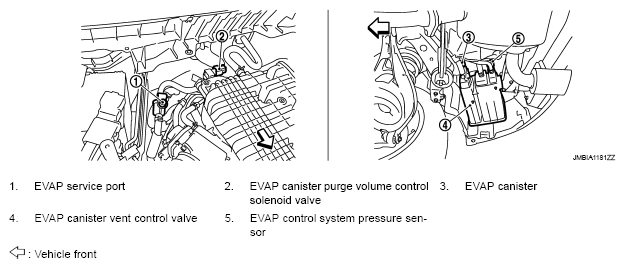

Fig 15: Identifying Electric Ignition System Component Parts Location (15 Of 20)

G05726309

Courtesy of NISSAN MOTOR CO., U.S.A.

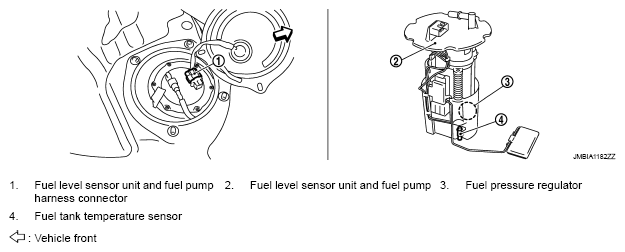

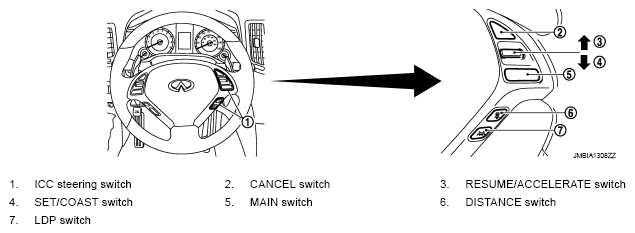

Fig 16: Identifying Electric Ignition System Component Parts Location (16 Of 20)

G05726310

Courtesy of NISSAN MOTOR CO., U.S.A.

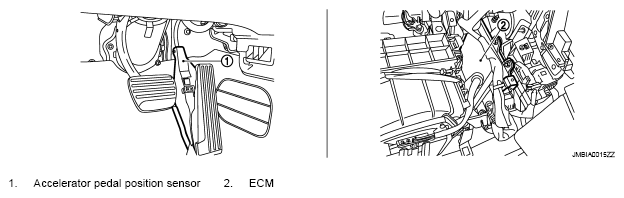

Fig 17: Identifying Electric Ignition System Component Parts Location (17 Of 20)

G05726311

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Identifying Electric Ignition System Component Parts Location (18 Of 20)

G05726312

Courtesy of NISSAN MOTOR CO., U.S.A.

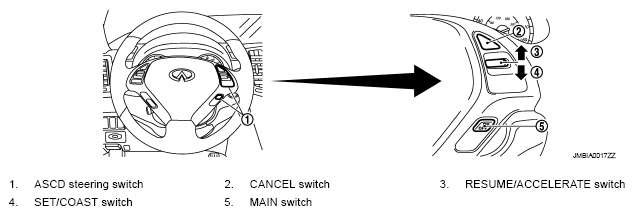

Fig 19: Identifying Electric Ignition System Component Parts Location (19 Of 20)

G05726313

Courtesy of NISSAN MOTOR CO., U.S.A.

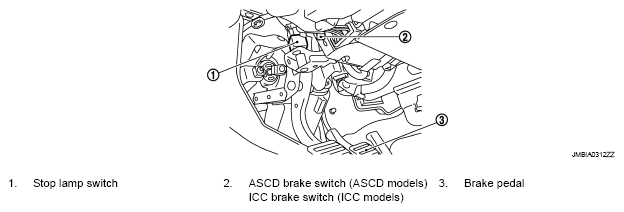

Fig 20: Identifying Electric Ignition System Component Parts Location (20 Of 20)

G05726314

Courtesy of NISSAN MOTOR CO., U.S.A.
