Component Parts Location

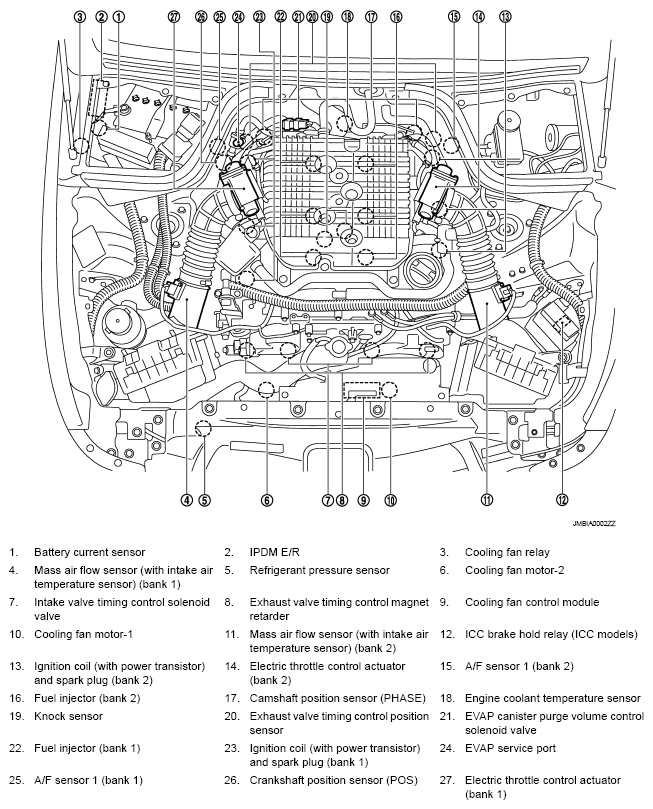

Fig 1: Identifying Evaporative Emission System Component Parts Location (1 Of 20)

G05726382

Courtesy of NISSAN MOTOR CO., U.S.A.

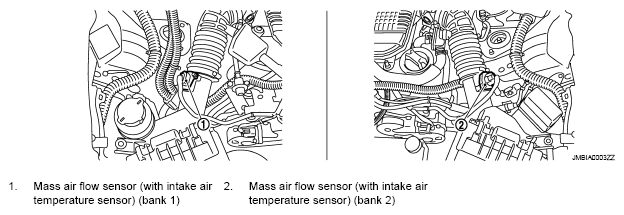

Fig 2: Identifying Evaporative Emission System Component Parts Location (2 Of 20)

G05726383

Courtesy of NISSAN MOTOR CO., U.S.A.

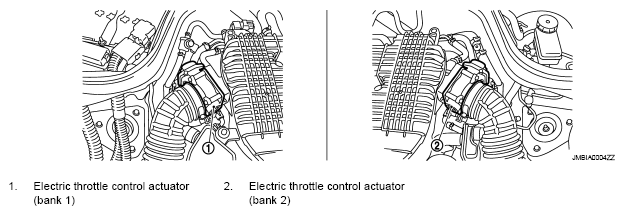

Fig 3: Identifying Evaporative Emission System Component Parts Location (3 Of 20)

G05726384

Courtesy of NISSAN MOTOR CO., U.S.A.

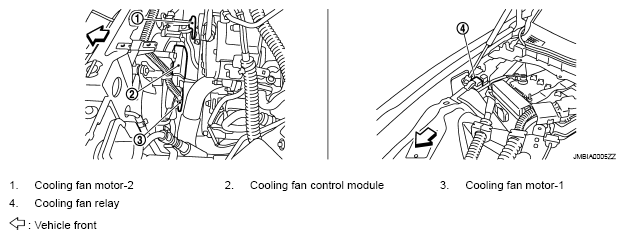

Fig 4: Identifying Evaporative Emission System Component Parts Location (4 Of 20)

G05726385

Courtesy of NISSAN MOTOR CO., U.S.A.

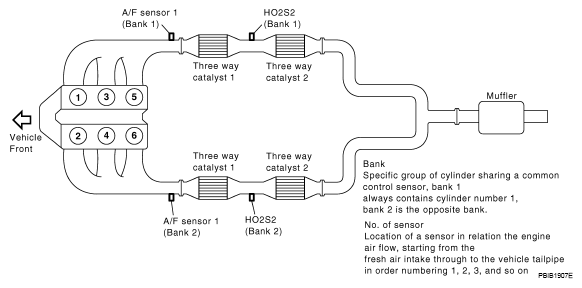

Fig 5: Identifying Evaporative Emission System Component Parts Location (5 Of 20)

G05726386

Courtesy of NISSAN MOTOR CO., U.S.A.

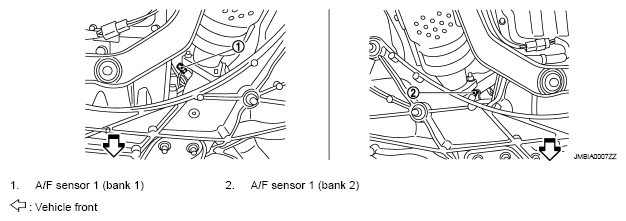

Fig 6: Identifying Evaporative Emission System Component Parts Location (6 Of 20)

G05726387

Courtesy of NISSAN MOTOR CO., U.S.A.

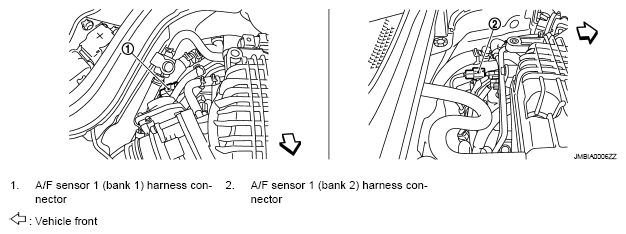

Fig 7: Identifying Evaporative Emission System Component Parts Location (7 Of 20)

G05726388

Courtesy of NISSAN MOTOR CO., U.S.A.

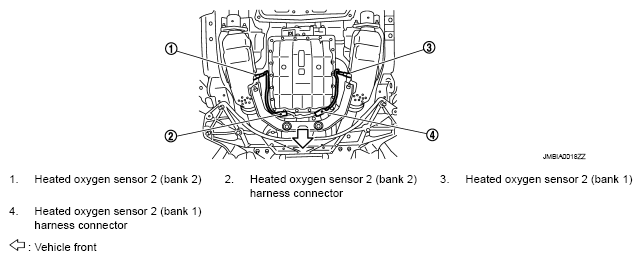

Fig 8: Identifying Evaporative Emission System Component Parts Location (8 Of 20)

G05726389

Courtesy of NISSAN MOTOR CO., U.S.A.

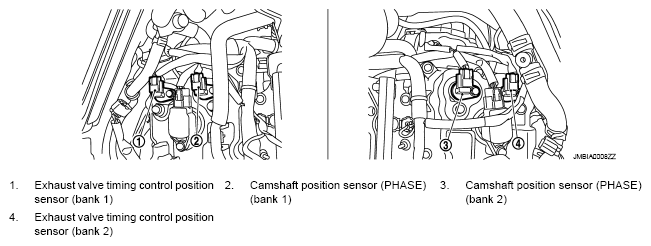

Fig 9: Identifying Evaporative Emission System Component Parts Location (9 Of 20)

G05726390

Courtesy of NISSAN MOTOR CO., U.S.A.

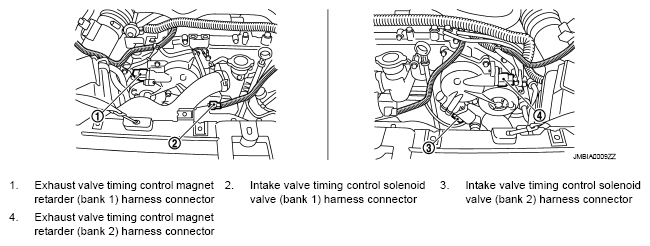

Fig 10: Identifying Evaporative Emission System Component Parts Location (10 Of 20)

G05726391

Courtesy of NISSAN MOTOR CO., U.S.A.

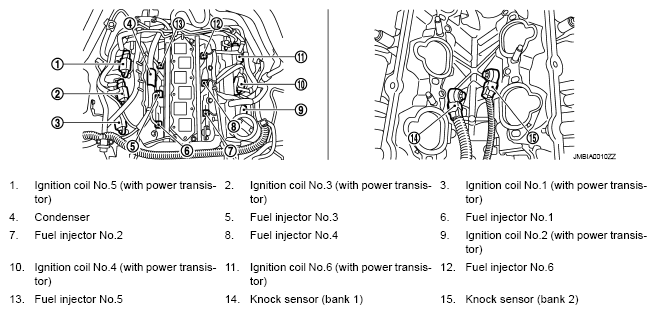

Fig 11: Identifying Evaporative Emission System Component Parts Location (11 Of 20)

G05726392

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Evaporative Emission System Component Parts Location (12 Of 20)

G05726393

Courtesy of NISSAN MOTOR CO., U.S.A.

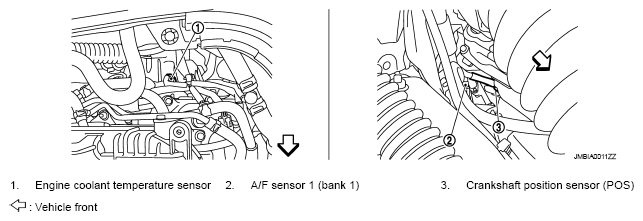

Fig 13: Identifying Evaporative Emission System Component Parts Location (13 Of 20)

G05726394

Courtesy of NISSAN MOTOR CO., U.S.A.

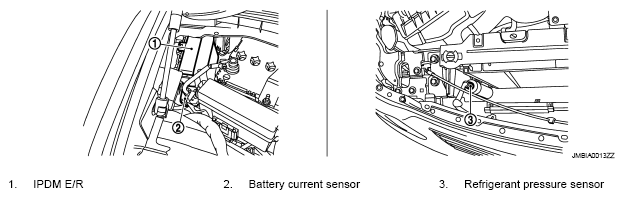

Fig 14: Identifying Evaporative Emission System Component Parts Location (14 Of 20)

G05726395

Courtesy of NISSAN MOTOR CO., U.S.A.

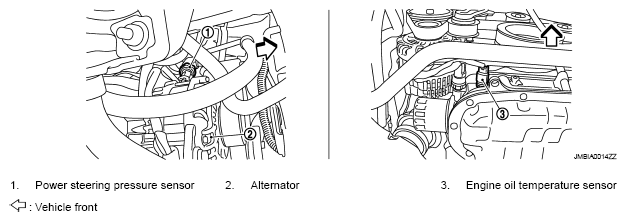

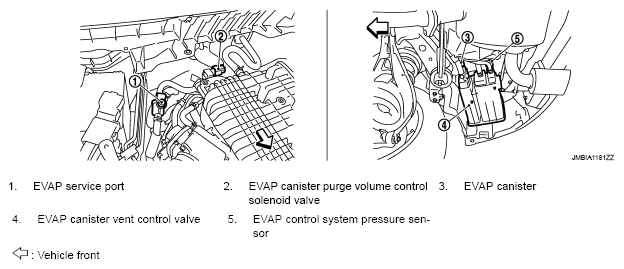

Fig 15: Identifying Evaporative Emission System Component Parts Location (15 Of 20)

G05726396

Courtesy of NISSAN MOTOR CO., U.S.A.

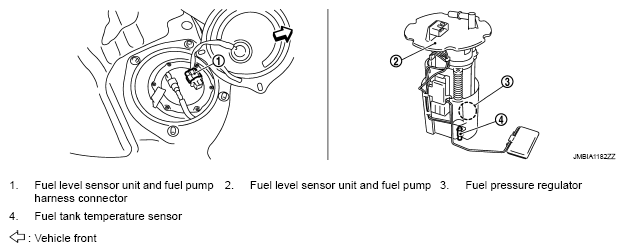

Fig 16: Identifying Evaporative Emission System Component Parts Location (16 Of 20)

G05726397

Courtesy of NISSAN MOTOR CO., U.S.A.

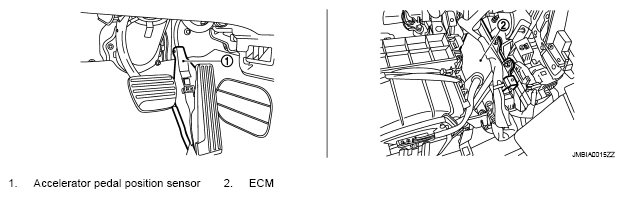

Fig 17: Identifying Evaporative Emission System Component Parts Location (17 Of 20)

G05726398

Courtesy of NISSAN MOTOR CO., U.S.A.

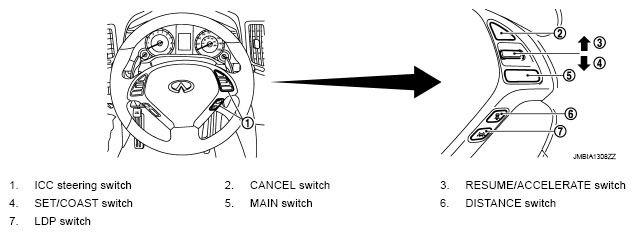

Fig 18: Identifying Evaporative Emission System Component Parts Location (18 Of 20)

G05726399

Courtesy of NISSAN MOTOR CO., U.S.A.

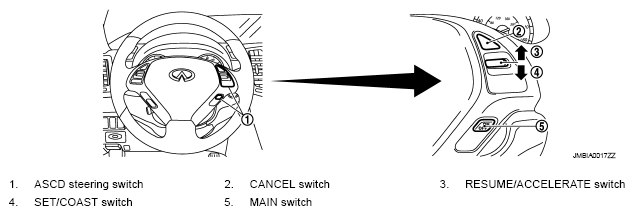

Fig 19: Identifying Evaporative Emission System Component Parts Location (19 Of 20)

G05726400

Courtesy of NISSAN MOTOR CO., U.S.A.

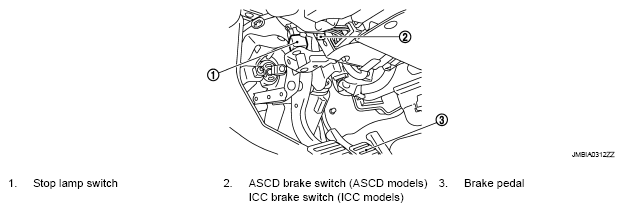

Fig 20: Identifying Evaporative Emission System Component Parts Location (20 Of 20)

G05726401

Courtesy of NISSAN MOTOR CO., U.S.A.
