Component Parts Location

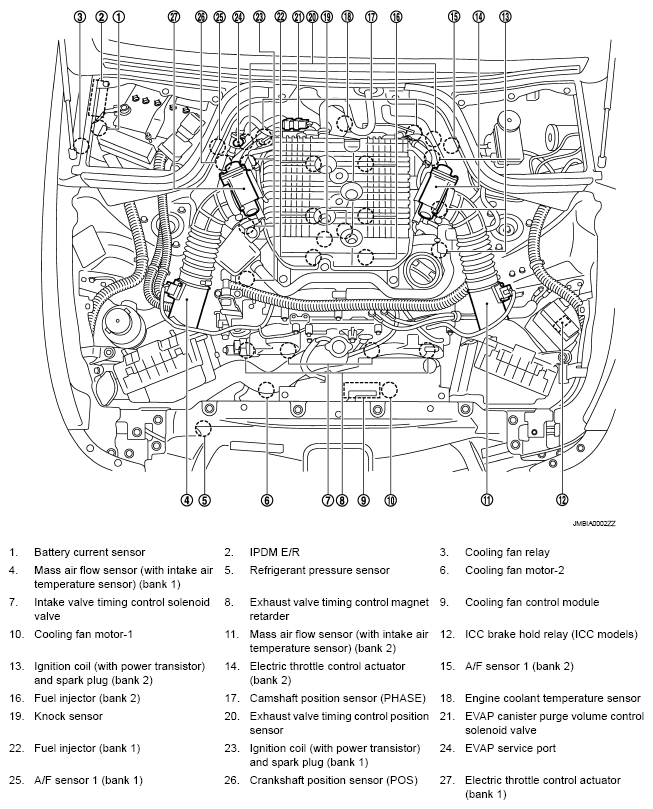

Fig 1: Identifying Exhaust Valve Timing Control Component Parts Location (1 Of 20)

G05726404

Courtesy of NISSAN MOTOR CO., U.S.A.

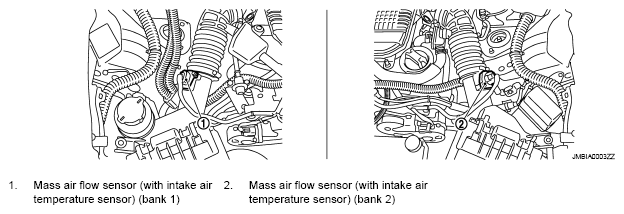

Fig 2: Identifying Exhaust Valve Timing Control Component Parts Location (2 Of 20)

G05726405

Courtesy of NISSAN MOTOR CO., U.S.A.

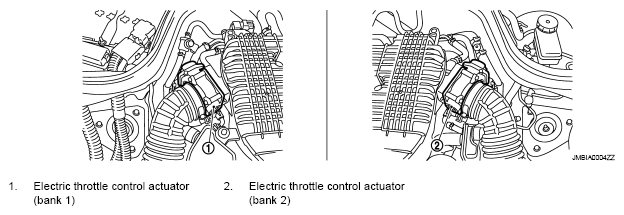

Fig 3: Identifying Exhaust Valve Timing Control Component Parts Location (3 Of 20)

G05726406

Courtesy of NISSAN MOTOR CO., U.S.A.

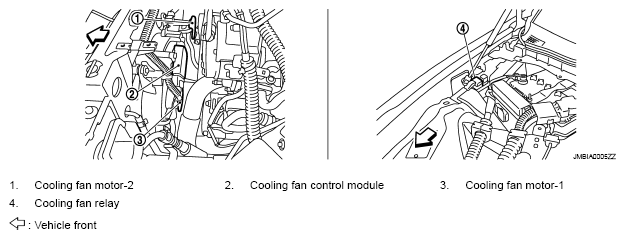

Fig 4: Identifying Exhaust Valve Timing Control Component Parts Location (4 Of 20)

G05726407

Courtesy of NISSAN MOTOR CO., U.S.A.

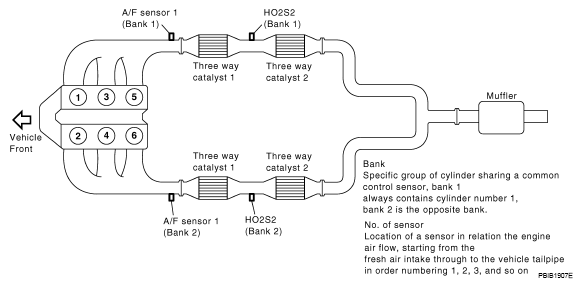

Fig 5: Identifying Exhaust Valve Timing Control Component Parts Location (5 Of 20)

G05726408

Courtesy of NISSAN MOTOR CO., U.S.A.

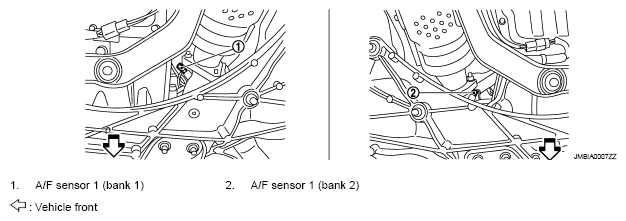

Fig 6: Identifying Exhaust Valve Timing Control Component Parts Location (6 Of 20)

G05726409

Courtesy of NISSAN MOTOR CO., U.S.A.

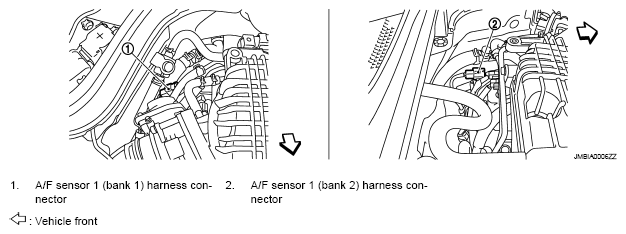

Fig 7: Identifying Exhaust Valve Timing Control Component Parts Location (7 Of 20)

G05726410

Courtesy of NISSAN MOTOR CO., U.S.A.

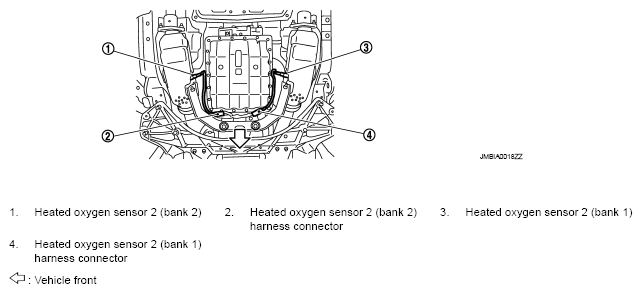

Fig 8: Identifying Exhaust Valve Timing Control Component Parts Location (8 Of 20)

G05726411

Courtesy of NISSAN MOTOR CO., U.S.A.

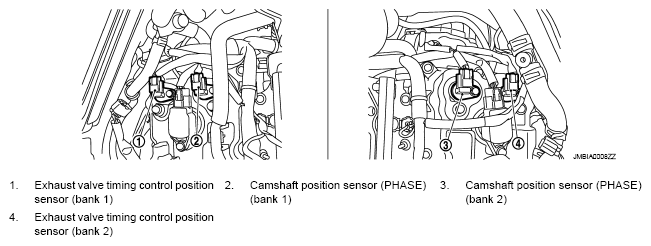

Fig 9: Identifying Exhaust Valve Timing Control Component Parts Location (9 Of 20)

G05726412

Courtesy of NISSAN MOTOR CO., U.S.A.

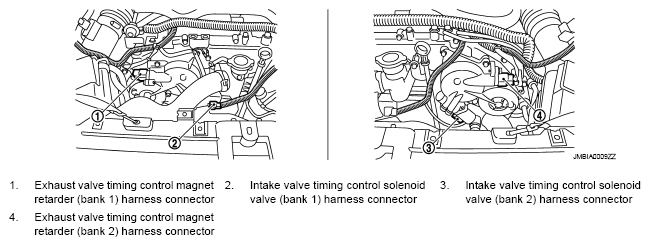

Fig 10: Identifying Exhaust Valve Timing Control Component Parts Location (10 Of 20)

G05726413

Courtesy of NISSAN MOTOR CO., U.S.A.

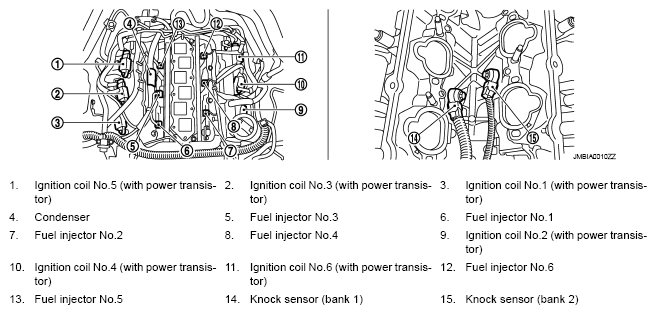

Fig 11: Identifying Exhaust Valve Timing Control Component Parts Location (11 Of 20)

G05726414

Courtesy of NISSAN MOTOR CO., U.S.A.

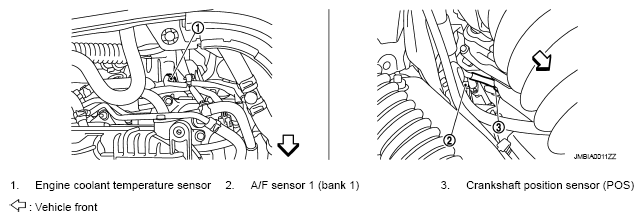

Fig 12: Identifying Exhaust Valve Timing Control Component Parts Location (12 Of 20)

G05726415

Courtesy of NISSAN MOTOR CO., U.S.A.

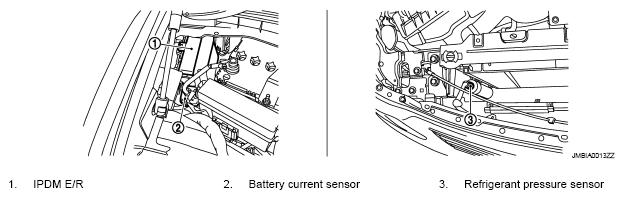

Fig 13: Identifying Exhaust Valve Timing Control Component Parts Location (13 Of 20)

G05726416

Courtesy of NISSAN MOTOR CO., U.S.A.

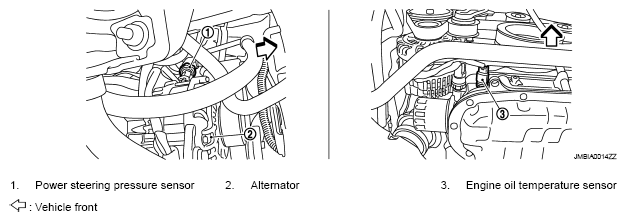

Fig 14: Identifying Exhaust Valve Timing Control Component Parts Location (14 Of 20)

G05726417

Courtesy of NISSAN MOTOR CO., U.S.A.

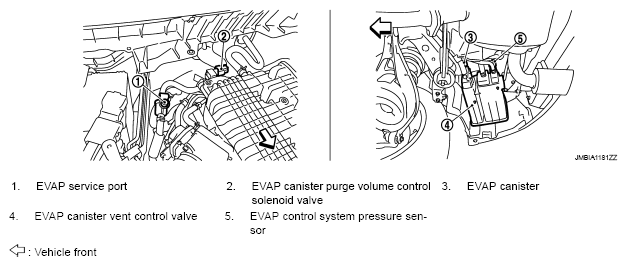

Fig 15: Identifying Exhaust Valve Timing Control Component Parts Location (15 Of 20)

G05726418

Courtesy of NISSAN MOTOR CO., U.S.A.

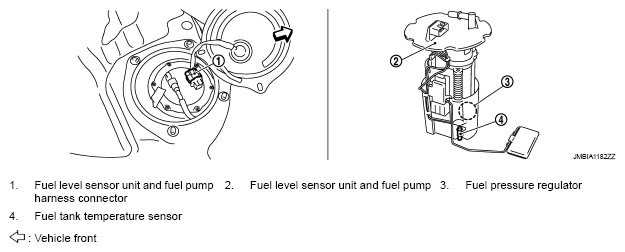

Fig 16: Identifying Exhaust Valve Timing Control Component Parts Location (16 Of 20)

G05726419

Courtesy of NISSAN MOTOR CO., U.S.A.

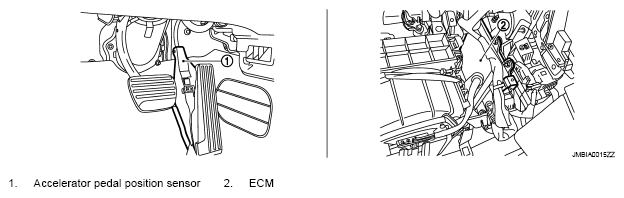

Fig 17: Identifying Exhaust Valve Timing Control Component Parts Location (17 Of 20)

G05726420

Courtesy of NISSAN MOTOR CO., U.S.A.

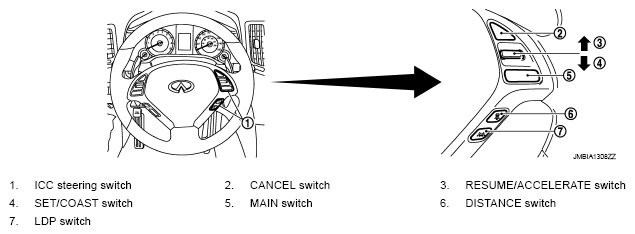

Fig 18: Identifying Exhaust Valve Timing Control Component Parts Location (18 Of 20)

G05726421

Courtesy of NISSAN MOTOR CO., U.S.A.

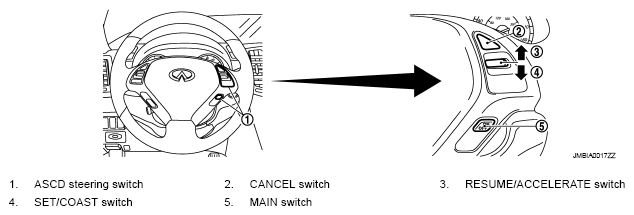

Fig 19: Identifying Exhaust Valve Timing Control Component Parts Location (19 Of 20)

G05726422

Courtesy of NISSAN MOTOR CO., U.S.A.

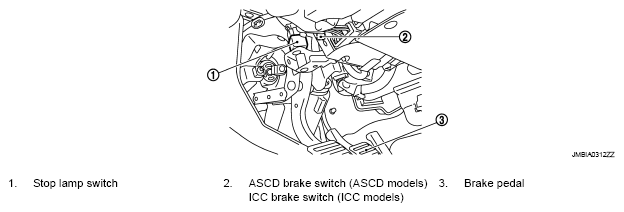

Fig 20: Identifying Exhaust Valve Timing Control Component Parts Location (20 Of 20)

G05726423

Courtesy of NISSAN MOTOR CO., U.S.A.
