Component Parts Location

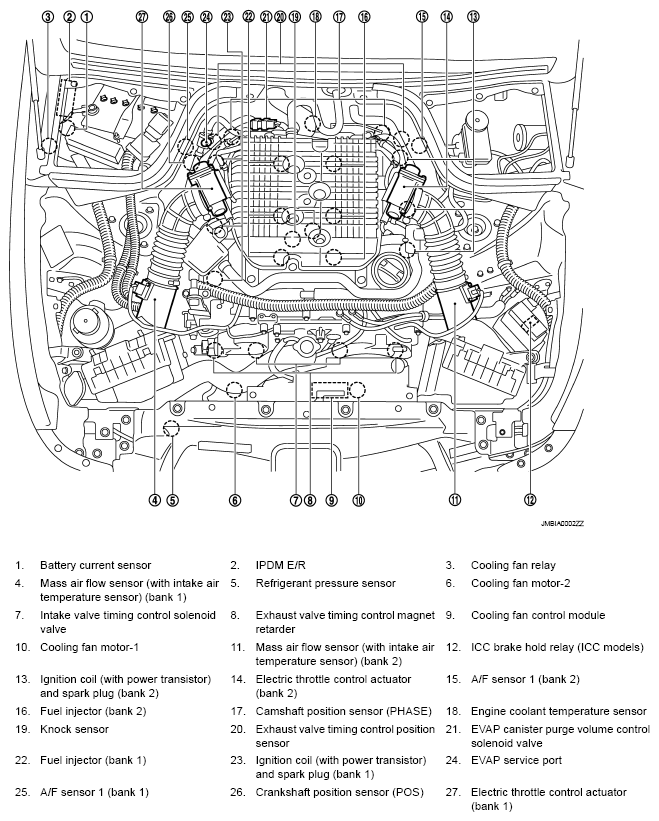

Fig 1: Identifying Engine Control System Component Parts Location (1 Of 20)

G05726251

Courtesy of NISSAN MOTOR CO., U.S.A.

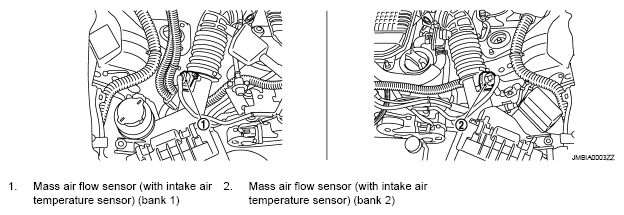

Fig 2: Identifying Engine Control System Component Parts Location (2 Of 20)

G05726252

Courtesy of NISSAN MOTOR CO., U.S.A.

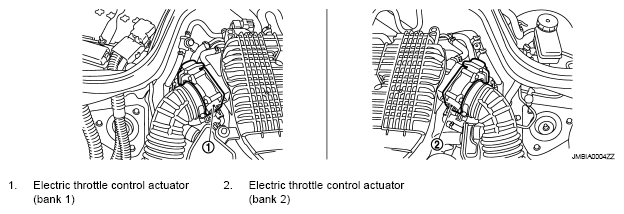

Fig 3: Identifying Engine Control System Component Parts Location (3 Of 20)

G05726253

Courtesy of NISSAN MOTOR CO., U.S.A.

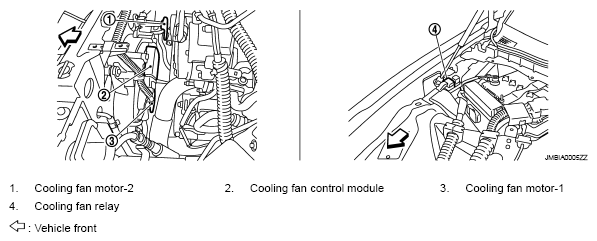

Fig 4: Identifying Engine Control System Component Parts Location (4 Of 20)

G05726254

Courtesy of NISSAN MOTOR CO., U.S.A.

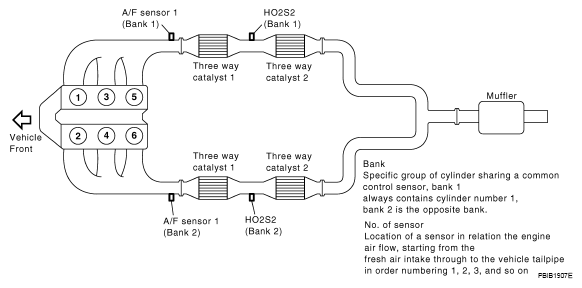

Fig 5: Identifying Engine Control System Component Parts Location (5 Of 20)

G05726255

Courtesy of NISSAN MOTOR CO., U.S.A.

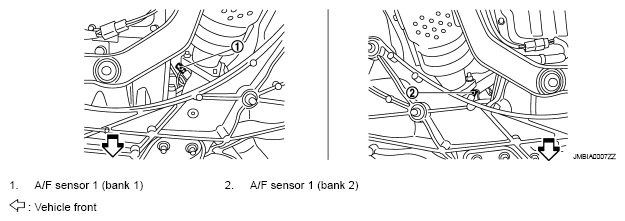

Fig 6: Identifying Engine Control System Component Parts Location (6 Of 20)

G05726256

Courtesy of NISSAN MOTOR CO., U.S.A.

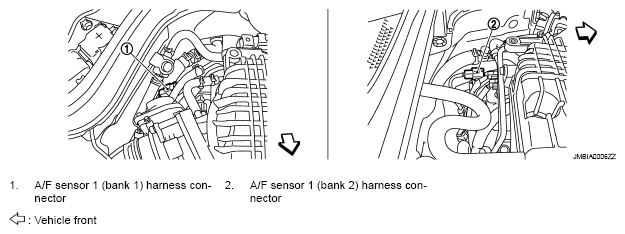

Fig 7: Identifying Engine Control System Component Parts Location (7 Of 20)

G05726257

Courtesy of NISSAN MOTOR CO., U.S.A.

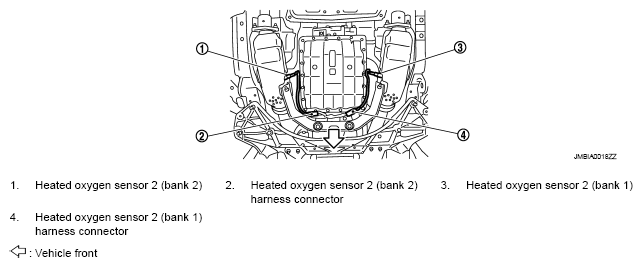

Fig 8: Identifying Engine Control System Component Parts Location (8 Of 20)

G05726258

Courtesy of NISSAN MOTOR CO., U.S.A.

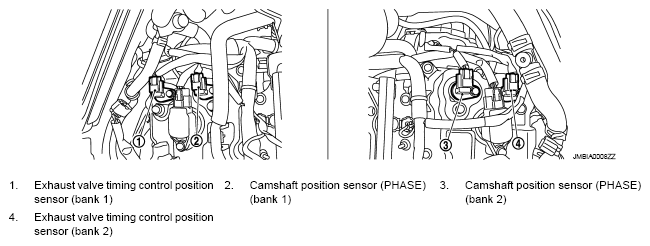

Fig 9: Identifying Engine Control System Component Parts Location (9 Of 20)

G05726259

Courtesy of NISSAN MOTOR CO., U.S.A.

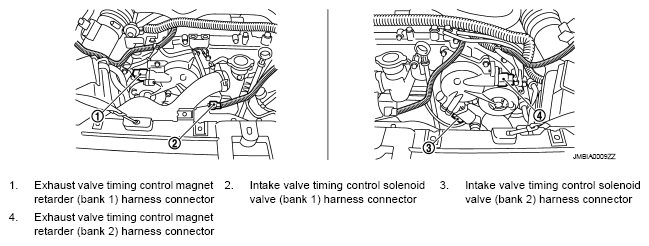

Fig 10: Identifying Engine Control System Component Parts Location (10 Of 20)

G05726260

Courtesy of NISSAN MOTOR CO., U.S.A.

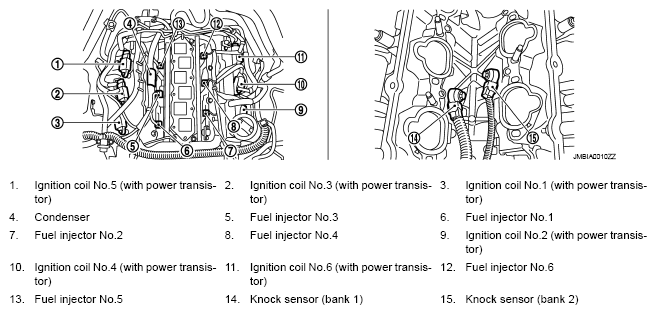

Fig 11: Identifying Engine Control System Component Parts Location (11 Of 20)

G05726261

Courtesy of NISSAN MOTOR CO., U.S.A.

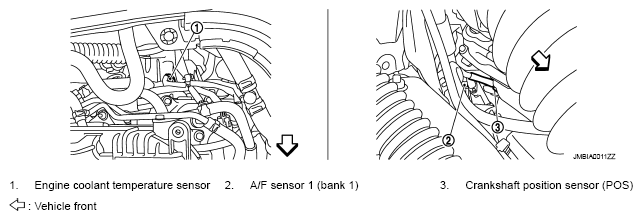

Fig 12: Identifying Engine Control System Component Parts Location (12 Of 20)

G05726262

Courtesy of NISSAN MOTOR CO., U.S.A.

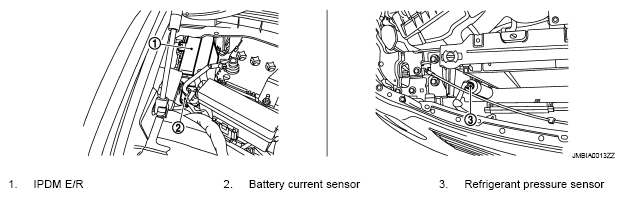

Fig 13: Identifying Engine Control System Component Parts Location (13 Of 20)

G05726263

Courtesy of NISSAN MOTOR CO., U.S.A.

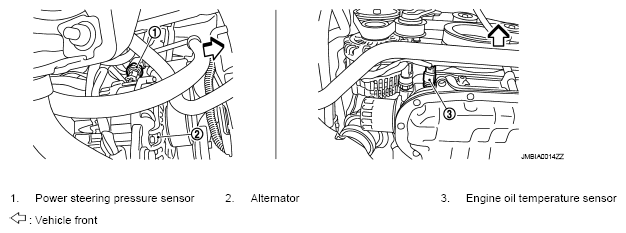

Fig 14: Identifying Engine Control System Component Parts Location(14 Of 20)

G05726264

Courtesy of NISSAN MOTOR CO., U.S.A.

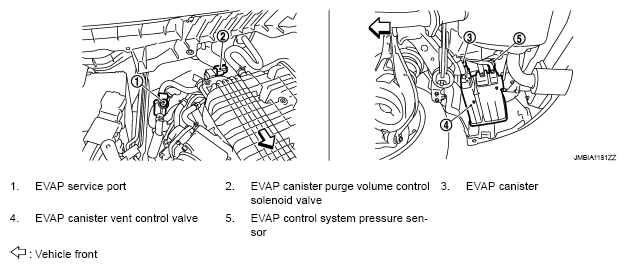

Fig 15: Identifying Engine Control System Component Parts Location (15 Of 20)

G05726265

Courtesy of NISSAN MOTOR CO., U.S.A.

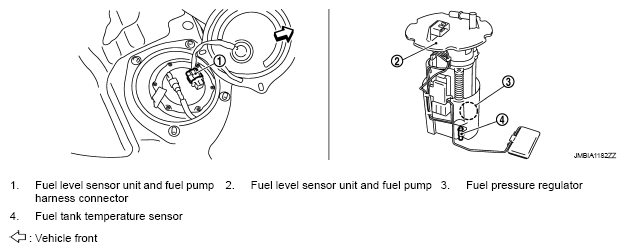

Fig 16: Identifying Engine Control System Component Parts Location (16 Of 20)

G05726266

Courtesy of NISSAN MOTOR CO., U.S.A.

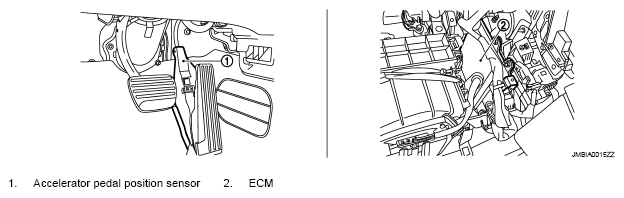

Fig 17: Identifying Engine Control System Component Parts Location (17 Of 20)

G05726267

Courtesy of NISSAN MOTOR CO., U.S.A.

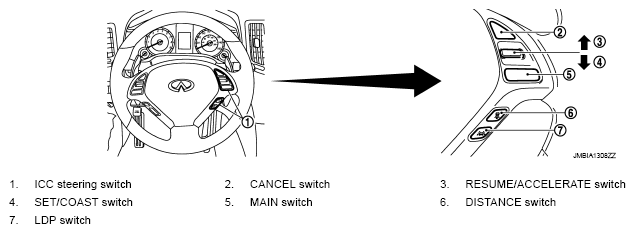

Fig 18: Identifying Engine Control System Component Parts Location (18 Of 20)

G05726268

Courtesy of NISSAN MOTOR CO., U.S.A.

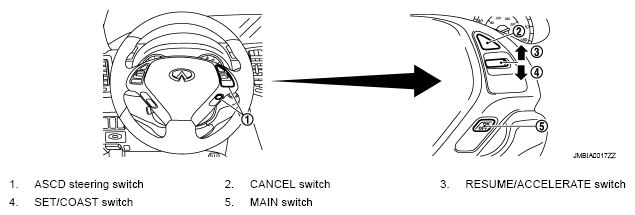

Fig 19: Identifying Engine Control System Component Parts Location (19 Of 20)

G05726269

Courtesy of NISSAN MOTOR CO., U.S.A.

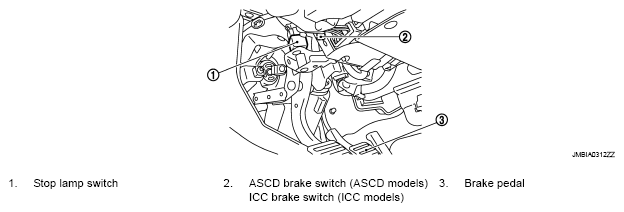

Fig 20: Identifying Engine Control System Component Parts Location (20 Of 20)

G05726270

Courtesy of NISSAN MOTOR CO., U.S.A.
