Fuel Injector: Wiring Diagram

For PG-POWER, refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

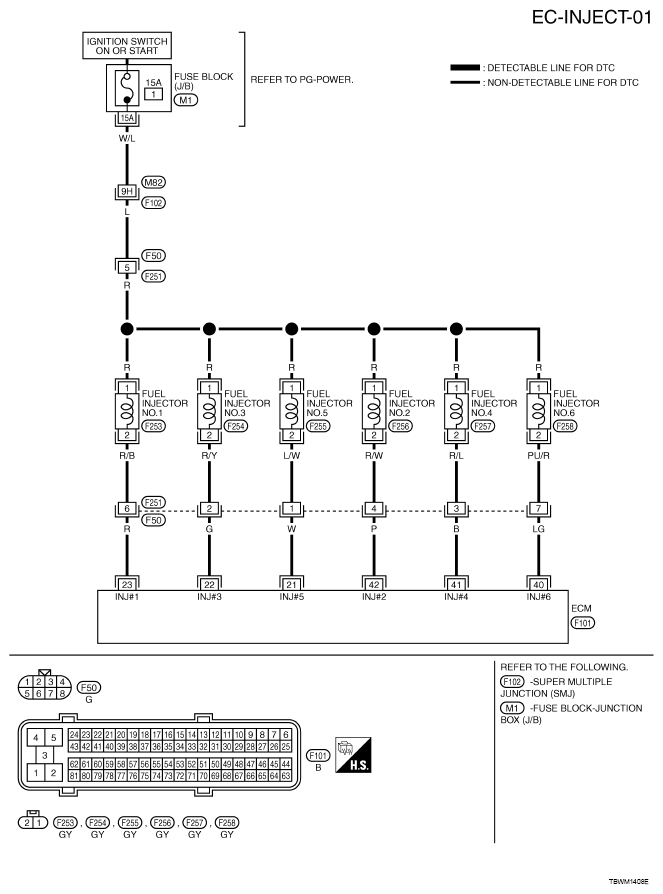

Fig 1: EC-INJECT-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-III.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

ECM INSPECTION TABLE

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
21 22 23 40 41 42	W G R LG B P	Fuel injector No. 5 Fuel injector No. 3 Fuel injector No. 1 Fuel injector No. 6 Fuel injector No. 4 Fuel injector No. 2	[Engine is running] Warm-up condition Idle speed NOTE: The pulse cycle changes depending on rpm at idle	Courtesy of NISSAN MOTOR CO., U.S.A.
21 22 23 40 41 42	W G R LG B P		[Engine is running] Warm-up condition Engine speed: 2, 000 rpm	Courtesy of NISSAN MOTOR CO., U.S.A.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
