Engine Control Component Parts/Control Systems Application

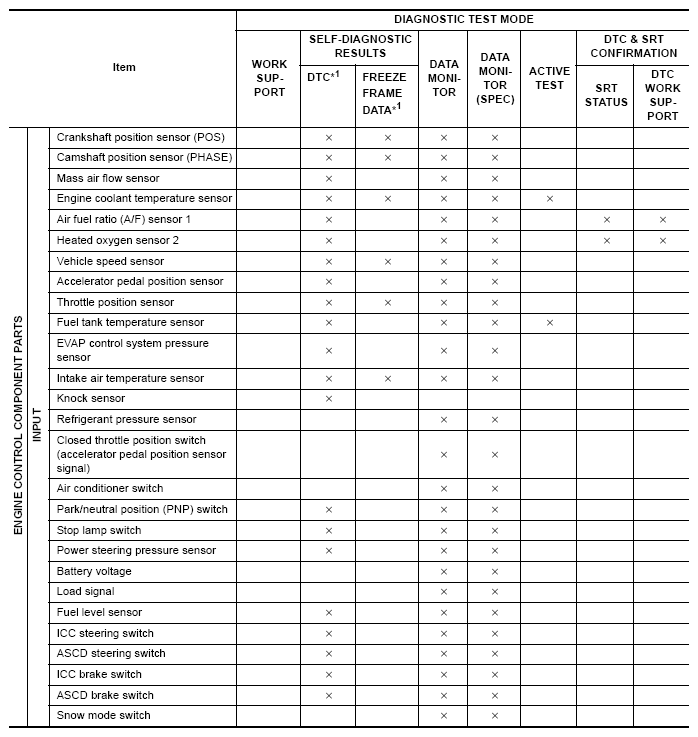

Fig 1: Engine Control System Component Parts Application Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME DATA .

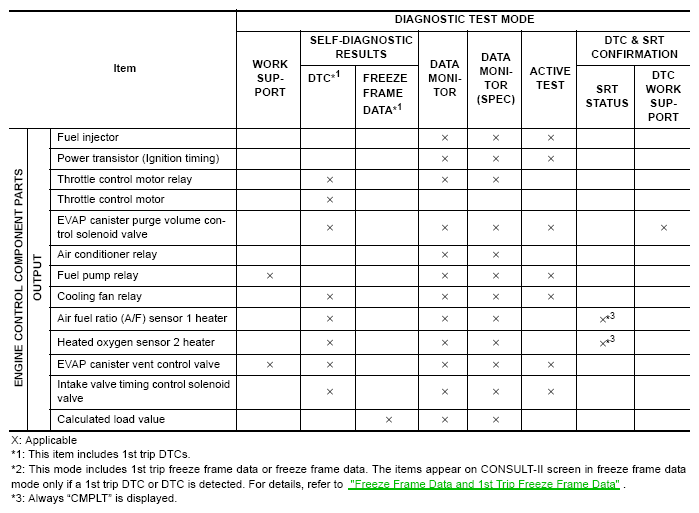

Fig 2: Engine Control System Component Parts Application Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
