Component Parts Location

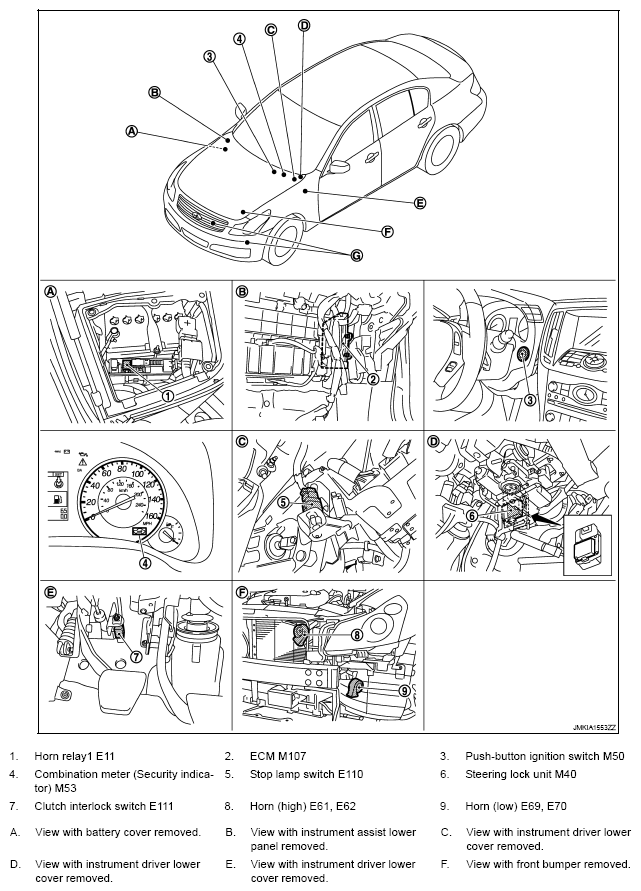

Fig 1: Identifying Intelligent Key System Component Parts Location (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

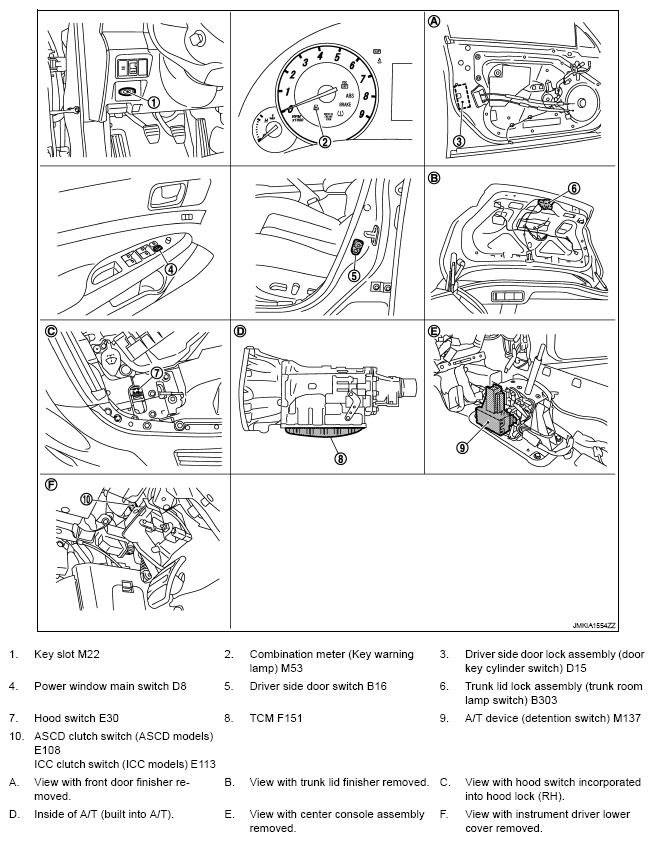

Fig 2: Identifying Intelligent Key System Component Parts Location (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

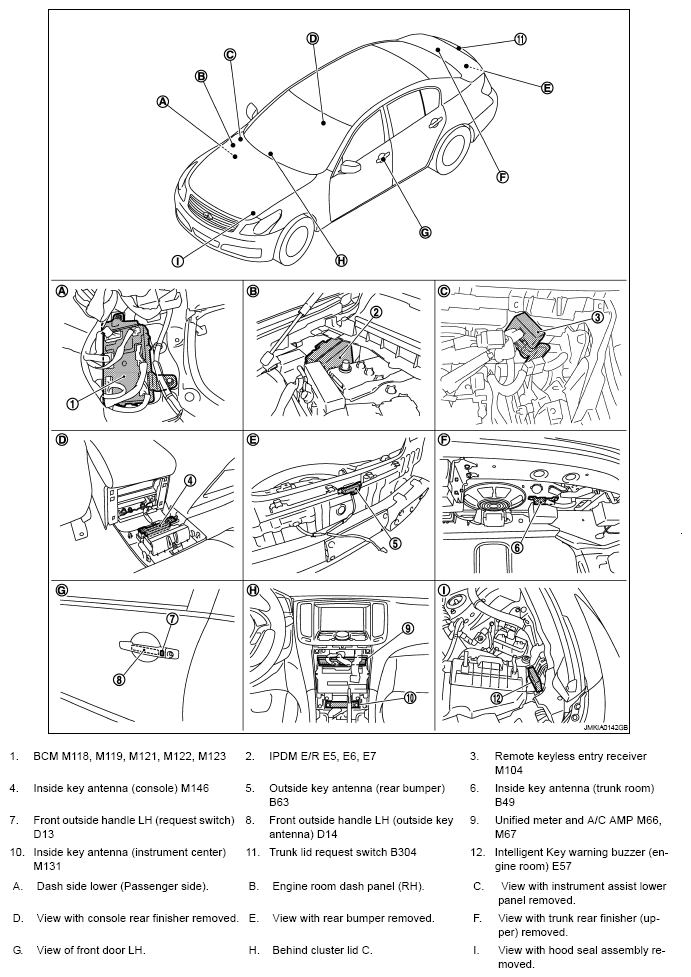

Fig 3: Identifying Intelligent Key System Component Parts Location (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
