Exploded View

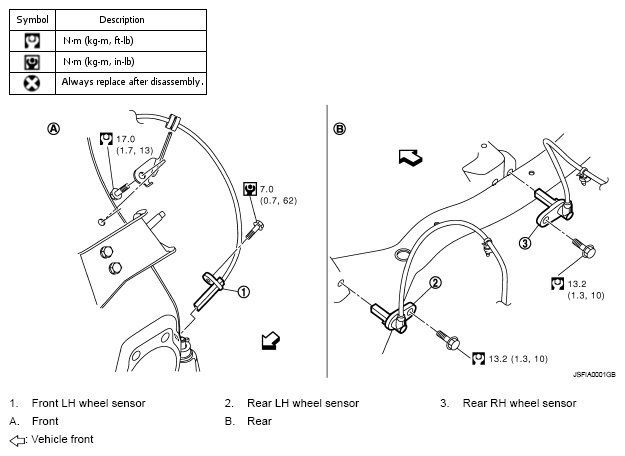

Fig 1: Exploded View Of Wheel Sensor With Torque Specifications
G05208044Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: The above figure (front side) shows left side. Right side is the mirror image.
