Removal and Installation: Removal

  1. Remove the cluster lid A assembly. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the push-button ignition switch (1) from cluster lid A assembly, and then remove pawl (A). Press push-button ignition switch (1) back to disengage from cluster lid A assembly.

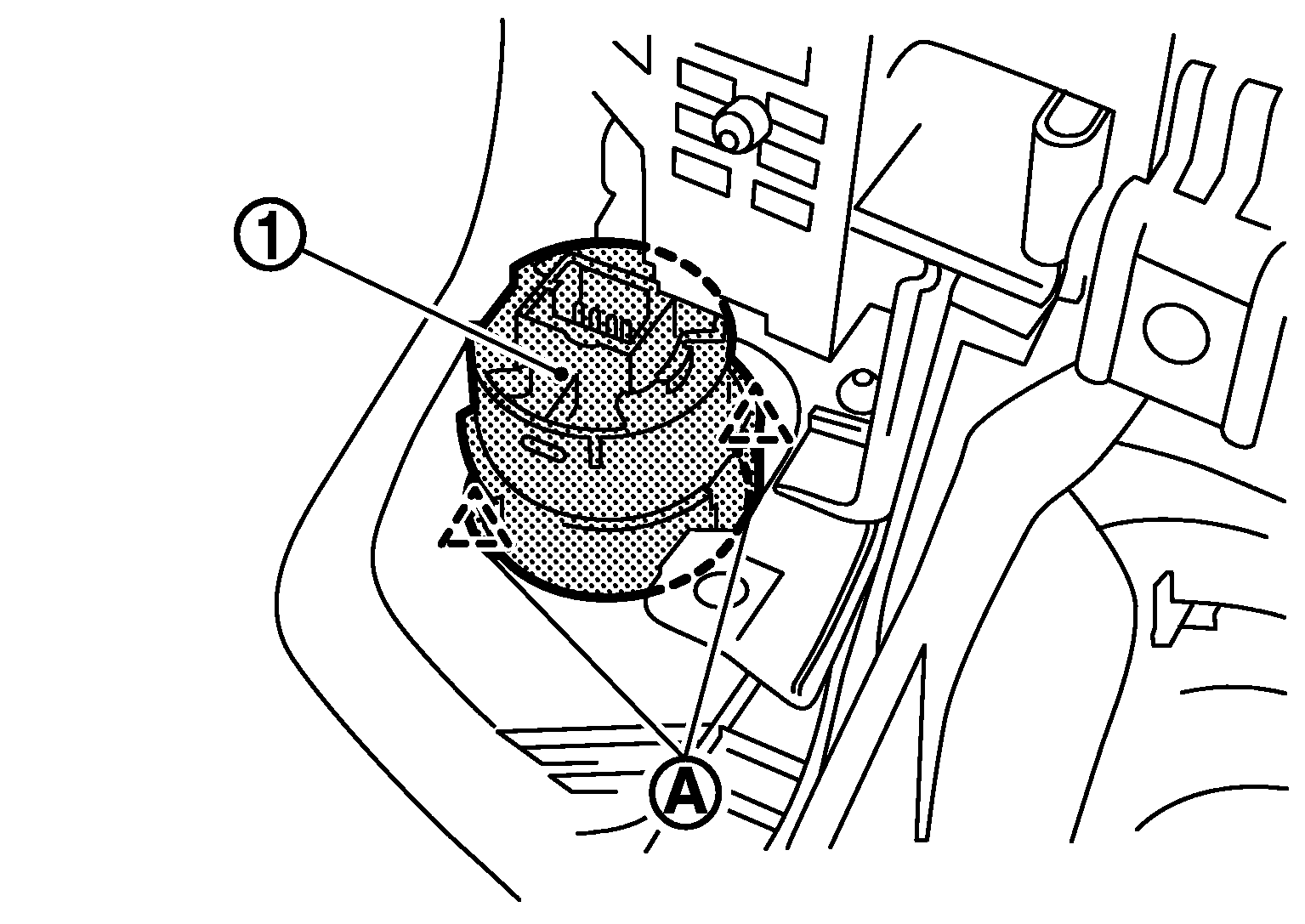

    Fig 1: Identifying Ignition Switch With Pawl
    G04888450Courtesy of NISSAN MOTOR CO., U.S.A.
