Exploded View: Disassembly

Type: S114-927

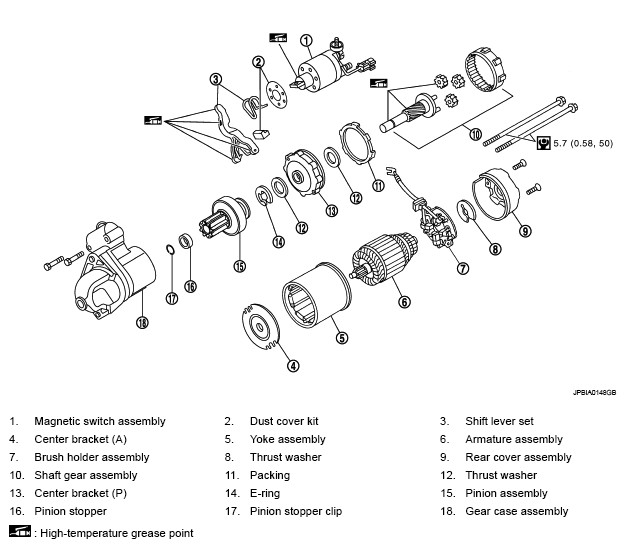

Fig 1: Starter Motor With Torque Specifications
G05224201Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
