Exploded View: Removal

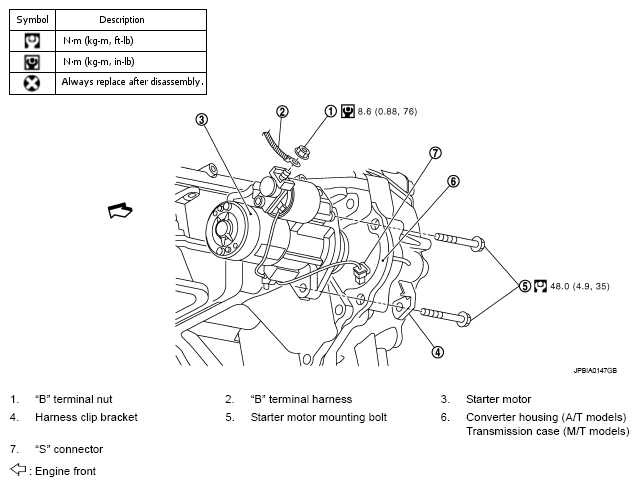

Fig 1: Exploded View Of Starter Motor With Torque Specifications
G05224200Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
