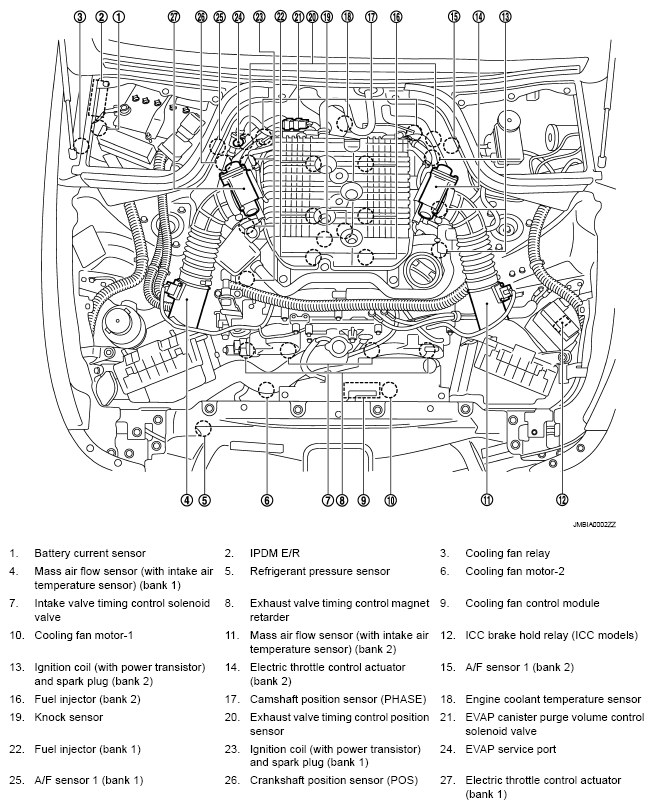

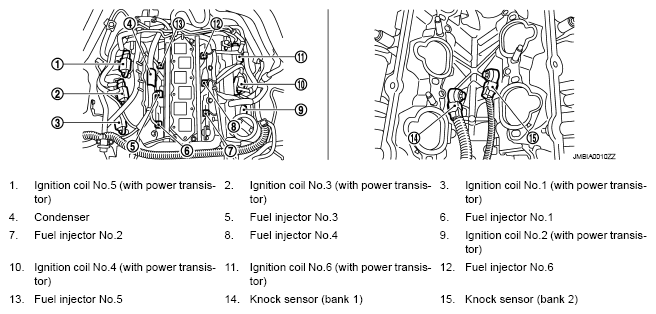

Component Parts Location

Fig 1: Air Conditioning Cut Control Part Location

Courtesy of NISSAN MOTOR CO., U.S.A.

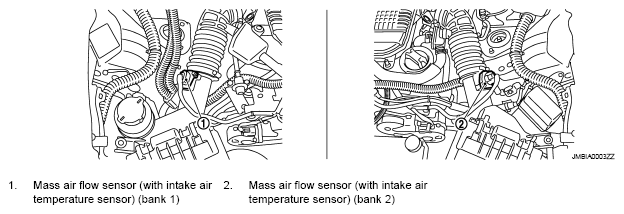

Fig 2: Identifying Mass Air Flow Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

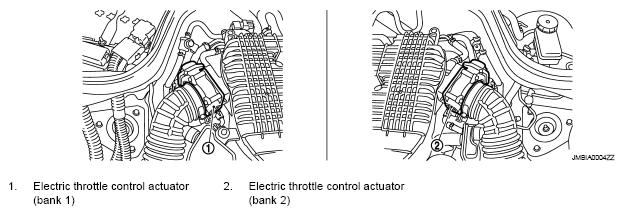

Fig 3: Identifying Electric Throttle Control Actuator

Courtesy of NISSAN MOTOR CO., U.S.A.

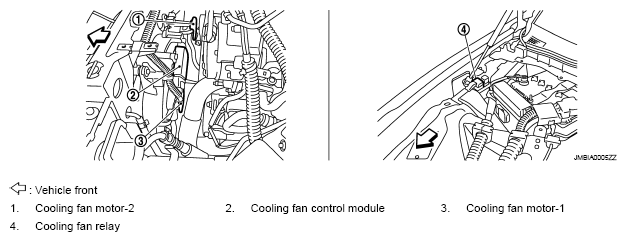

Fig 4: Identifying Cooling Fan Motor-2, Cooling Fan Relay And Cooling Fan Motor -1

Courtesy of NISSAN MOTOR CO., U.S.A.

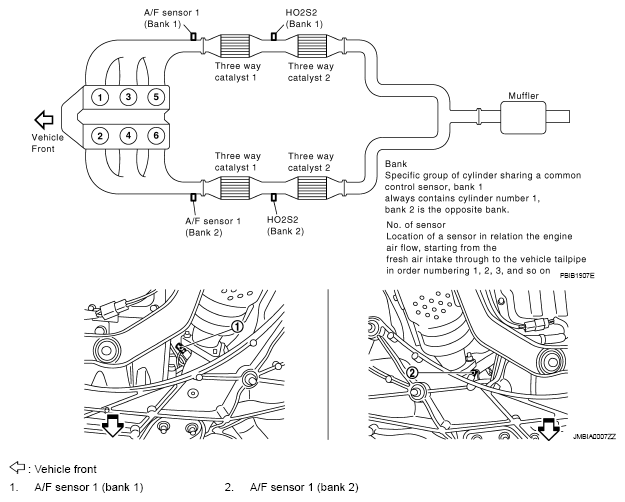

Fig 5: A/F Sensor Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

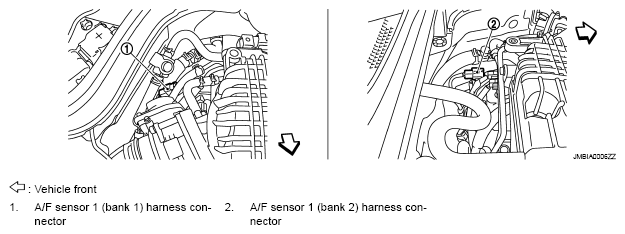

Fig 6: Identifying A/F Sensor Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

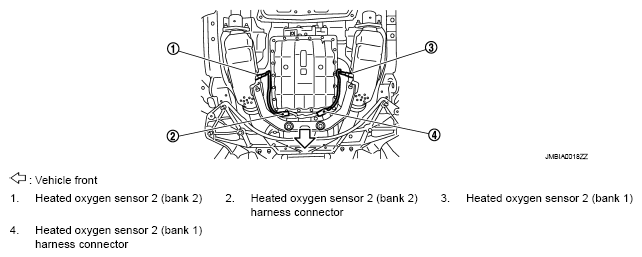

Fig 7: Identifying Heated Oxygen Sensor Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

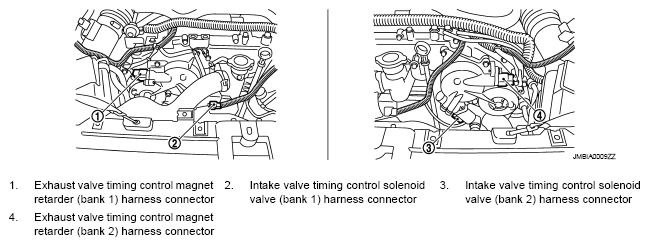

Fig 8: Identifying Exhaust Valve Timing Control Magnet Retarder

Courtesy of NISSAN MOTOR CO., U.S.A.

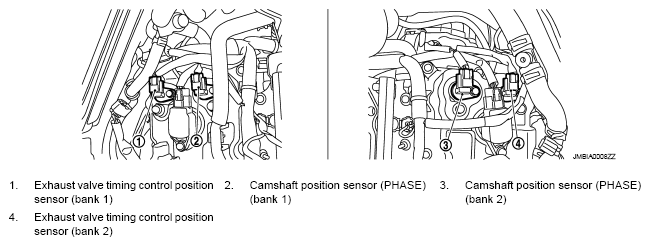

Fig 9: Identifying Exhaust Valve Timing Control Magnet Retarder

Courtesy of NISSAN MOTOR CO., U.S.A.

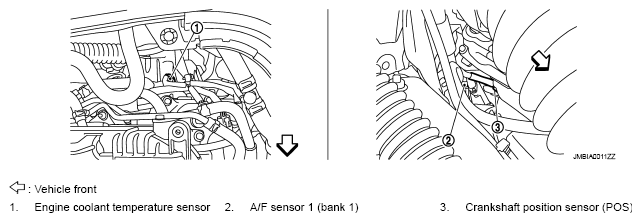

Fig 10: Identifying Engine Coolant Temperature Sensor, A/F Sensor And Crankshaft Position Sensor (POS)

Courtesy of NISSAN MOTOR CO., U.S.A.

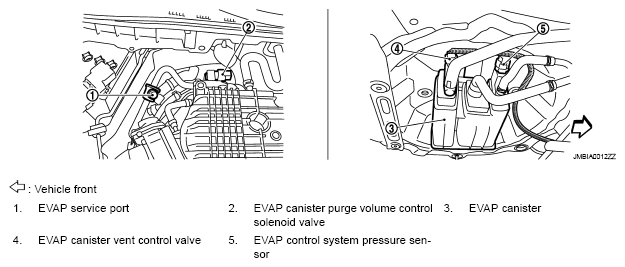

Fig 11: Identifying EVAP Canister Vent Control Valve

Courtesy of NISSAN MOTOR CO., U.S.A.

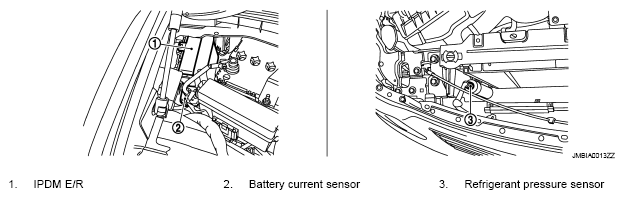

Fig 12: Identifying IPDM E/R, Battery Current Sensor And Refrigerant Pressure Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

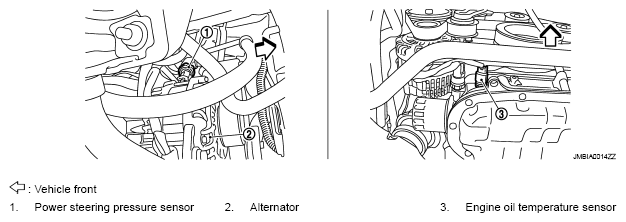

Fig 13: Identifying Power Steering Pressure Sensor, Alternator And Engine Oil Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying EVAP Canister Vent Control Valve

Courtesy of NISSAN MOTOR CO., U.S.A.

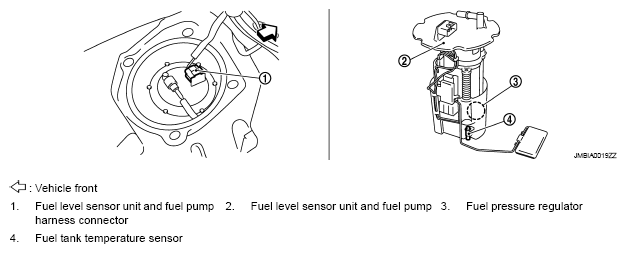

Fig 15: Identifying Fuel Level Sensor Parts

Courtesy of NISSAN MOTOR CO., U.S.A.

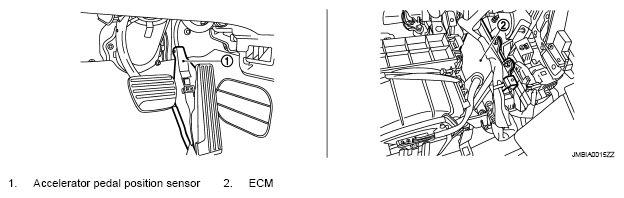

Fig 16: Identifying Accelerator Pedal Position Sensor And ECM

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying ICC Steering Switch, CANCEL Switch And MAIN Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

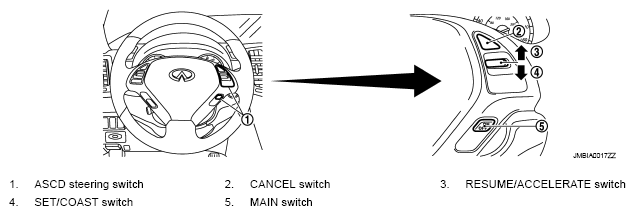

Fig 18: Identifying ASCD Steering Switch And CANCEL Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

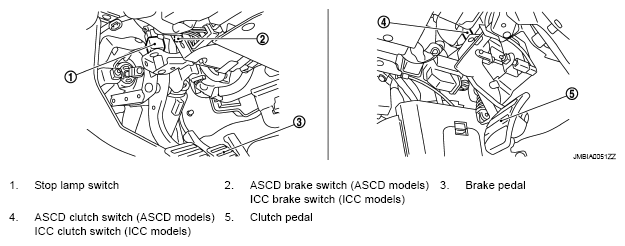

Fig 19: Identifying ASCD Clutch Switch And Stop Lamp Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
