Component Parts Location

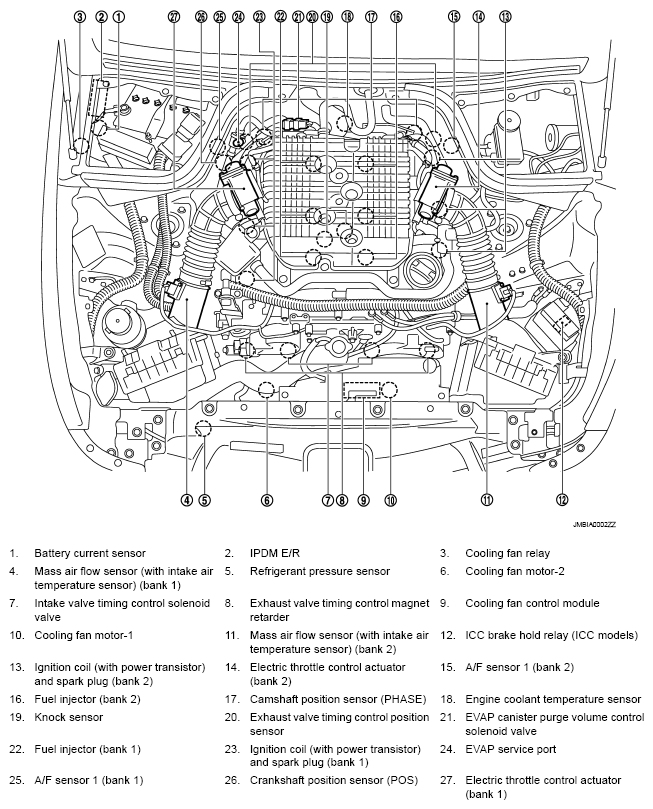

Fig 1: Identifying Evaporative Emission System Parts Location
G05207606Courtesy of NISSAN MOTOR CO., U.S.A.

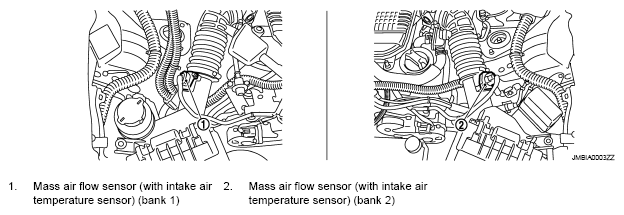

Fig 2: Identifying Mass Air Flow Sensor
G05207607Courtesy of NISSAN MOTOR CO., U.S.A.

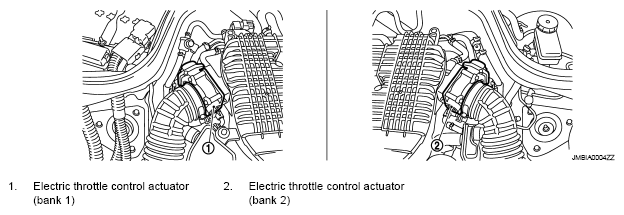

Fig 3: Identifying Electric Throttle Control Actuator
G05207608Courtesy of NISSAN MOTOR CO., U.S.A.

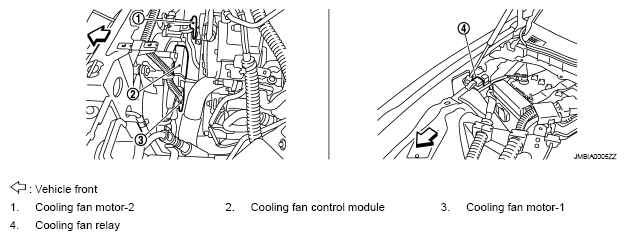

Fig 4: Identifying Cooling Fan Motor-2, Cooling Fan Relay And Cooling Fan Motor -1
G05207609Courtesy of NISSAN MOTOR CO., U.S.A.

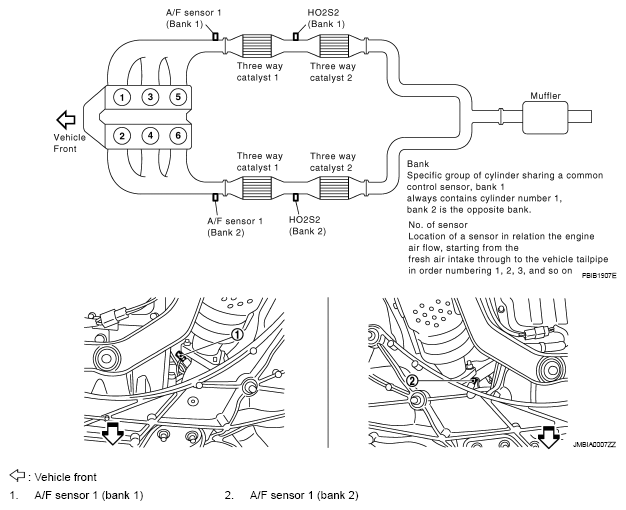

Fig 5: A/F Sensor Diagram
G05207610Courtesy of NISSAN MOTOR CO., U.S.A.

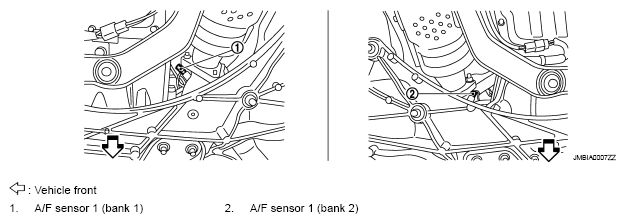

Fig 6: Identifying A/F Sensor Harness Connector
G05207611Courtesy of NISSAN MOTOR CO., U.S.A.

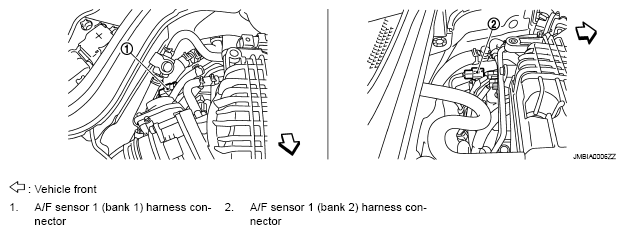

Fig 7: Identifying A/F Sensor Harness Connector
G05207612Courtesy of NISSAN MOTOR CO., U.S.A.

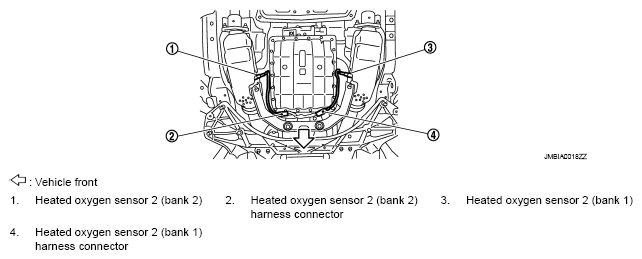

Fig 8: Identifying Heated Oxygen Sensor Harness Connector
G05207613Courtesy of NISSAN MOTOR CO., U.S.A.

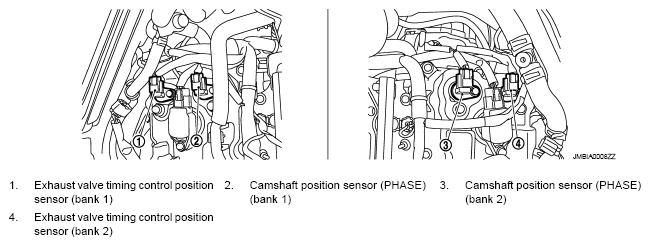

Fig 9: Identifying Exhaust Valve Timing Control Position Sensor
G05207614Courtesy of NISSAN MOTOR CO., U.S.A.

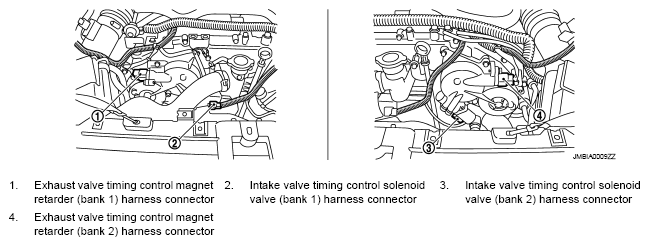

Fig 10: Identifying Exhaust Valve Timing Control Magnet Retarder Harness Connector
G05207615Courtesy of NISSAN MOTOR CO., U.S.A.

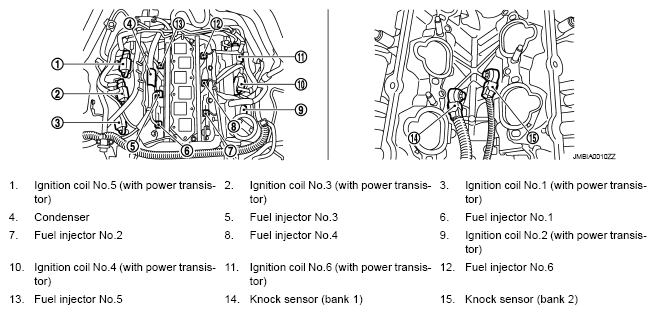

Fig 11: Identifying Condenser, Fuel Injector And Ignition Coil
G05207616Courtesy of NISSAN MOTOR CO., U.S.A.

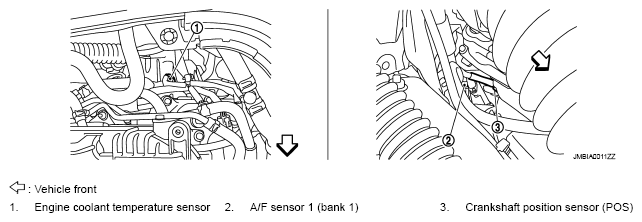

Fig 12: Identifying Engine Coolant Temperature, A/F Sensor And Crankshaft Position Sensors
G05207617Courtesy of NISSAN MOTOR CO., U.S.A.

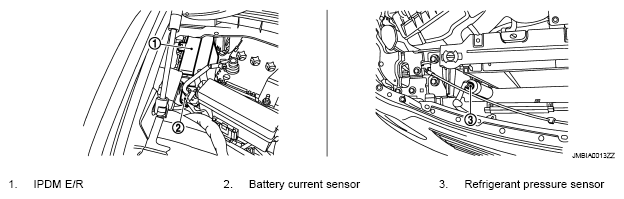

Fig 13: Identifying IPDM E/R, Battery Current Sensor And Refrigerant Pressure Sensor
G05207618Courtesy of NISSAN MOTOR CO., U.S.A.

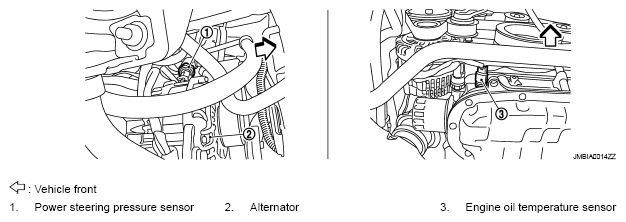

Fig 14: Identifying Power Steering Pressure Sensor, Alternator And Engine Oil Temperature Sensor
G05207619Courtesy of NISSAN MOTOR CO., U.S.A.

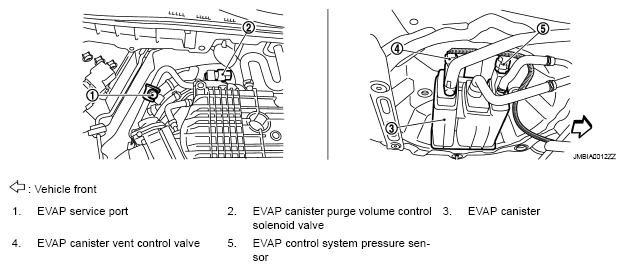

Fig 15: Identifying EVAP Service Port, EVAP Canister And EVAP Control System Pressure Sensor
G05207620Courtesy of NISSAN MOTOR CO., U.S.A.

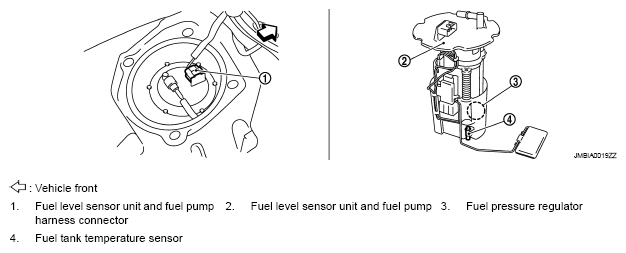

Fig 16: Identifying Fuel Level Sensor Unit And Fuel Pump Harness Connector
G05207621Courtesy of NISSAN MOTOR CO., U.S.A.

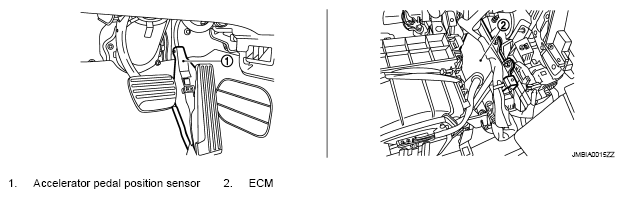

Fig 17: Identifying Accelerate Pedal Position Sensor And ECM
G05207622Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 18: Identifying ICC Steering Switch, Cancel Switch, Main Switch And SET/COAST Switch
G05207623Courtesy of NISSAN MOTOR CO., U.S.A.

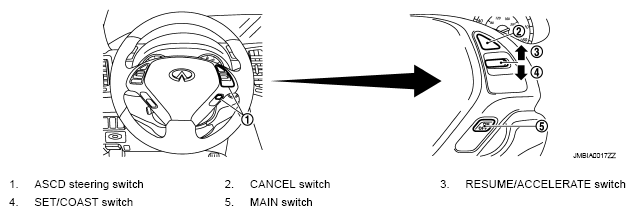

Fig 19: Identifying ASCD Steering Switch And RESUME/ACCELERATE Switch
G05207624Courtesy of NISSAN MOTOR CO., U.S.A.

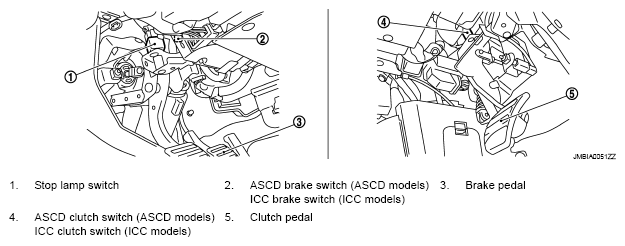

Fig 20: Identifying Stop Lamp Switch, Brake And Clutch Pedal
G05207625Courtesy of NISSAN MOTOR CO., U.S.A.
