Component Parts Location

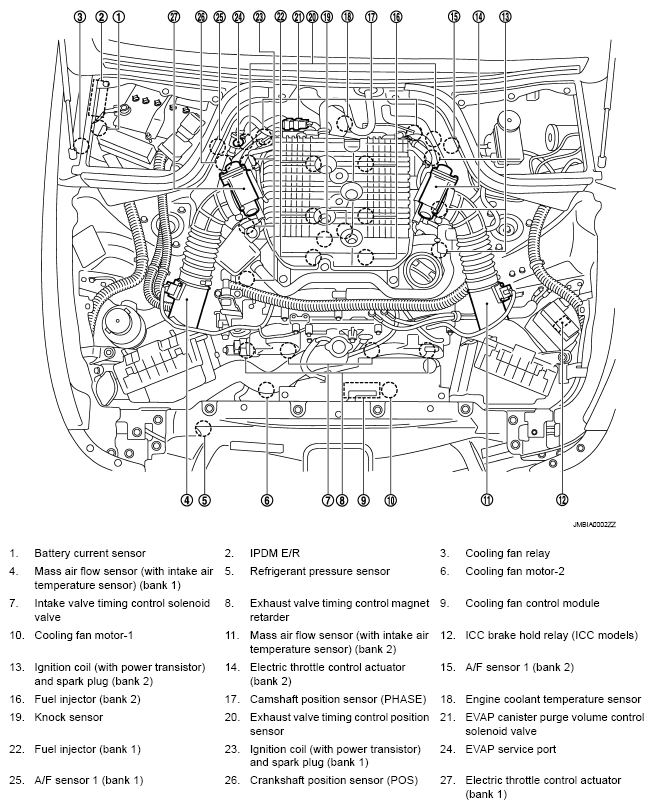

Fig 1: Identifying Intake Valve Timing Control Part Location
G05207647Courtesy of NISSAN MOTOR CO., U.S.A.

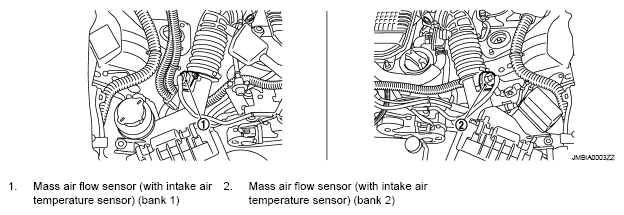

Fig 2: Identifying Mass Air Flow Sensor (With Intake Air Temperature Sensor)
G05207648Courtesy of NISSAN MOTOR CO., U.S.A.

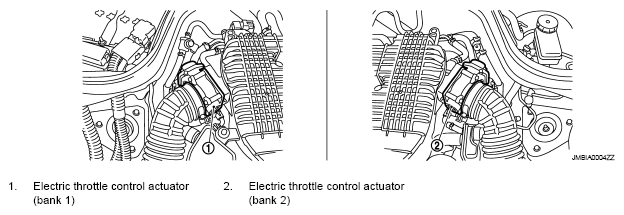

Fig 3: Identifying Electric Throttle Control Actuator
G05207649Courtesy of NISSAN MOTOR CO., U.S.A.

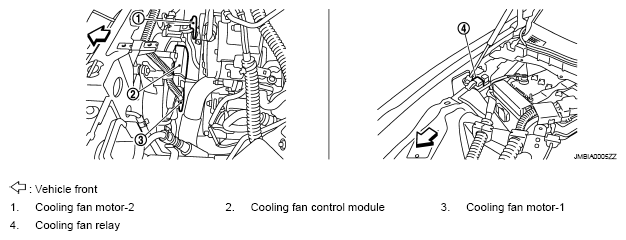

Fig 4: Identifying Cooling Fan Motor, Control Module And Relay
G05207650Courtesy of NISSAN MOTOR CO., U.S.A.

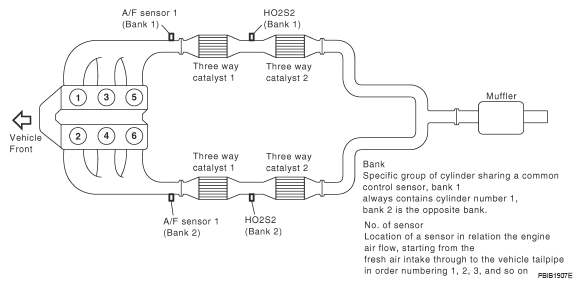

Fig 5: A/F Sensor Diagram
G05207651Courtesy of NISSAN MOTOR CO., U.S.A.

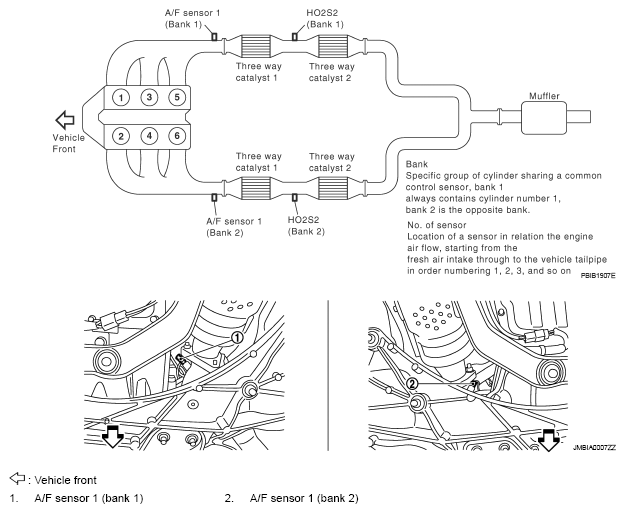

Fig 6: Identifying A/F Sensor
G05207652Courtesy of NISSAN MOTOR CO., U.S.A.

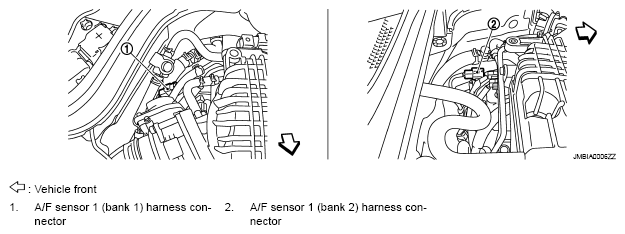

Fig 7: Identifying A/F Sensor Harness Connector
G05207653Courtesy of NISSAN MOTOR CO., U.S.A.

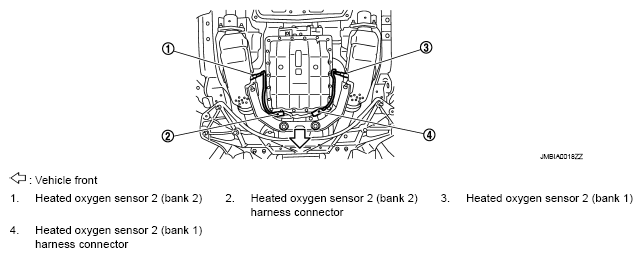

Fig 8: Identifying Heated Oxygen Sensor Harness Connector
G05207654Courtesy of NISSAN MOTOR CO., U.S.A.

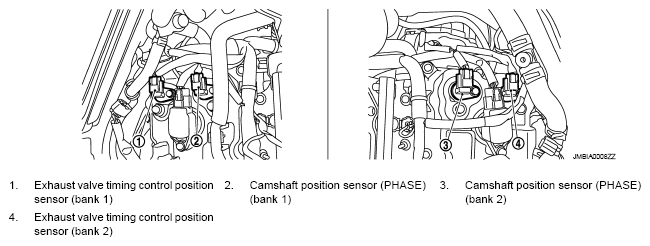

Fig 9: Identifying Exhaust Valve Timing Control Position Sensor
G05207655Courtesy of NISSAN MOTOR CO., U.S.A.

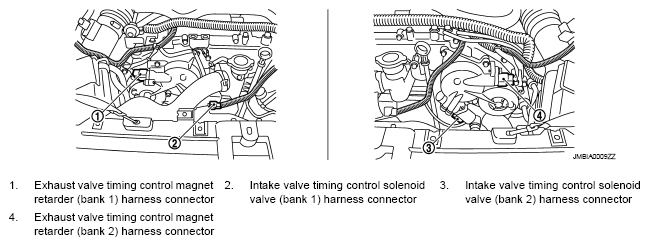

Fig 10: Identifying Exhaust Valve Timing Control Magnet Retarder Harness Connector
G05207656Courtesy of NISSAN MOTOR CO., U.S.A.

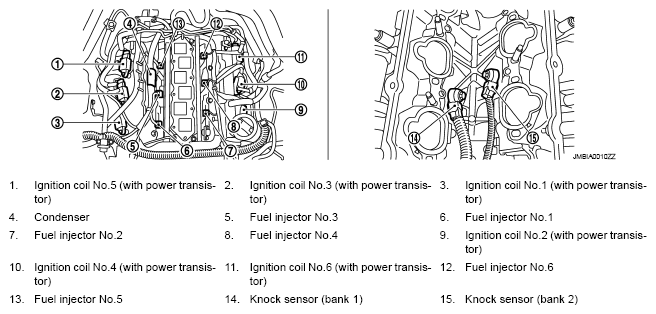

Fig 11: Identifying Condenser, Fuel Injector And Ignition Coil
G05207657Courtesy of NISSAN MOTOR CO., U.S.A.

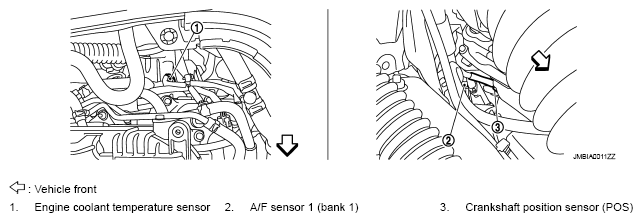

Fig 12: Identifying Engine Coolant Temperature, A/F Sensor And Crankshaft Position Sensors
G05207658Courtesy of NISSAN MOTOR CO., U.S.A.

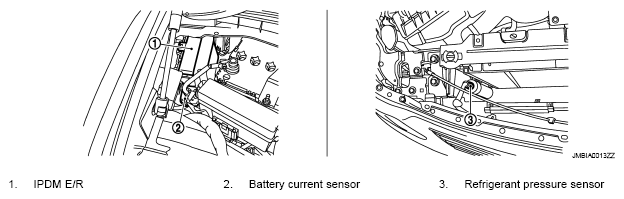

Fig 13: Identifying IPDM E/R, Battery Current Sensor And Refrigerant Pressure Sensor
G05207659Courtesy of NISSAN MOTOR CO., U.S.A.

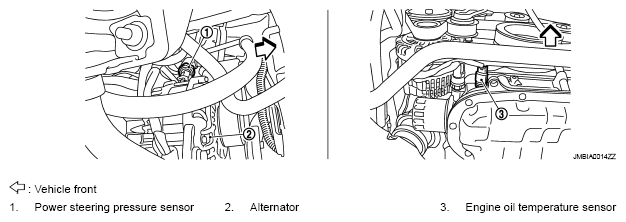

Fig 14: Identifying Power Steering Pressure Sensor, Alternator And Engine Oil Temperature Sensor
G05207660Courtesy of NISSAN MOTOR CO., U.S.A.

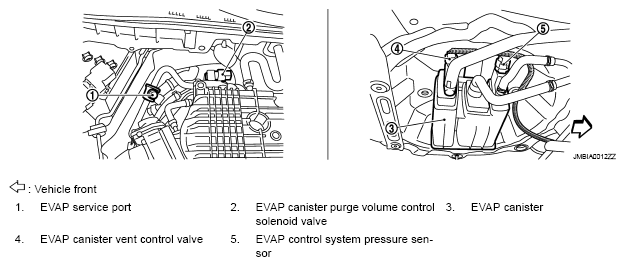

Fig 15: Identifying EVAP Service Port, EVAP Canister And EVAP Control System Pressure Sensor
G05207661Courtesy of NISSAN MOTOR CO., U.S.A.

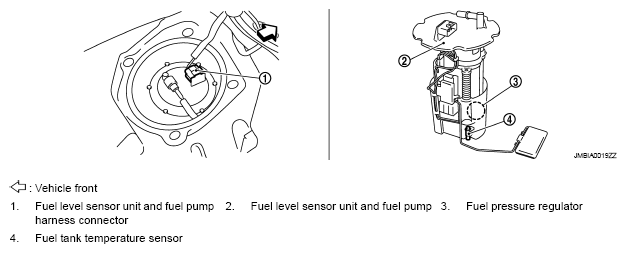

Fig 16: Identifying Fuel Level Sensor Unit And Fuel Pump Harness Connector
G05207662Courtesy of NISSAN MOTOR CO., U.S.A.

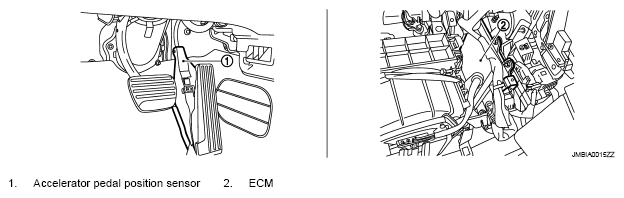

Fig 17: Identifying Accelerator Pedal Position Sensor And ECM
G05207663Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 18: Identifying ICC Steering Switch, Cancel Switch, Main Switch And SET/COAST Switch
G05207664Courtesy of NISSAN MOTOR CO., U.S.A.

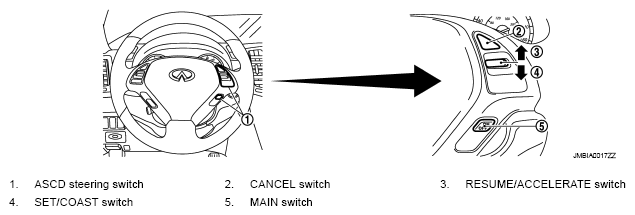

Fig 19: Identifying ASCD Steering Switch And RESUME/ACCELERATE Switch
G05207665Courtesy of NISSAN MOTOR CO., U.S.A.

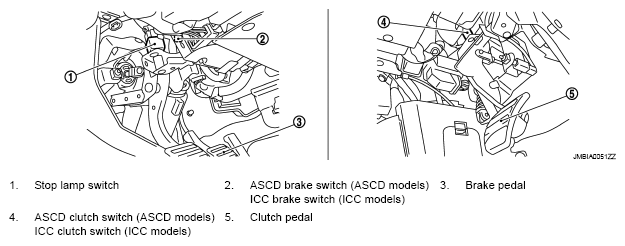

Fig 20: Identifying Stop Lamp Switch, Brake And Clutch Pedal
G05207666Courtesy of NISSAN MOTOR CO., U.S.A.
