Component Parts Location

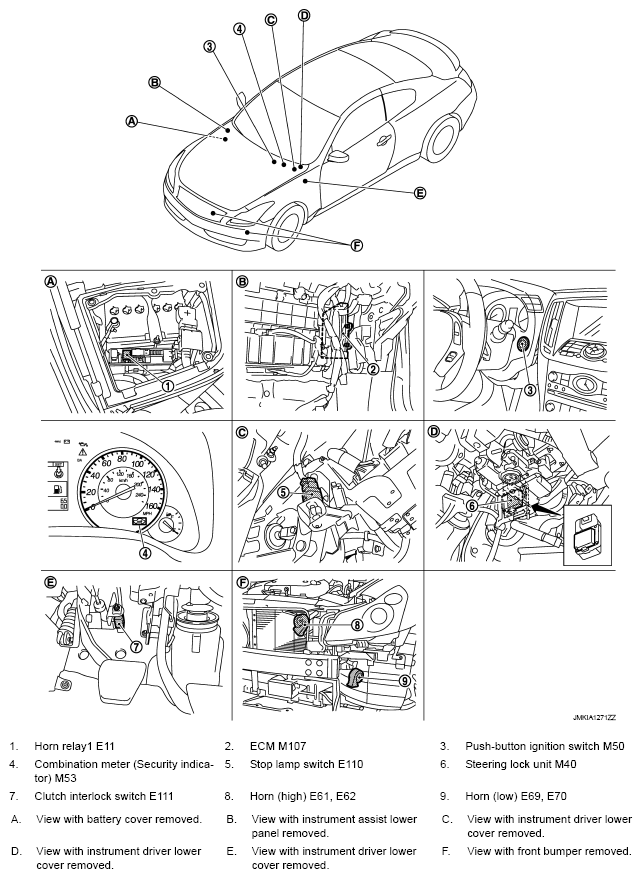

Fig 1: Identifying Engine Start Components (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

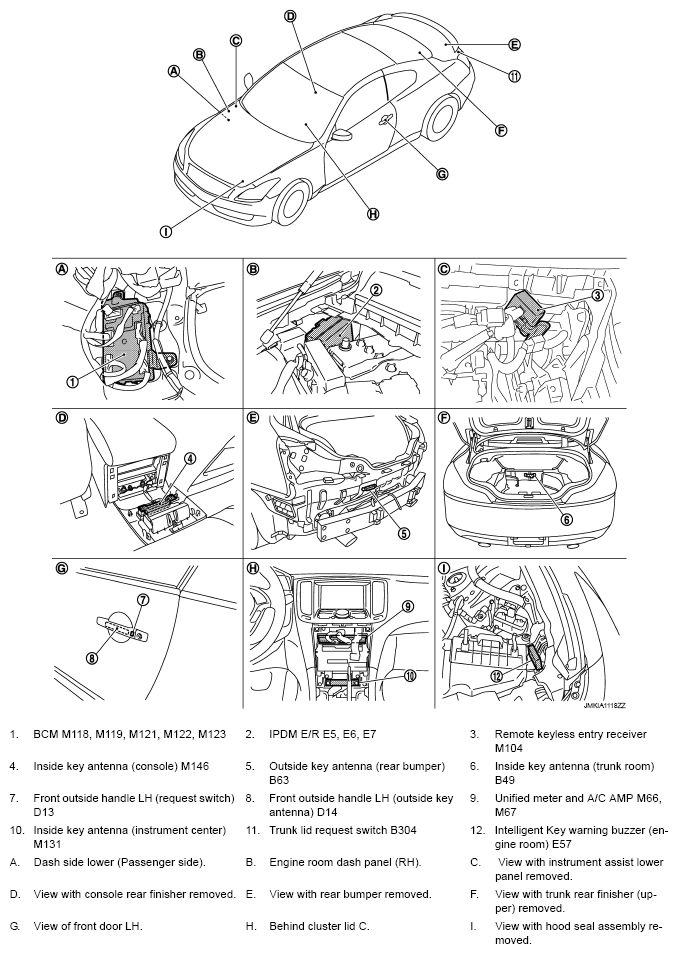

Fig 2: Identifying Engine Start Components (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

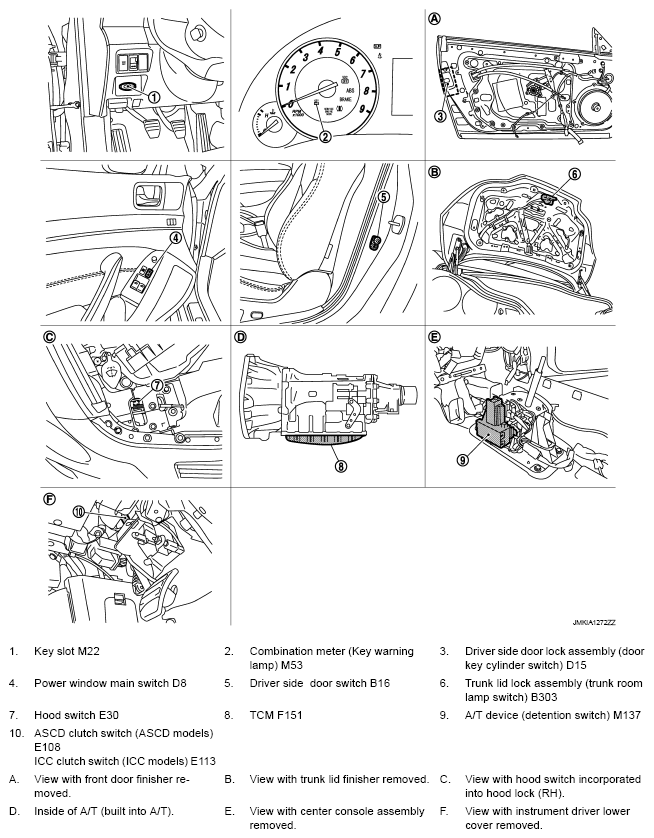

Fig 3: Identifying Engine Start Components (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
