Component Parts Location

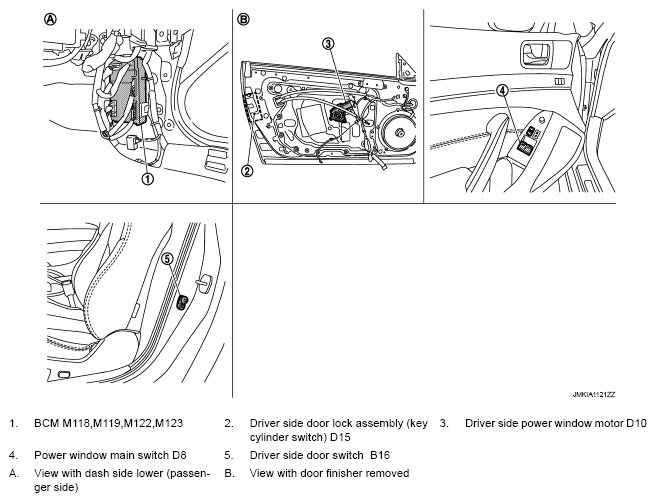

Fig 1: Identifying Power Window System Components Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
