Component Parts Location

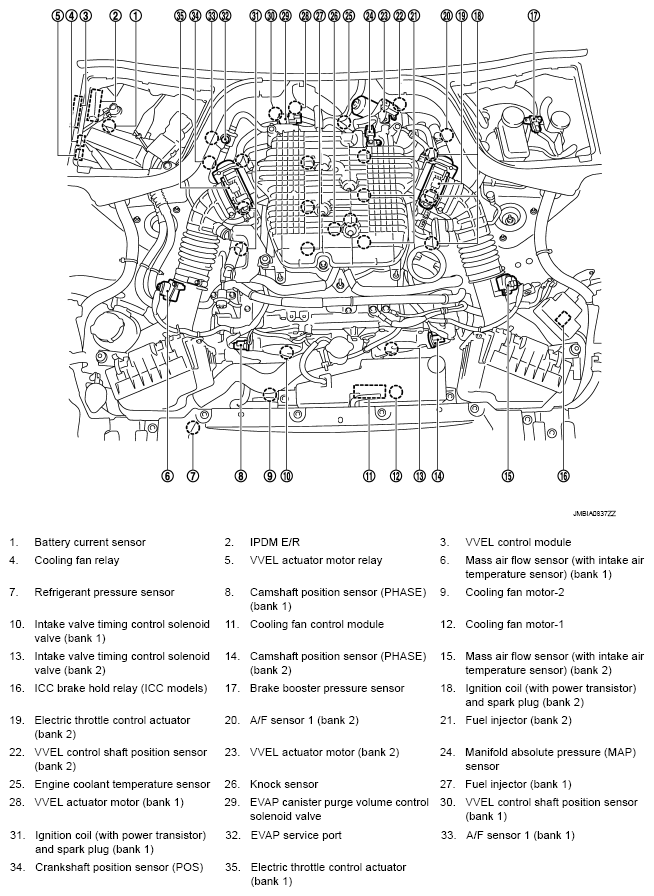

Fig 1: Identifying Automatic Speed Control Device (ASCD) System Component Location (1 Of 21)

G05733253

Courtesy of NISSAN MOTOR CO., U.S.A.

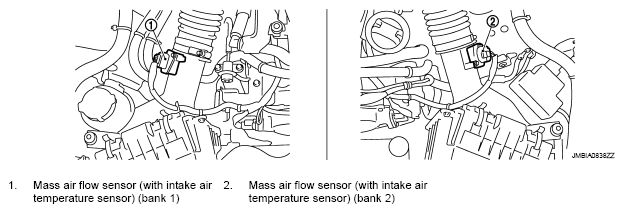

Fig 2: Identifying Automatic Speed Control Device (ASCD) System Component Location (2 Of 21)

G05733254

Courtesy of NISSAN MOTOR CO., U.S.A.

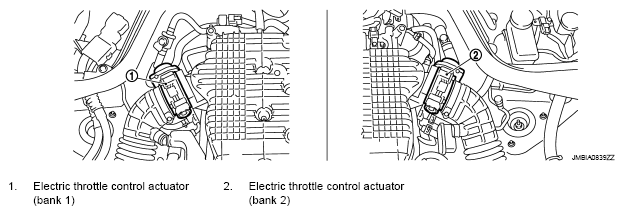

Fig 3: Identifying Automatic Speed Control Device (ASCD) System Component Location (3 Of 21)

G05733255

Courtesy of NISSAN MOTOR CO., U.S.A.

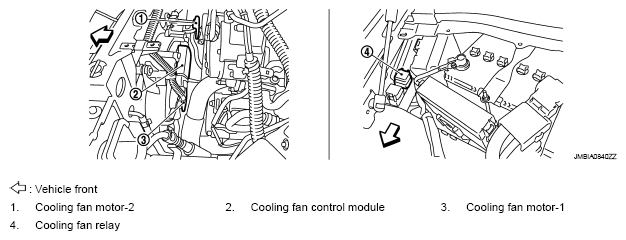

Fig 4: Identifying Automatic Speed Control Device (ASCD) System Component Location (4 Of 21)

G05733256

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Automatic Speed Control Device (ASCD) System Component Location (5 Of 21)

G05216249

Courtesy of NISSAN MOTOR CO., U.S.A.

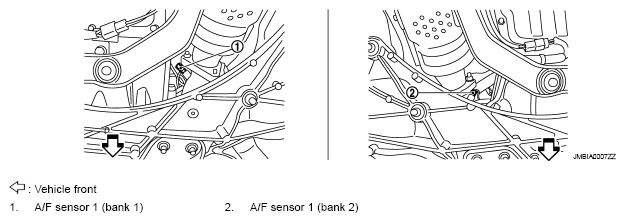

Fig 6: Identifying Automatic Speed Control Device (ASCD) System Component Location (6 Of 21)

G05733258

Courtesy of NISSAN MOTOR CO., U.S.A.

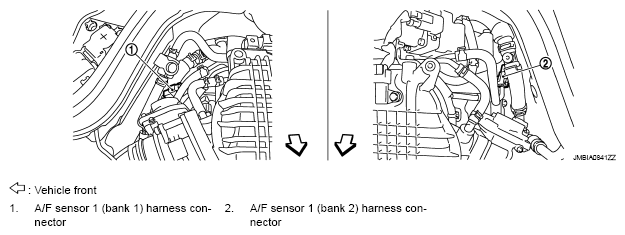

Fig 7: Identifying Automatic Speed Control Device (ASCD) System Component Location (7 Of 21)

G05733259

Courtesy of NISSAN MOTOR CO., U.S.A.

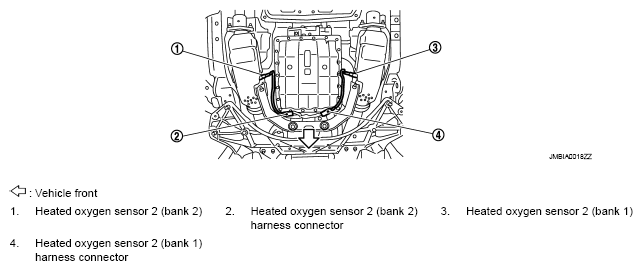

Fig 8: Identifying Automatic Speed Control Device (ASCD) System Component Location (8 Of 21)

G05733260

Courtesy of NISSAN MOTOR CO., U.S.A.

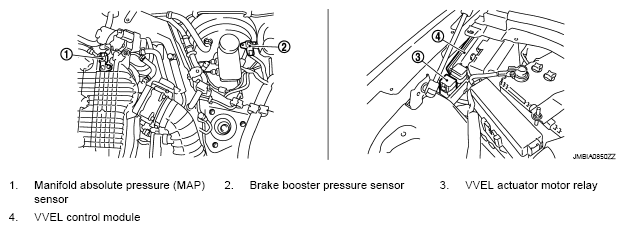

Fig 9: Identifying Automatic Speed Control Device (ASCD) System Component Location (9 Of 21)

G05733261

Courtesy of NISSAN MOTOR CO., U.S.A.

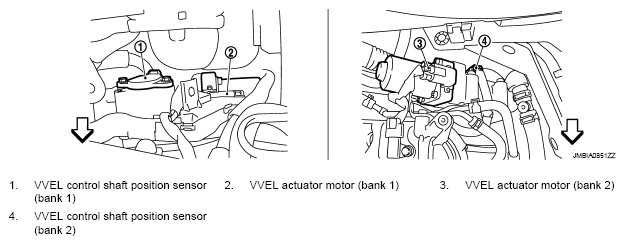

Fig 10: Identifying Automatic Speed Control Device (ASCD) System Component Location (10 Of 21)

G05733262

Courtesy of NISSAN MOTOR CO., U.S.A.

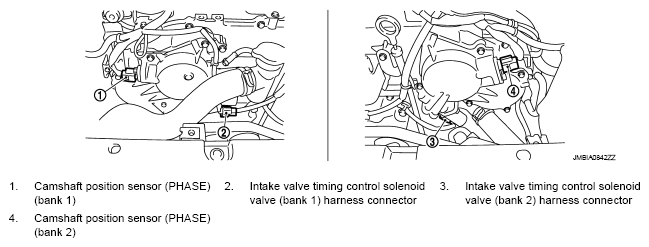

Fig 11: Identifying Automatic Speed Control Device (ASCD) System Component Location (11 Of 21)

G05733263

Courtesy of NISSAN MOTOR CO., U.S.A.

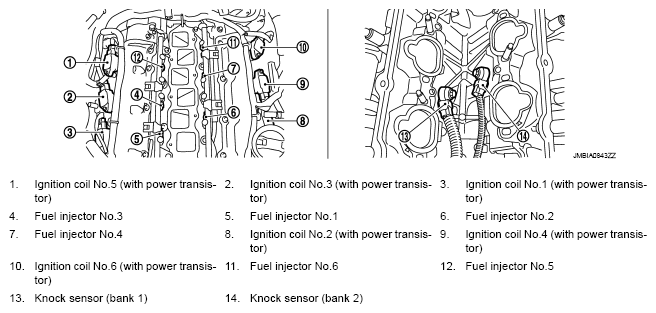

Fig 12: Identifying Automatic Speed Control Device (ASCD) System Component Location (12 Of 21)

G05733264

Courtesy of NISSAN MOTOR CO., U.S.A.

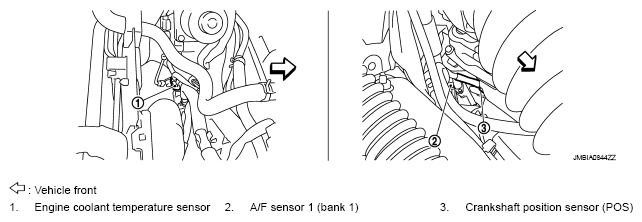

Fig 13: Identifying Automatic Speed Control Device (ASCD) System Component Location (13 Of 21)

G05733265

Courtesy of NISSAN MOTOR CO., U.S.A.

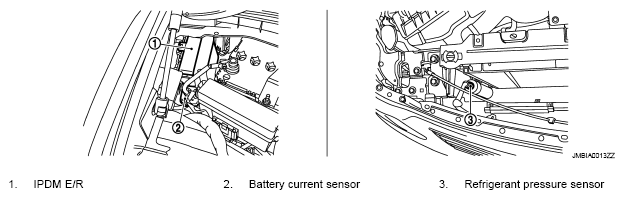

Fig 14: Identifying Automatic Speed Control Device (ASCD) System Component Location (14 Of 21)

G05733266

Courtesy of NISSAN MOTOR CO., U.S.A.

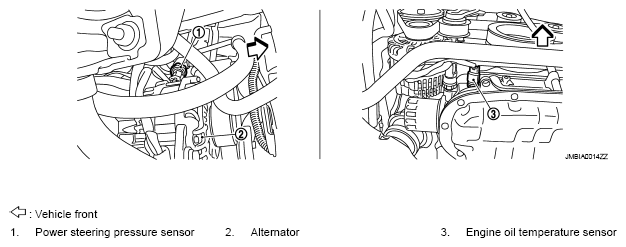

Fig 15: Identifying Automatic Speed Control Device (ASCD) System Component Location (15 Of 21)

G05733267

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Automatic Speed Control Device (ASCD) System Component Location (16 Of 21)

G05733268

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Automatic Speed Control Device (ASCD) System Component Location (17 Of 21)

G05733269

Courtesy of NISSAN MOTOR CO., U.S.A.

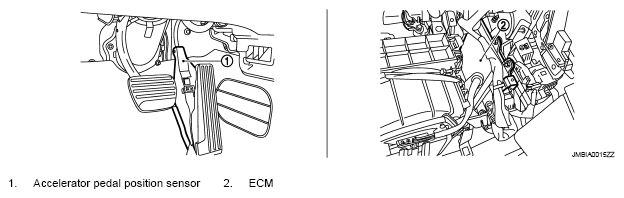

Fig 18: Identifying Automatic Speed Control Device (ASCD) System Component Location (18 Of 21)

G05733270

Courtesy of NISSAN MOTOR CO., U.S.A.

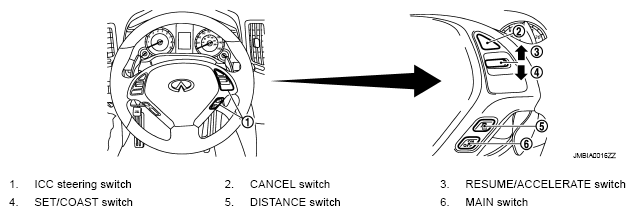

Fig 19: Identifying Automatic Speed Control Device (ASCD) System Component Location (19 Of 21)

G05733271

Courtesy of NISSAN MOTOR CO., U.S.A.

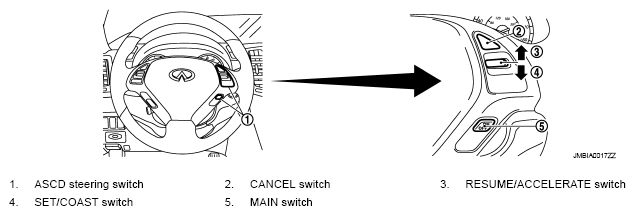

Fig 20: Identifying Automatic Speed Control Device (ASCD) System Component Location (20 Of 21)

G05733272

Courtesy of NISSAN MOTOR CO., U.S.A.

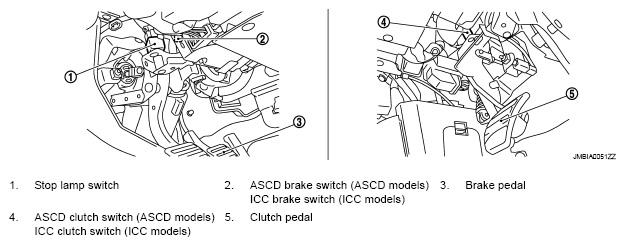

Fig 21: Identifying Automatic Speed Control Device (ASCD) System Component Location (21 Of 21)

G05733273

Courtesy of NISSAN MOTOR CO., U.S.A.
